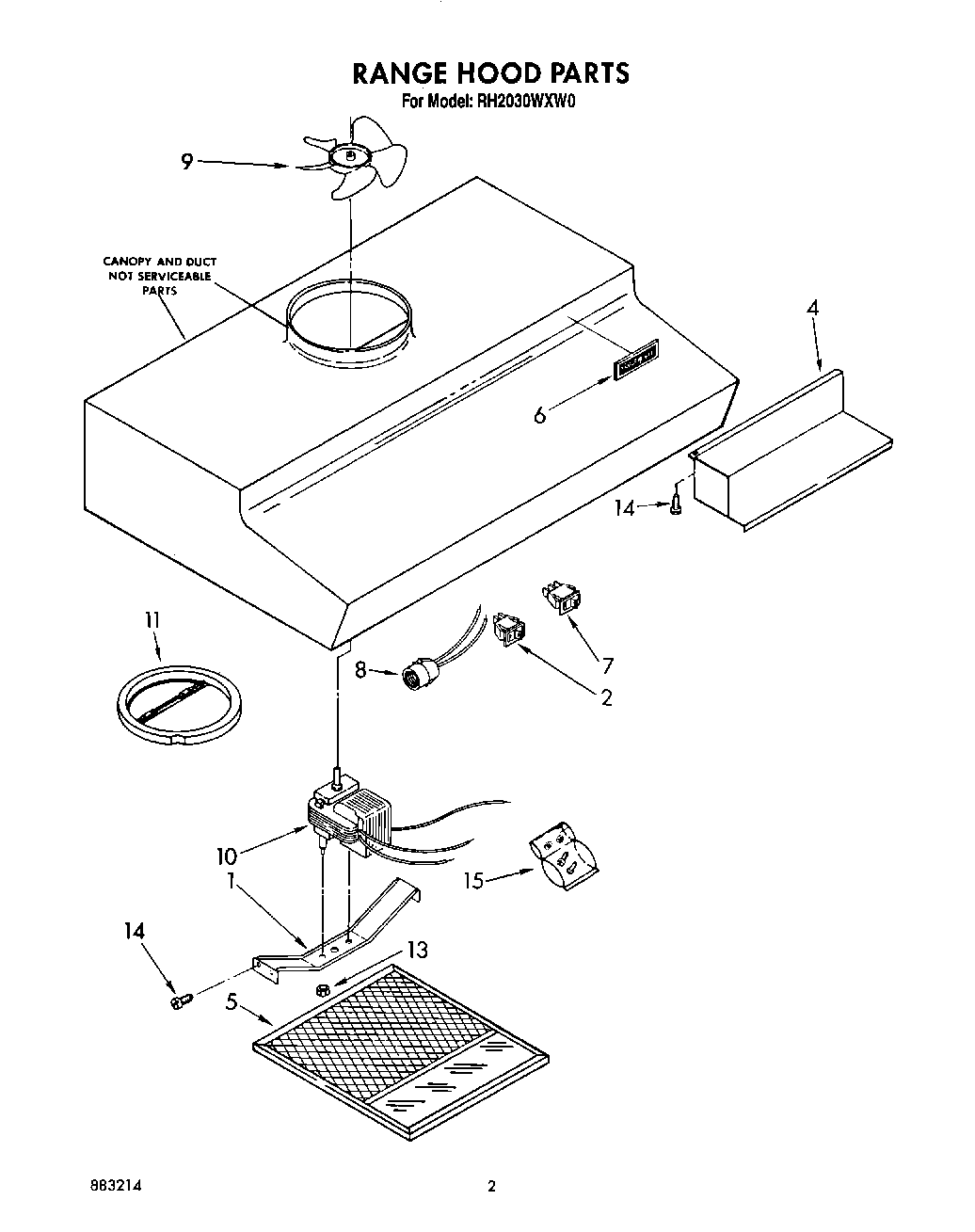

RH2030WXW0 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Instructions, Installation & Operating
	Order Blank, Filter
	Wiring Diagram
1	Bracket, Motor
2	W10673703 Whirlpool Rocker Switch
2	Switch, Light (White)
4	Cover, Wiring (Stainless Steel)
4	Cover, Wiring (Almond)
4	Cover, wiring (White)
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Black)
6	Nameplate (White)
7	Switch, Fan (Black Model)
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Damper Assembly
13	WP488130 Whirlpool Air Conditioner Nut
14	WP489069 Whirlpool Compactor Screw
15	Installation, Hardware
