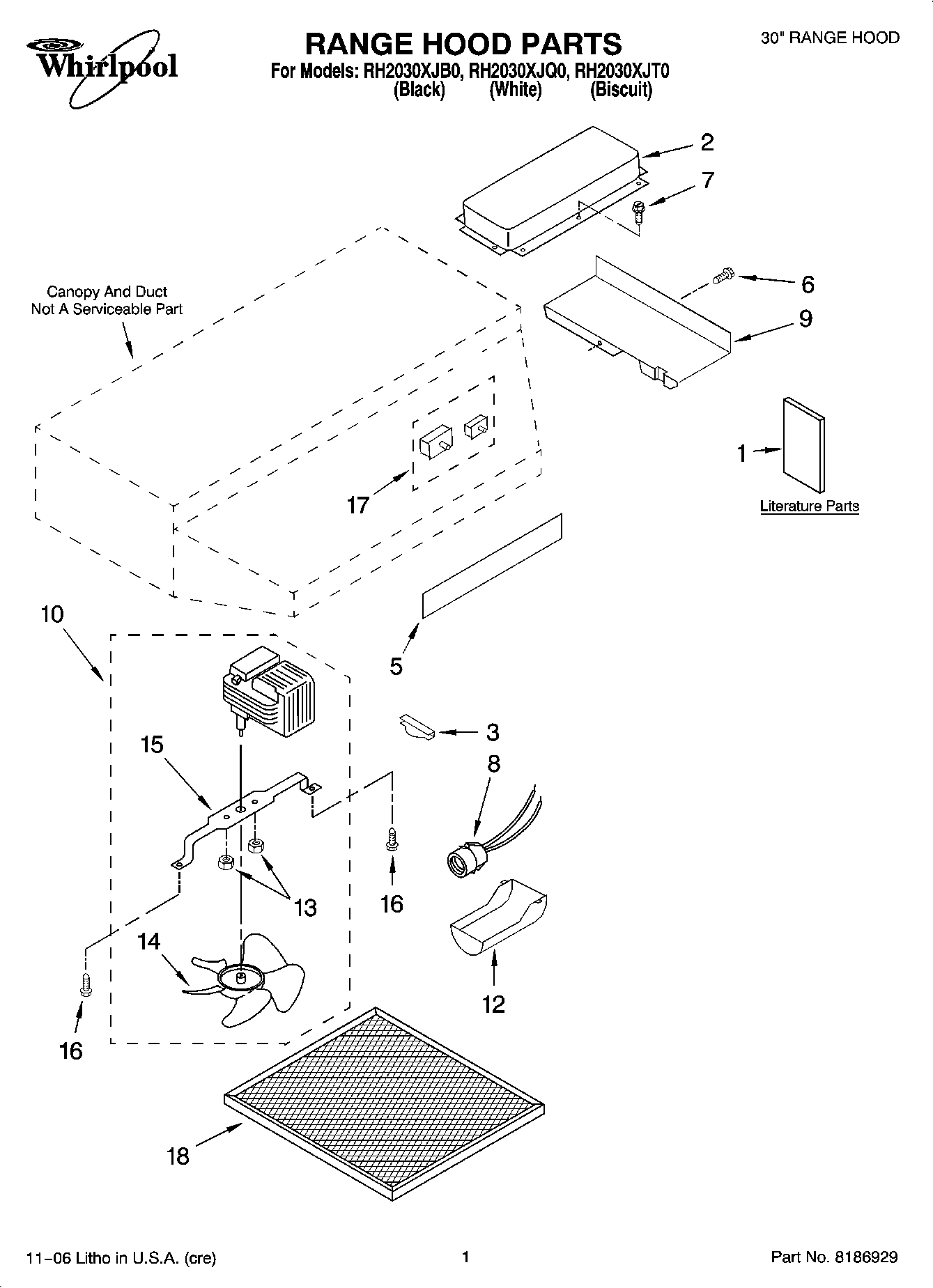

RH2030XJB0 01 – RANGE HOOD PARTS

Products

Position	Product
1	Use & Care Guide
2	Damper
3	Support/Retainer (Filter)
5	Nameplate (Black)
5	Nameplate (White)
5	Nameplate (Biscuit)
6	Screw
7	Screw
8	Receptacle, Light Bulb not incl-75W
9	Cover, Wiring
10	Motor/Fan Assembly
12	WP8186930 Whirlpool Light Lens Assembly
13	NUT
14	Blade, Fan
15	Bracket, Motor
16	Screw
17	Switch Assy. (Includes Fan and Light Switches) (Biscuit)
17	WP8186941 Whirlpool Rotary Switch
17	W10673703 Whirlpool Rocker Switch
18	4378581 Whirlpool Microwave Range Vent Hood Charcoal Filter
