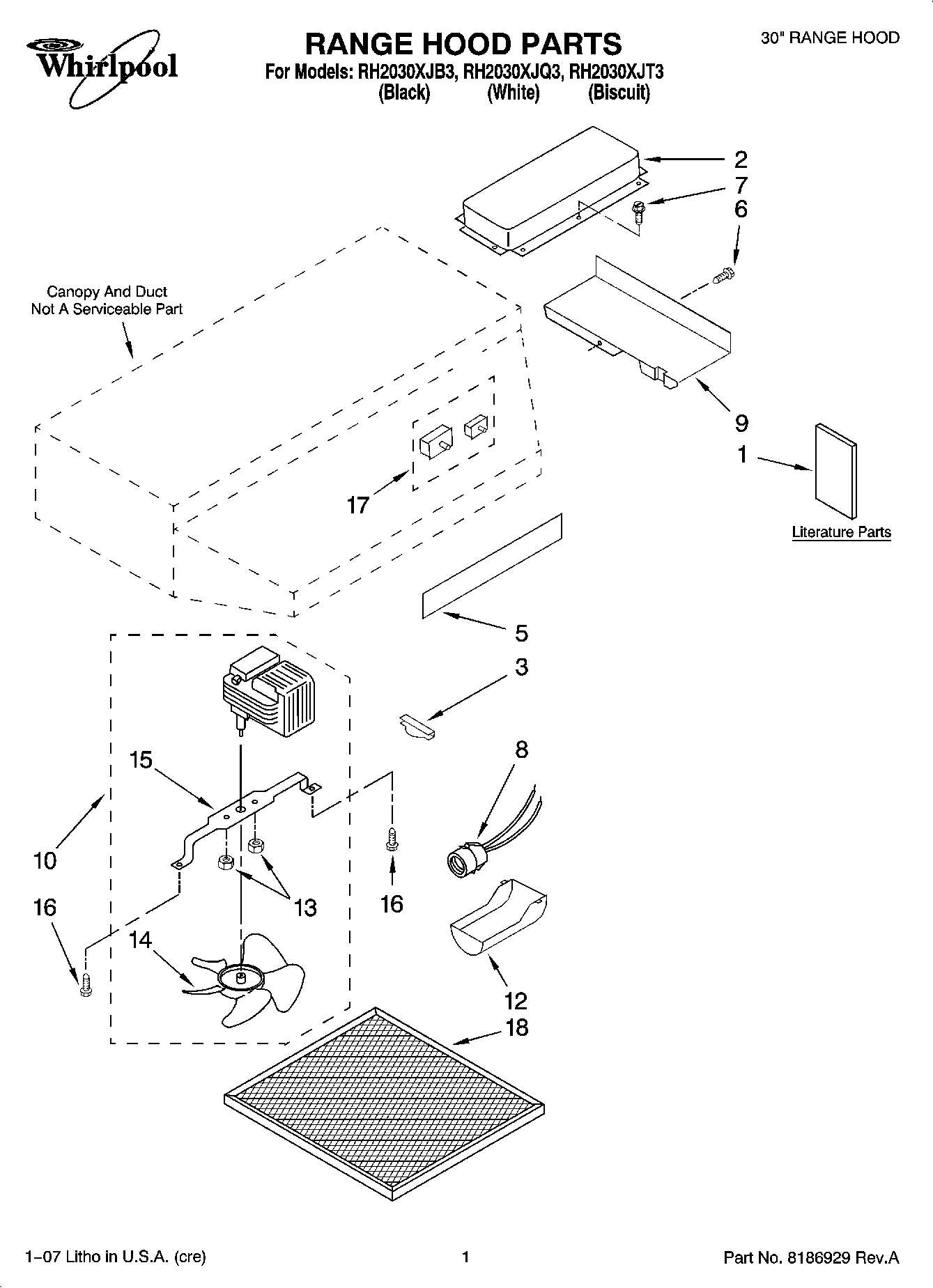

RH2030XJQ3 01 – RANGE HOOD PARTS

Products

PositionProduct
1Use & Care Guide
2Damper
3Support/Retainer (Filter)
5Nameplate (Biscuit)
5Nameplate (White)
5Nameplate (Black)
6Screw
7Screw
8Receptacle, Light Bulb not incl-75W
9Cover, Wiring
10Motor/Fan Assembly
12WP8186930 Whirlpool Light Lens Assembly
13NUT
14Blade, Fan
15Bracket, Motor
16Screw
17WP8186941 Whirlpool Rotary Switch
17Switch Assy. (Includes Fan and Light Switches) (Biscuit)
17W10673703 Whirlpool Rocker Switch
184378581 Whirlpool Microwave Range Vent Hood Charcoal Filter
