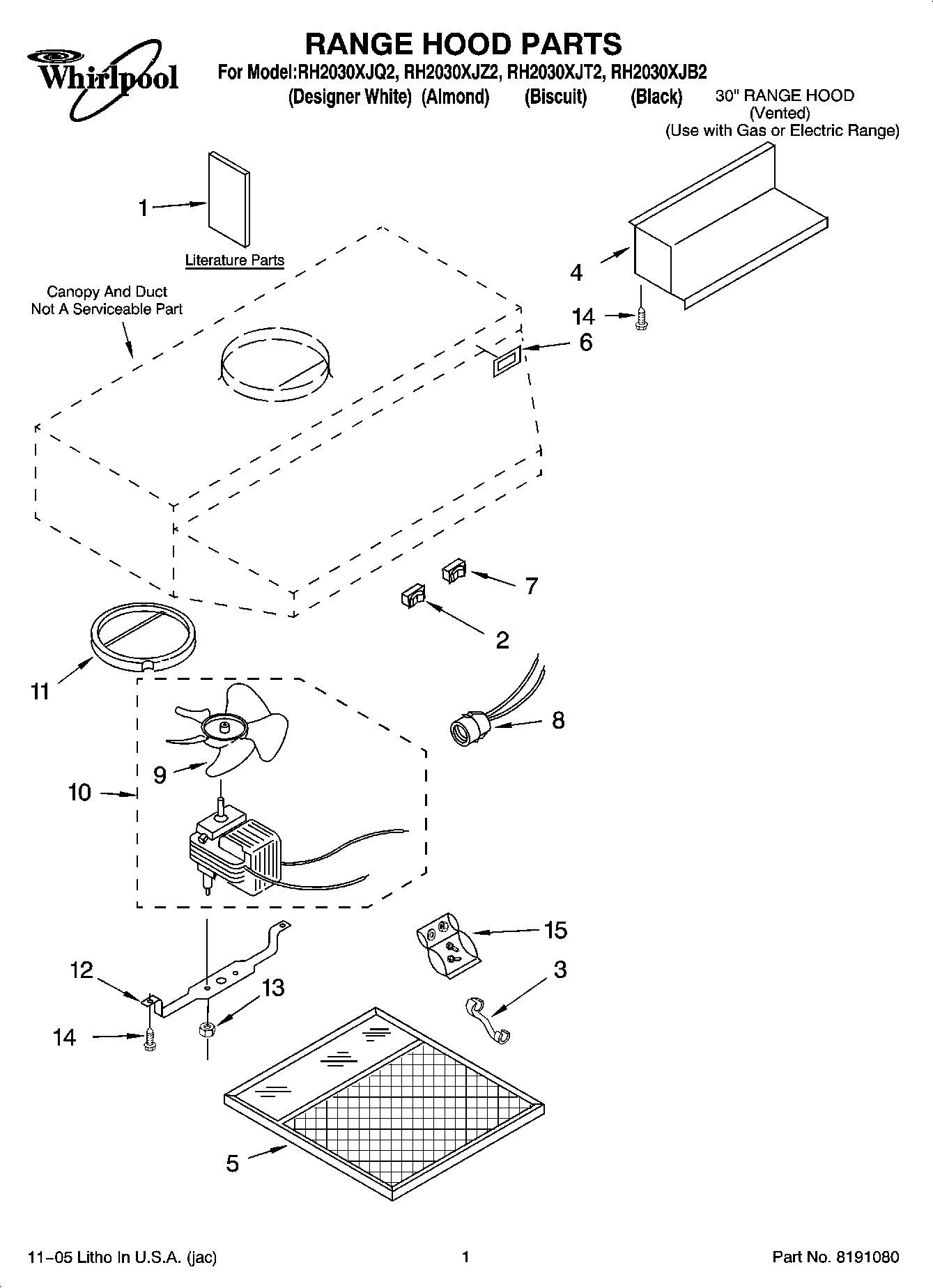

RH2030XJT2 01 – RANGE HOOD PARTS

Products

Position	Product
	30“ RANGE HOOD (Vented) (Use with Gas or Electric Range)
1	Instructions, Inst/Use & Care
1	Wiring Diagram
1	Order Blank, Filter
2	Switch, Light (White)
2	Switch, Light (Black)
2	Switch, Light (Biscuit)
2	Switch, Light (Almond)
3	Bushing
4	Cover, Wiring (Stainless Steel)
4	Cover, Wiring (Almond)
4	Cover, wiring (White)
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Black)
6	Nameplate (Almond)
6	Nameplate (White)
6	Nameplate (Biscuit)
7	Switch, Fan (Almond)
7	Switch, Fan (Black)
7	Switch, Fan (White)
7	Switch, Fan (Biscuit)
8	Receptacle, Light
9	Blade, Fan
10	Motor/Fan Assembly
11	Damper Assembly
12	Bracket, Motor
13	WP488130 Whirlpool Air Conditioner Nut
14	WP489069 Whirlpool Compactor Screw
15	Installation, Hardware
