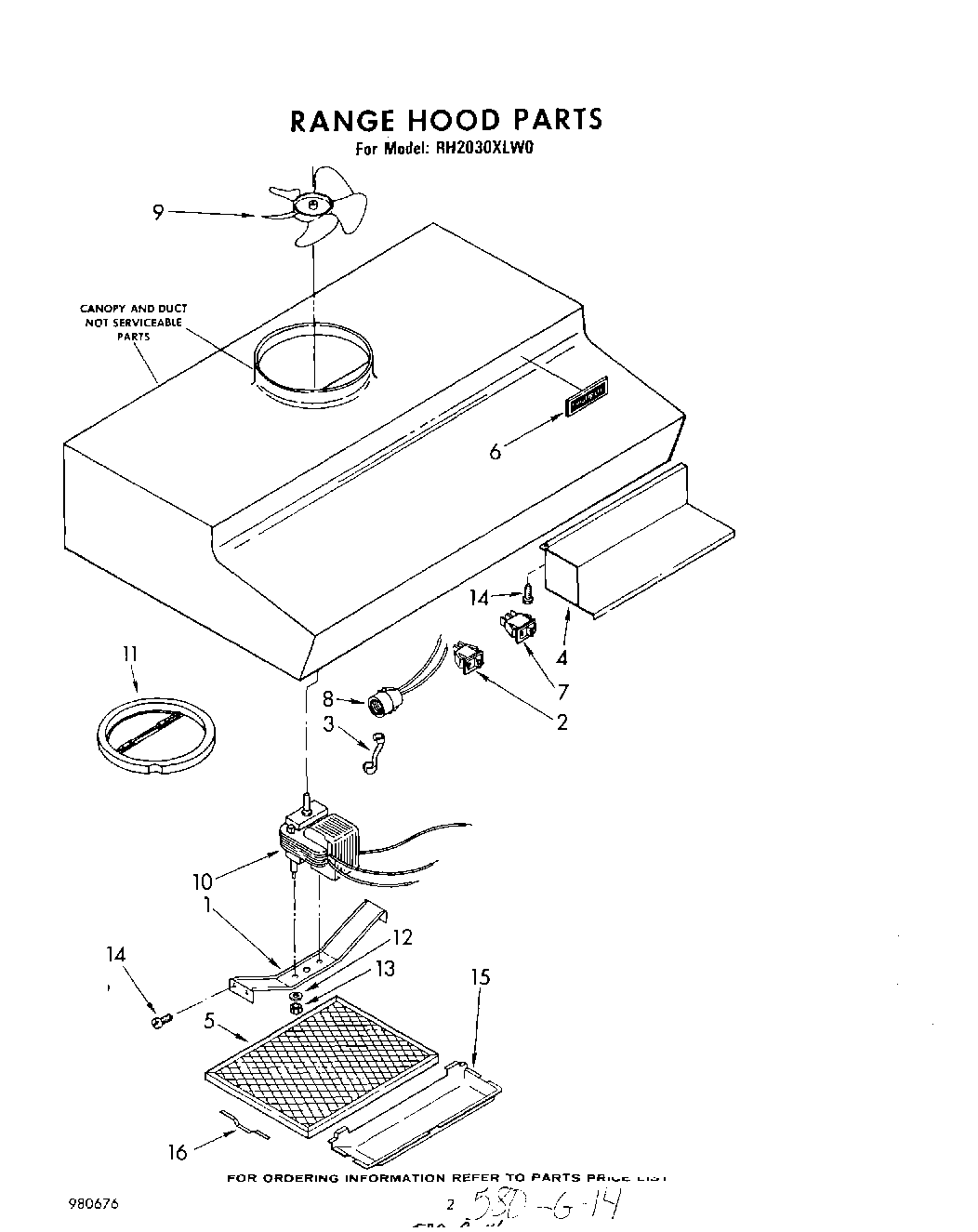

RH2030XLW0 02 – SECTION

Products

PositionProduct
List, Repair Parts
Instructions, Installation & Operating
Order Blank, Filter
1Bracket, Motor
2W10673703 Whirlpool Rocker Switch
3Bushing
4Cover, wiring (New Avocado)
4Cover, Wiring (Platinum)
4Cover, Wiring (Toast)
4Cover, Wiring (Almond)
4Cover, Wiring (White)
4Cover, wiring (Golden Harvest)
4Cover, wiring (Coffee)
5Filter, Grease
6Nameplate
7Switch, Fan
8Receptacle, Light
9Blade, Fan
10Motor, 2-Speed
11Damper Assembly
12Washer, No. 8 (2)
13WP486255 Whirlpool Air Conditioner Nut
14WP489069 Whirlpool Compactor Screw
15Light Lens
16Spring, Filter
