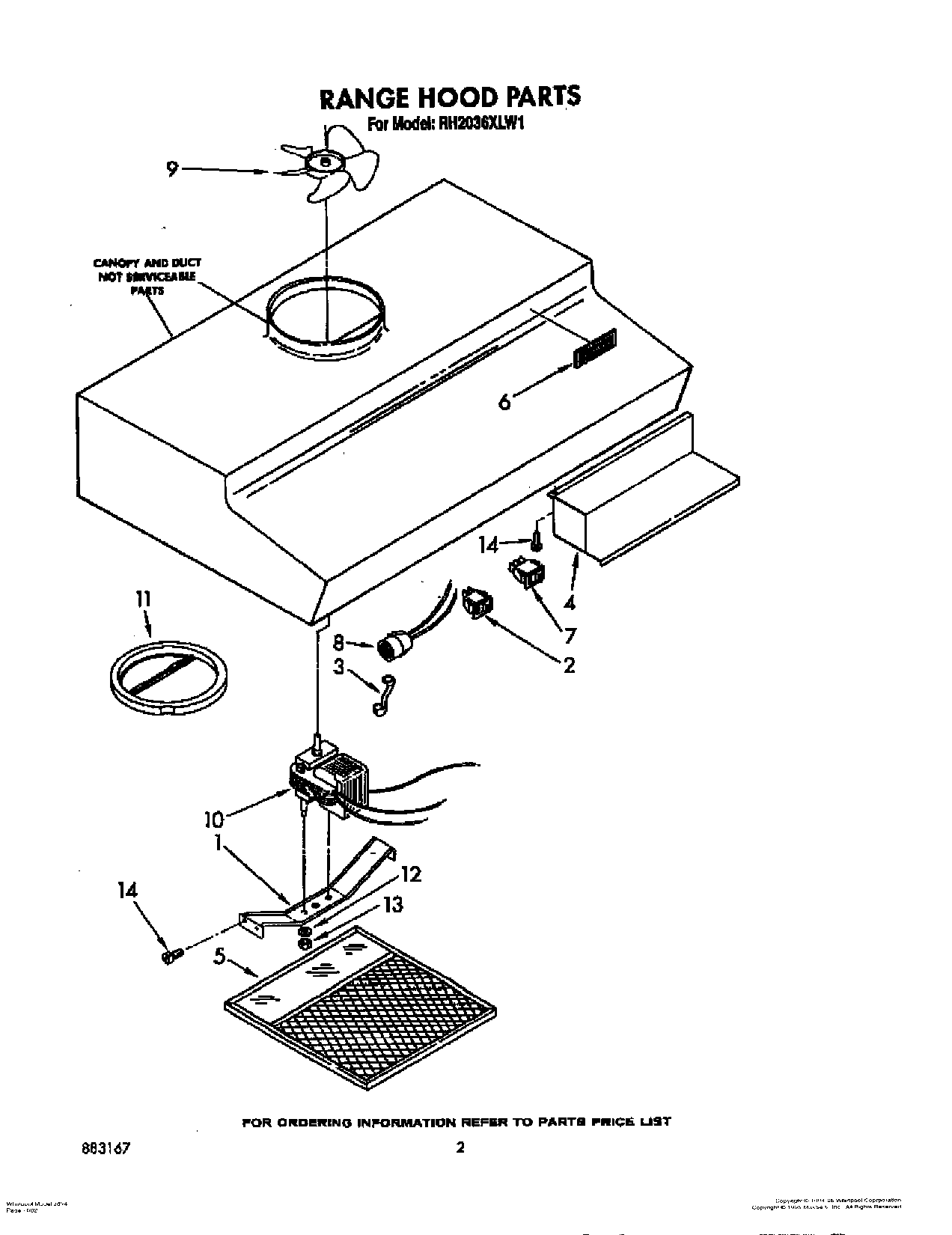

RH2036XLW1 02 – SECTION

Products

PositionProduct
List, Repair Parts
Instructions, Installation & Operating
Order Blank, Filter
1Bracket, Motor
2W10673703 Whirlpool Rocker Switch
3Bushing
4Cover, Wiring (Stainless Steel)
4Cover, Wiring (Almond)
4Cover, wiring (White)
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate
7Switch, Fan
8Receptacle, Light
9Blade, Fan
10Motor, 2-Speed
11Damper Assembly
12Washer, No. 8 (2)
13WP486255 Whirlpool Air Conditioner Nut
14WP489069 Whirlpool Compactor Screw
