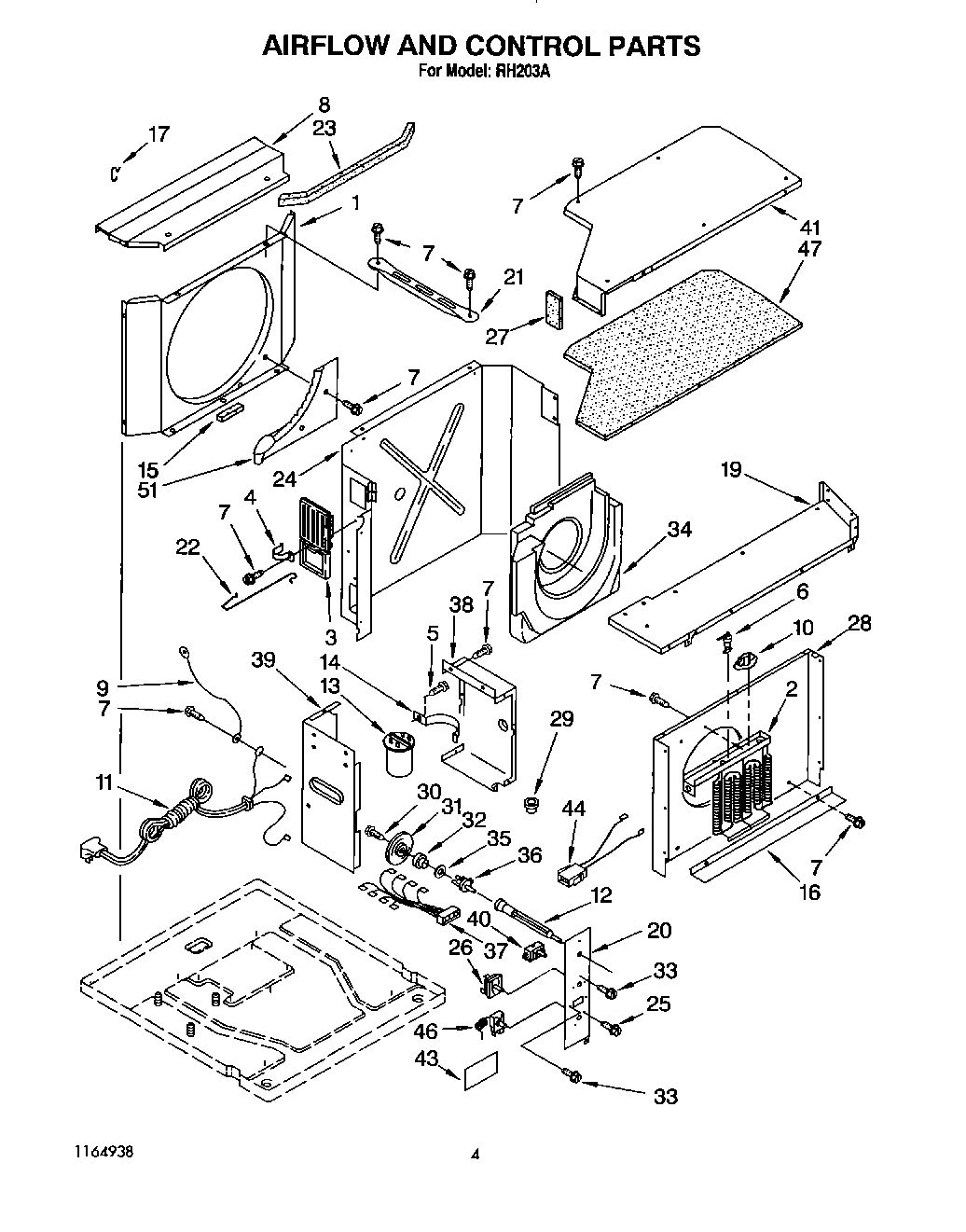

RH203A 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Heating, Element
3	Door, Air (2)
4	Spring, Door (2)
5	WP489069 Whirlpool Compactor Screw
6	Fuse Link Asy
8	Top, Condenser
9	Wire, Ground
10	Limit Switch
11	Cable, Appliance
12	Control, Shaft
13	Capacitor
14	WP1160674 Whirlpool Bracket
15	Seal, Condensate Cup
16	Sheild, Heat
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control Exhaust
23	Seal, Shroud
24	Dividing Wall
25	Screw, 8 x 3/8
26	Switch Rotary
27	Seal, Anti-Rub
28	Shroud Assembly, Evaporator
29	Cup, Condensate Drain
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring – Control Box
38	Control Box (R.S.)
39	Control Box (L.S.)
40	Control, Temp.
41	Cover, Top
43	Spacer
44	Harness, Heater
46	Control, Temperature
47	Insulation, Top Cover
51	Cup, Condensate
