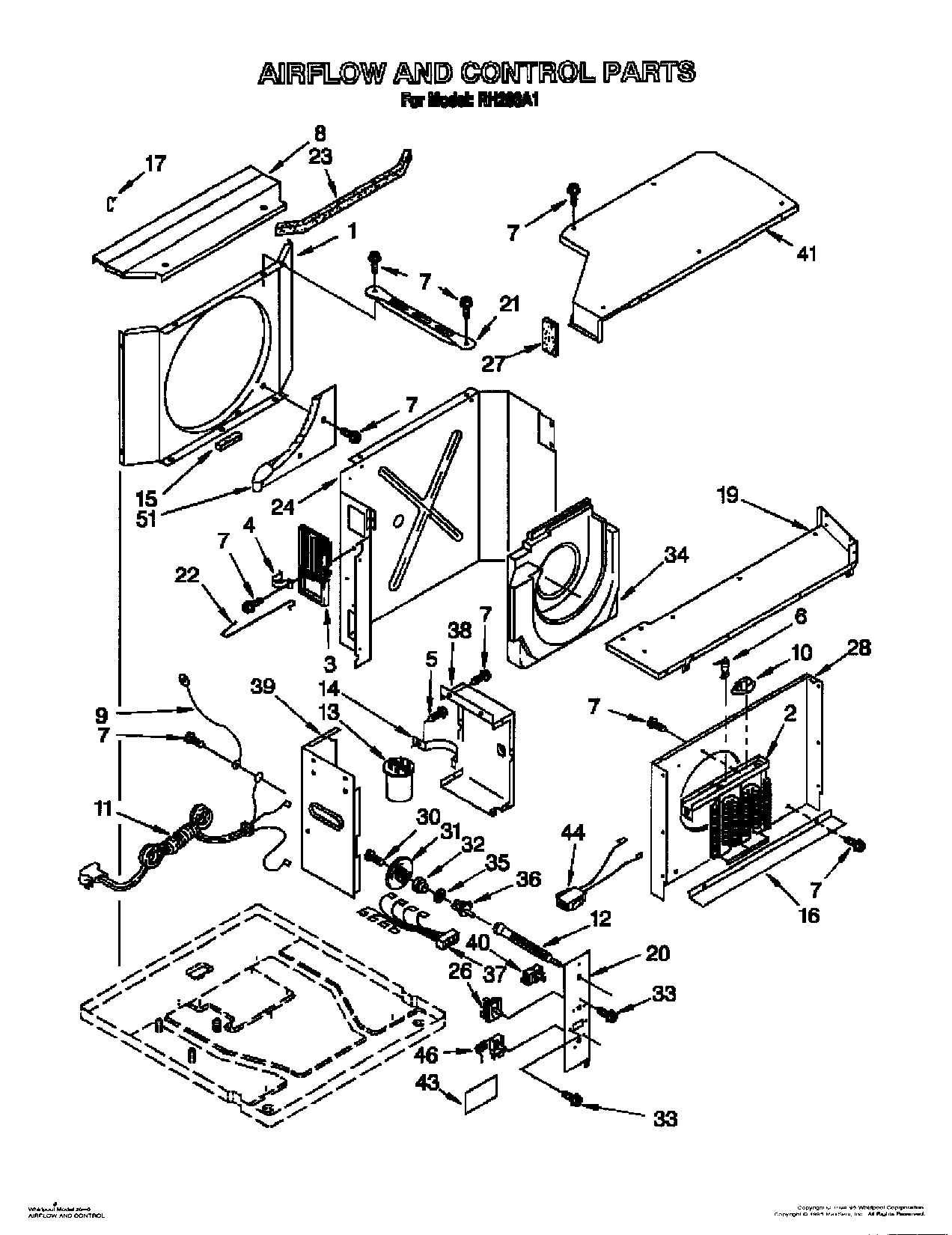

RH203A1 03 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Heating, Element
3	Door, Air (2)
4	Spring, Door (2)
5	Screw No.8 – 5/8
6	Fuse Link Asy
7	WP489069 Whirlpool Compactor Screw
8	Top, Condenser
9	Wire, Ground
10	Limit Switch
11	Cable, Appliance
12	Control, Shaft
13	Capacitor
14	Bracket, Capacitor
15	Seal, Condensate Cup
16	Sheild, Heat
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control Exhaust
23	Seal, Shroud
24	Dividing Wall
26	Switch Rotary
27	Seal, Anti-Rub
28	Shroud Assembly, Evaporator
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring – Control Box
38	Control Box (R.S.)
39	Control Box (L.S.)
40	Control, Temp.
41	Cover, Top
43	Spacer
44	Harness, Heater
46	Control, Temperature
51	Cup, Condensate
