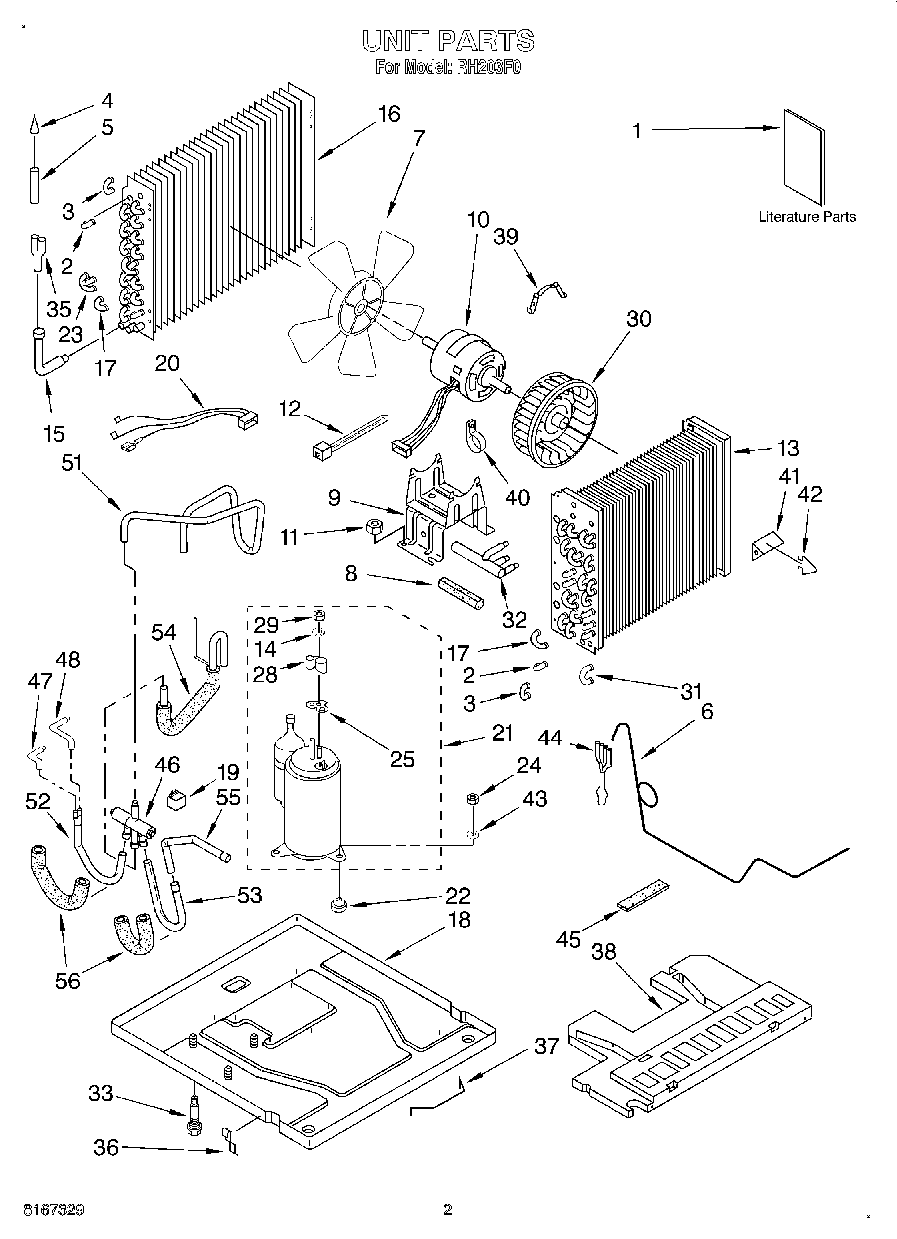

RH203F0 02 – UNIT, LITERATURE

Products

Position	Product
	Use & Care Guide
	Tech Sheet
	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (4)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
20	Harness, Wiring
21	Compressor
22	WP950021 Whirlpool Grommet
23	Bend, Return (3-Way)
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return Condenser (1)
32	Manifold, Suction
33	Bolt, Compressor
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Clamp, Wiring
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Distributor- 4 Circuit
45	Seal, Restrictor Tube
46	Valve, Reversing
47	Tube, Feeder
48	Tube, Feeder
51	Tube Valve/Disc.
52	Tube-Valve/Cond
53	Tube-Valve/Evap.
54	Tube-Valve/Accum
55	Tube, Connect
56	Seal, Tubing (2)
