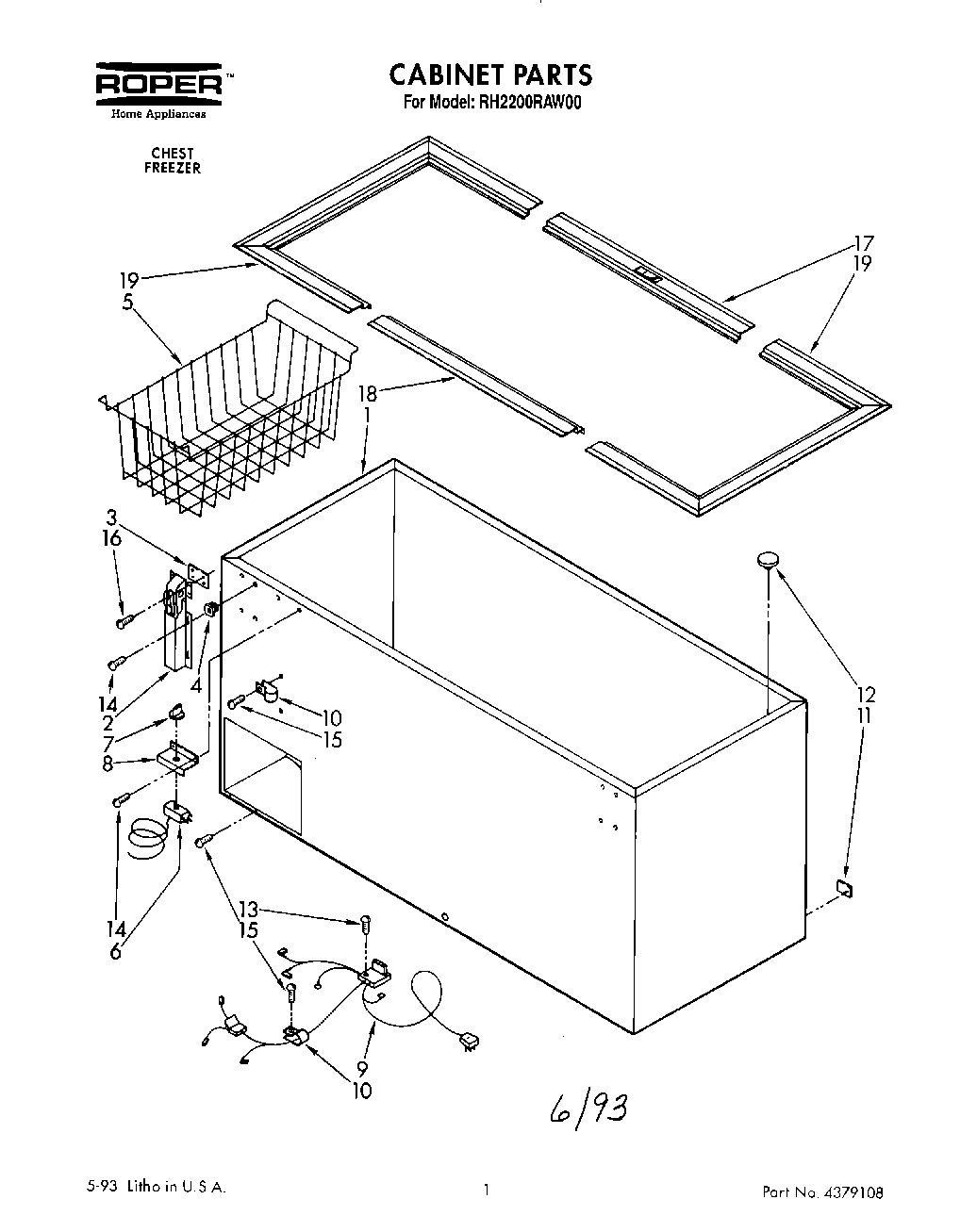

RH2200RAW00 01 – SECTION

Products

PositionProduct
Parts List
1Cabinet (Not A Serviceable Part)
2W11192185 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6Thermostat
7Thermostat, Knob
8Thermostat, Control Bracket
9Wiring, Harness External
10488946 Whirlpool Air Conditioner Clamp
11Drain, Cap
12Drain, Plug
13Screw
14WP308685 Whirlpool Microwave Screw
15WP488787 Whirlpool Refrigerator Screw
16Screw
174356641 Whirlpool Refrigerator Trim Bracket
18W11045298 Whirlpool Refrigerator Trim Bracket
19W11045300 Whirlpool Refrigerator Trim Bracket
19350942 Whirlpool Spray Paint
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
