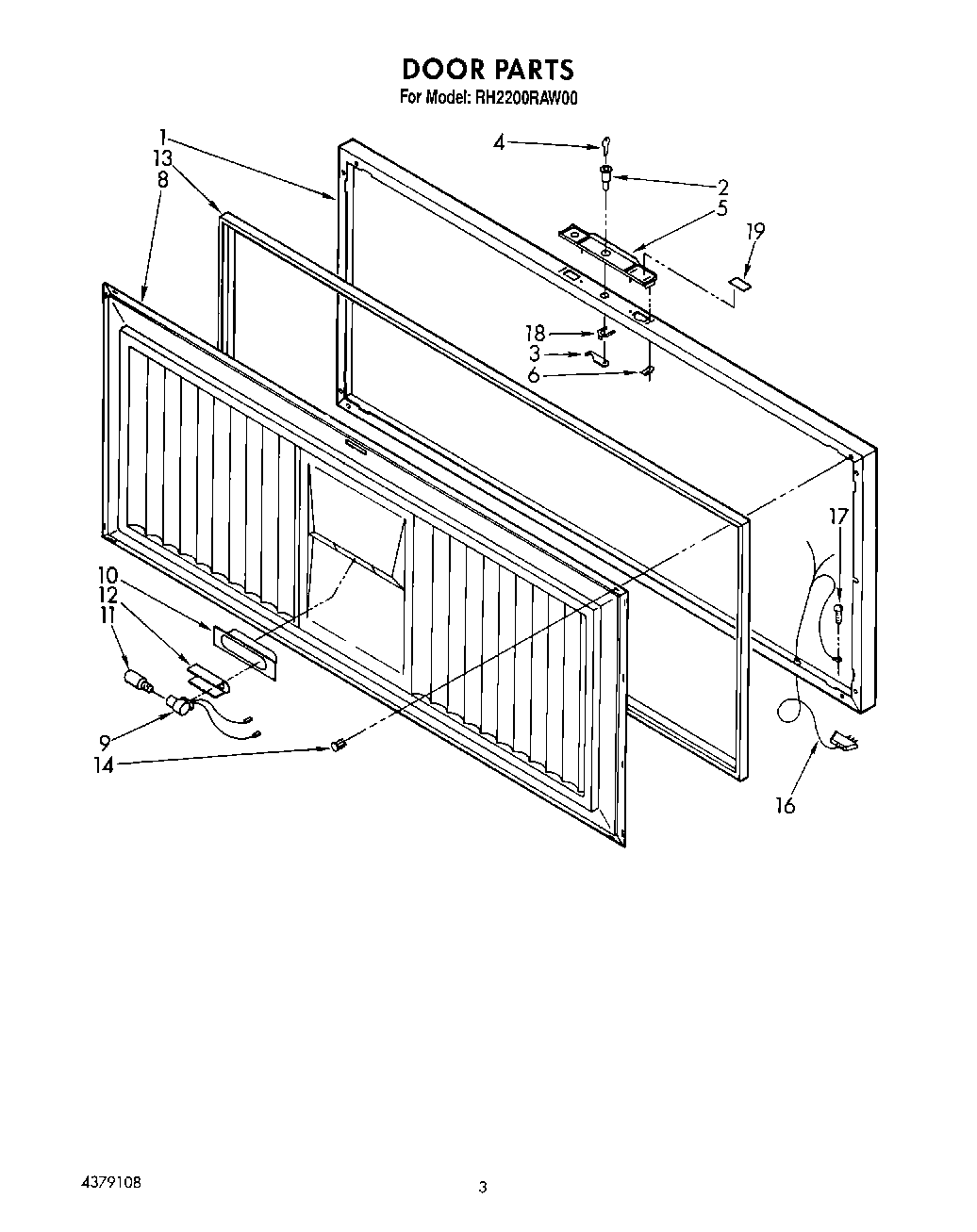

RH2200RAW00 02 – SECTION

Products

Position	Product
1	Exterior, Door Panel (Includes Insulation)
2	Lock
3	2-35195-002 Whirlpool Refrigerator Hook
4	Key
5	Handle
6	3-24059-024 Whirlpool Refrigerator Handle Clip
8	Interior, Door Panel
9	Lamp Socket
10	3-25693-001 Whirlpool Refrigerator Defrost Light
11	W10873798 Whirlpool Refrigerator Light Bulb
12	Heat Shield
13	Gasket
14	Plastic, Mounting Clip
16	Wiring Harness, Internal
17	WP488787 Whirlpool Refrigerator Screw
18	Clip, Spring
19	Nameplate
