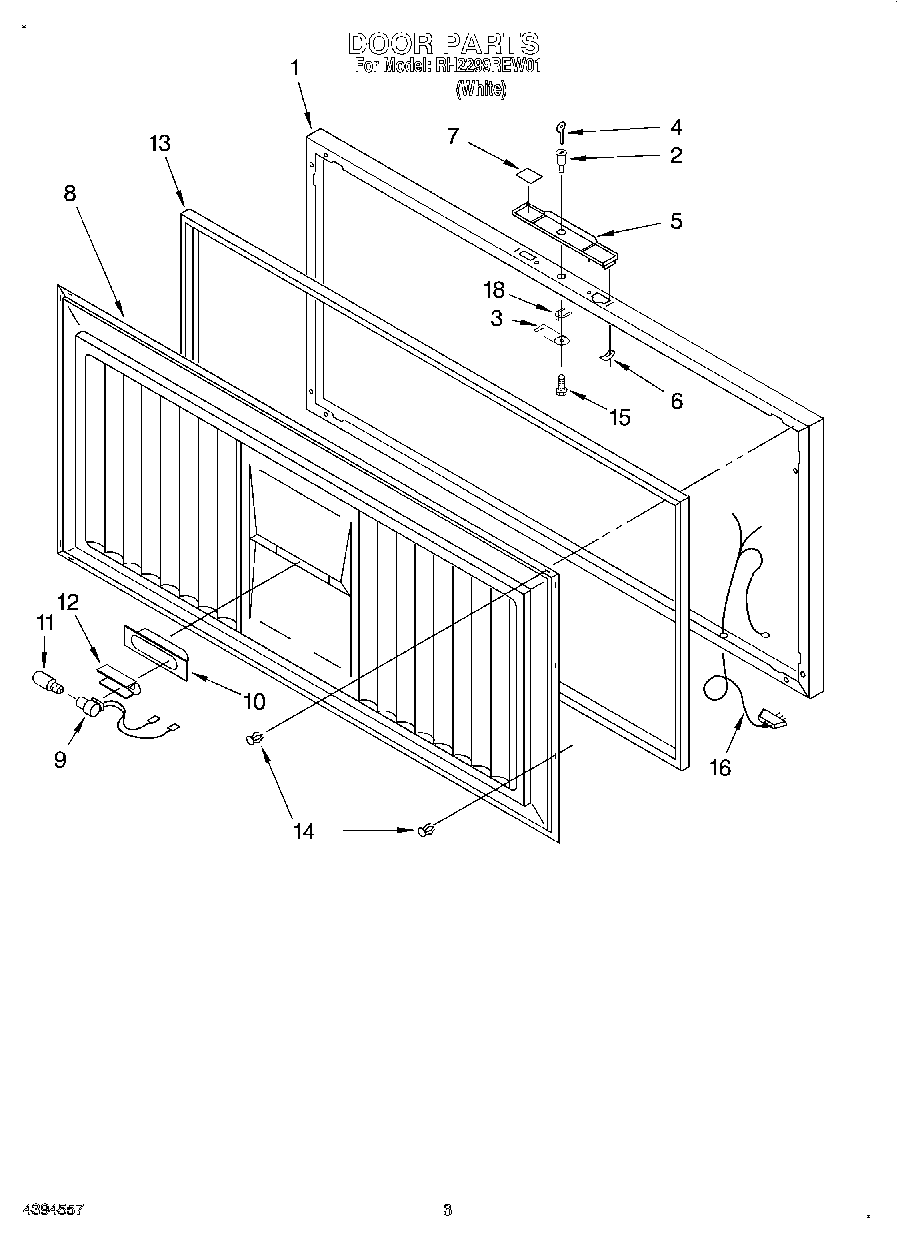

RH2299REW01 02 – SECTION

Products

Position	Product
1	4390903 Whirlpool Refrigerator External Panel
2	Lock Kit (Includes Items 3, 9, 10 & 11)
3	2-35195-002 Whirlpool Refrigerator Hook
4	Key
5	Handle
6	3-24059-024 Whirlpool Refrigerator Handle Clip
7	Nameplate
8	Interior, Door Panel
9	Lamp Socket
10	3-25693-001 Whirlpool Refrigerator Defrost Light
11	W10873798 Whirlpool Refrigerator Light Bulb
12	Heat Shield
13	Gasket
14	Plastic, Mounting Clip
15	SCREW
16	Wiring Harness, Internal
18	Clip
