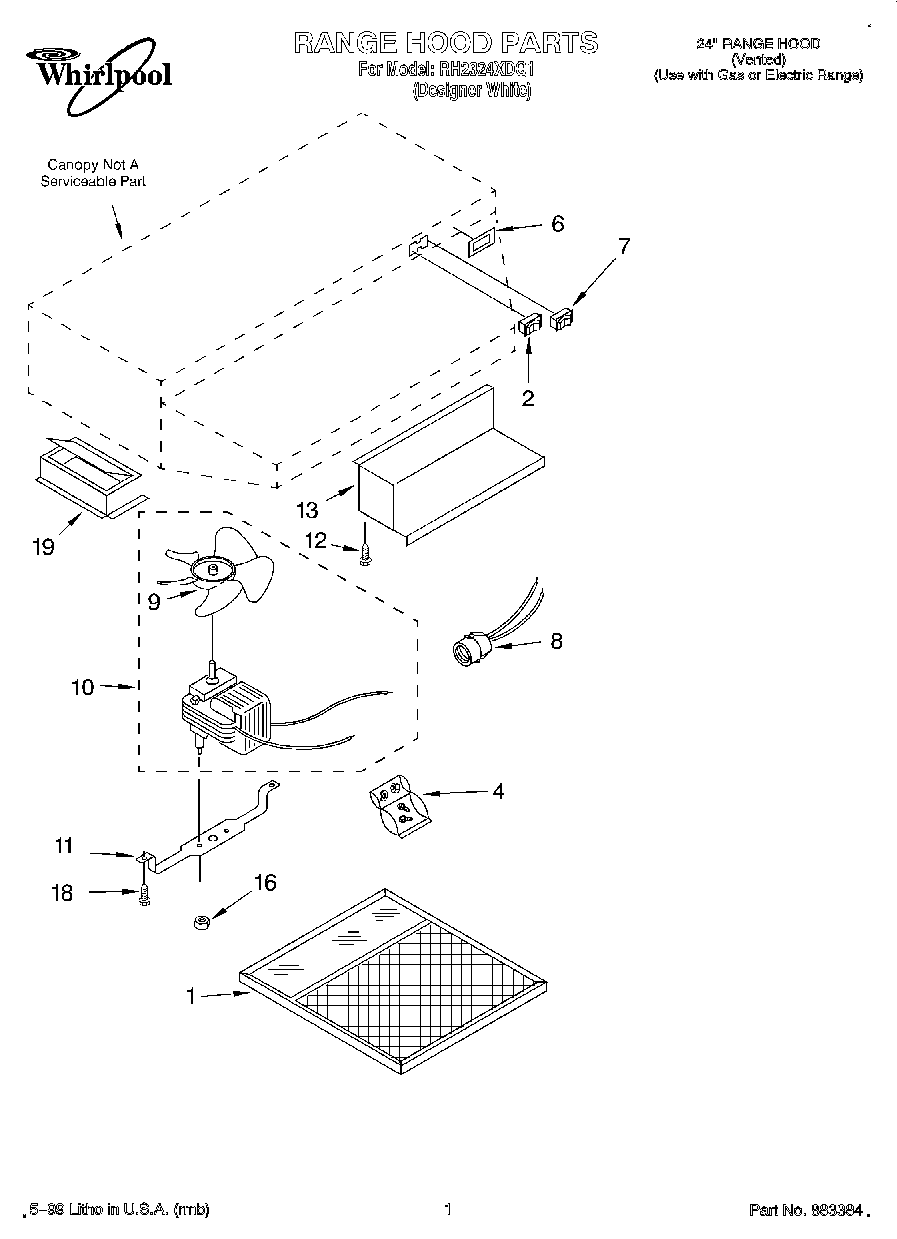

RH2324XDQ1 01 – SECTION

Products

Position	Product
	Installation & Operating Instructions
	Order Blank, Filter
	Wiring Diagram
1	WP8190232 Whirlpool Refrigerator Light Lens and Filter
2	Switch, Light (White)
4	Installation, Hardware
6	Nameplate (White)
7	W10673703 Whirlpool Rocker Switch
8	Receptacle, Light
9	Blade, Fan
10	Motor/Fan Assembly
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, wiring (White)
16	Nut, 6-32 (2)
18	WP488234 Whirlpool Air Conditioner Screw
19	Damper
