RH2330XDB1 01 – SECTION

RH2330XDB1 01 – SECTION

Written by

in

RH2330XDB1 01 – SECTION

Products

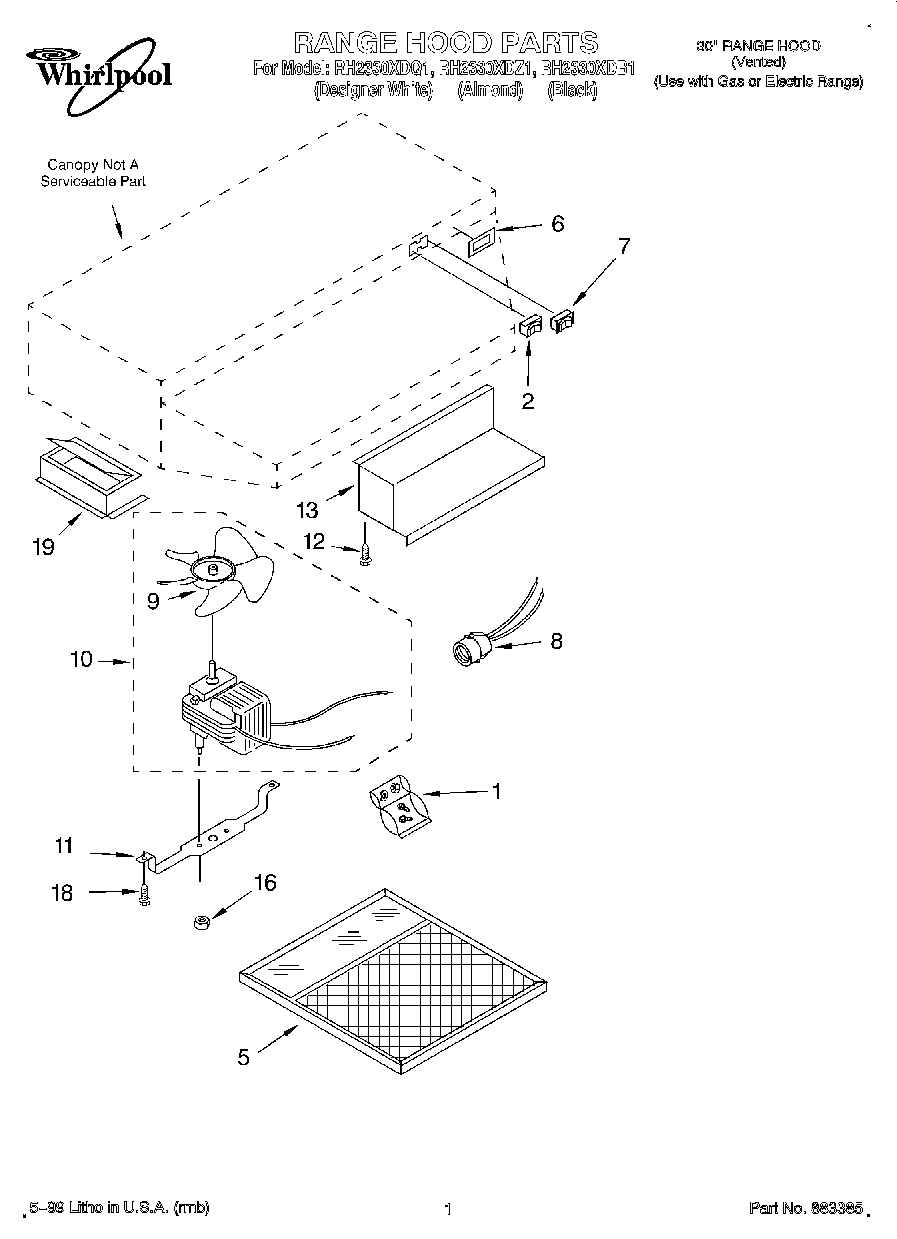

PositionProduct
Order Blank, Filter
Installation & Operating Instructions
1Installation, Hardware
2Switch, Light (White)
2W10673703 Whirlpool Rocker Switch
2Switch, Light (Almond Model)
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate (Almond Model)
6Nameplate (White)
6Nameplate (Black Model)
7Switch, Fan (Black Model)
7Switch, Fan (Almond Model)
8Receptacle, Light
9Blade, Fan
10Motor/Fan Assembly
11Bracket, Motor
12WP489069 Whirlpool Compactor Screw
13Cover, Wiring (Almond)
13Cover, wiring (White)
13Cover, wiring (Black)
16Nut, 6-32 (2)
18WP488234 Whirlpool Air Conditioner Screw
19Damper
