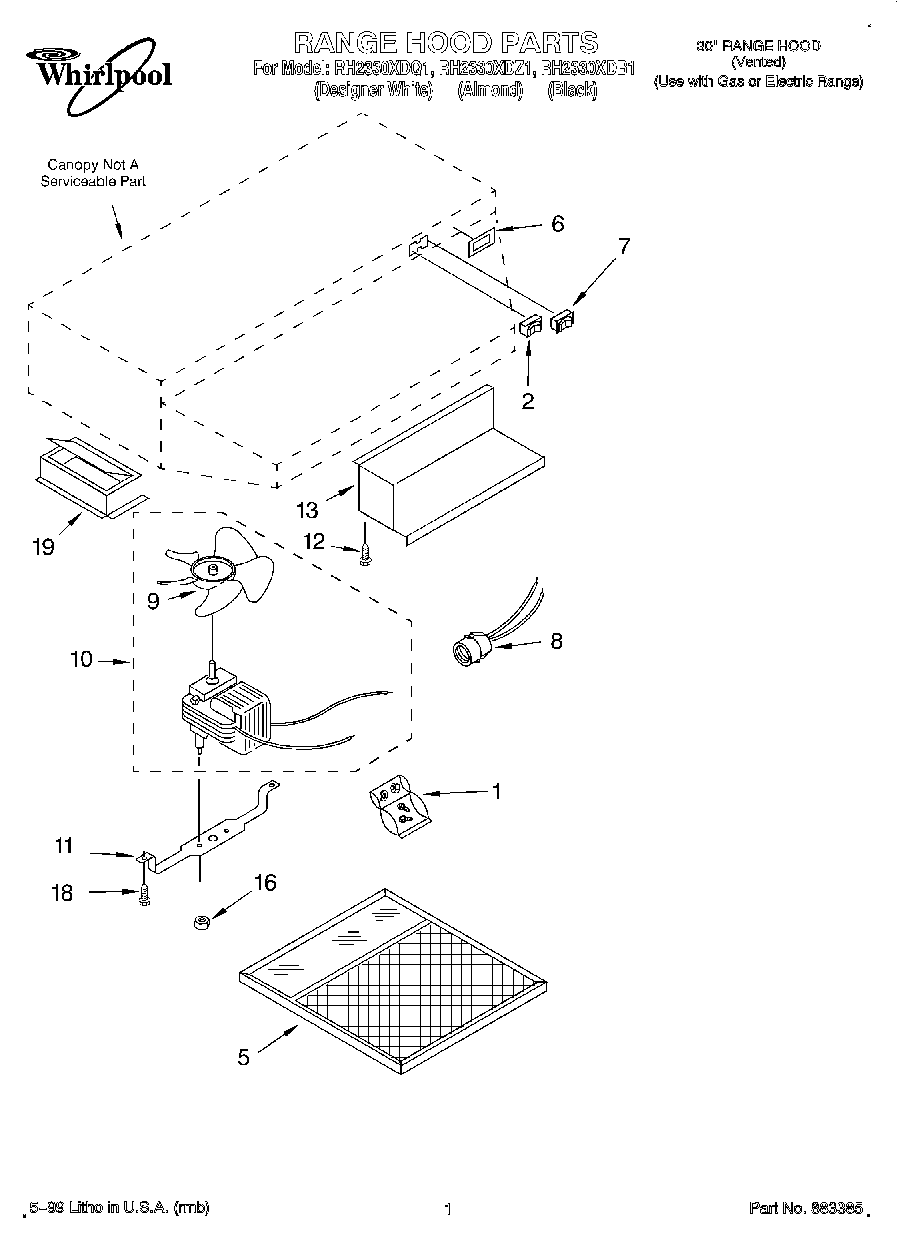

RH2330XDZ1 01 – SECTION

Products

Position	Product
	Order Blank, Filter
	Installation & Operating Instructions
1	Installation, Hardware
2	Switch, Light (White)
2	W10673703 Whirlpool Rocker Switch
2	Switch, Light (Almond Model)
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Almond Model)
6	Nameplate (White)
6	Nameplate (Black Model)
7	Switch, Fan (Black Model)
7	Switch, Fan (Almond Model)
8	Receptacle, Light
9	Blade, Fan
10	Motor/Fan Assembly
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, Wiring (Almond)
13	Cover, wiring (White)
13	Cover, wiring (Black)
16	Nut, 6-32 (2)
18	WP488234 Whirlpool Air Conditioner Screw
19	Damper
