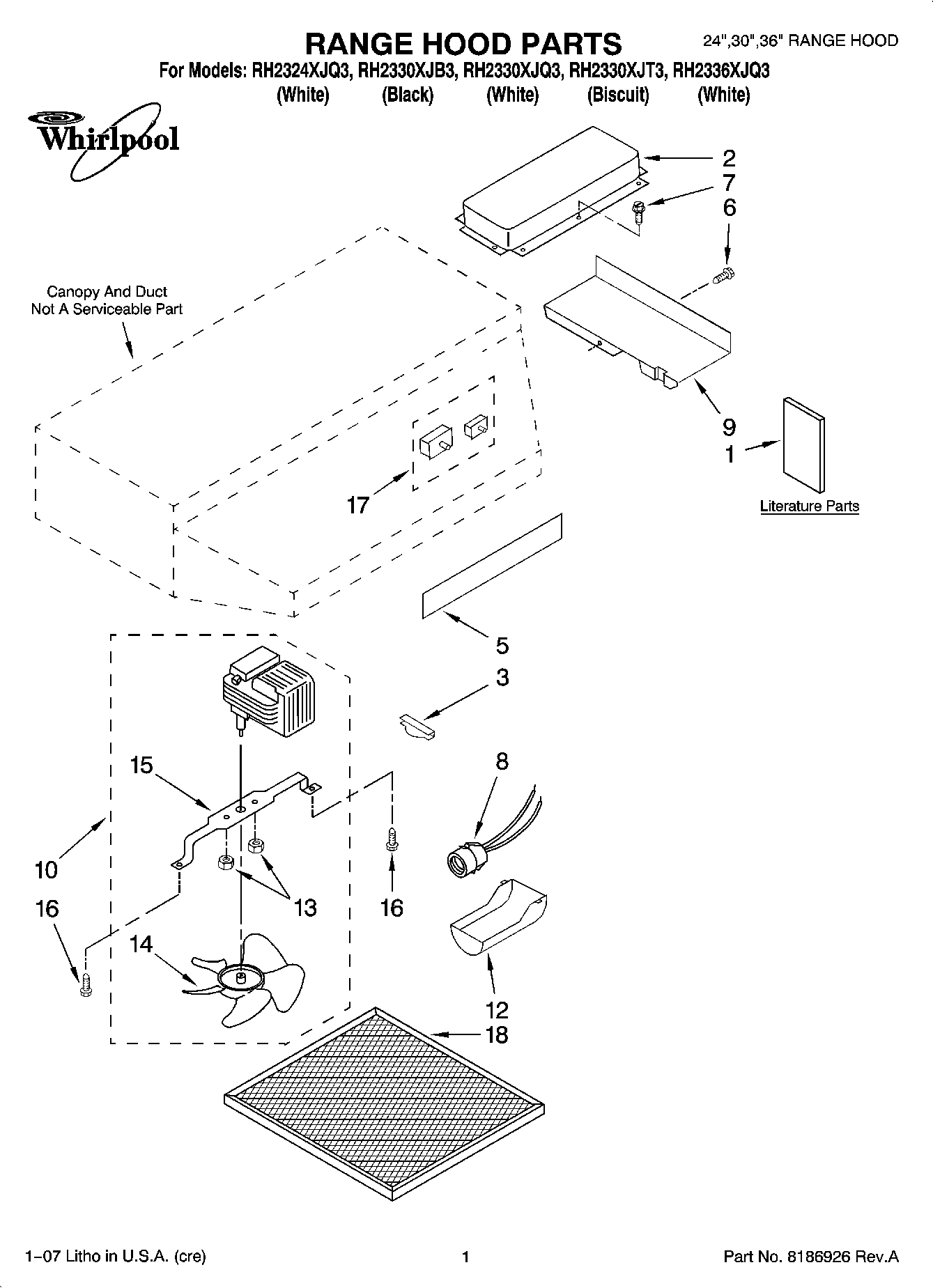

RH2330XJB3 01 – RANGE HOOD PARTS

Products

PositionProduct
1Guide, Use & Care
2Damper
3Support/Retainer (Filter)
5Nameplate (Black)
5Nameplate (White)
5Nameplate (Biscuit)
6Screw
7Screw
8Receptacle, Light Bulb not incl-75W
9Cover, Wiring
10Motor/Fan Assembly
12WP8186930 Whirlpool Light Lens Assembly
13NUT
14Blade, Fan
15Bracket, Motor
16Screw
17WP8186941 Whirlpool Rotary Switch
17Switch Assy. (Includes Fan and Light Switches) (Biscuit)
17W10673703 Whirlpool Rocker Switch
18FILTER
