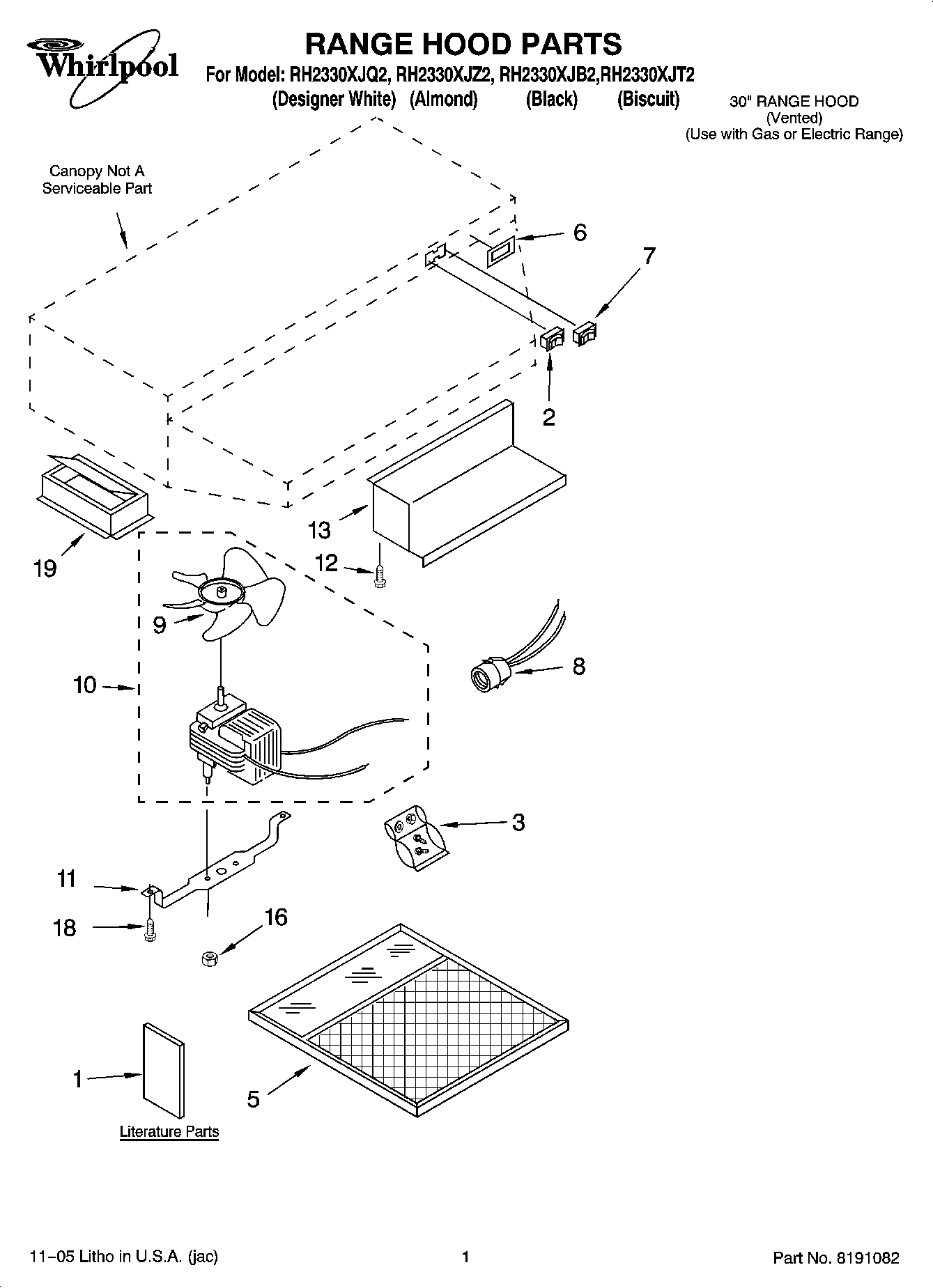

RH2330XJT2 01 – RANGE HOOD PARTS

Products

PositionProduct
1Instructions, Installation
1Wiring Diagram
2Switch, Light (Biscuit)
2Switch, Light (Black)
2Switch, Light (Almond)
2Switch, Light (White)
3Installation, Hardware
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate (Black)
6Nameplate (White)
6Nameplate (Biscuit)
6Nameplate (Almond)
7Switch, Fan (White)
7Switch, Fan (Black)
7Switch, Fan (Biscuit)
7Switch, Fan (Almond)
8Receptacle, Light
9Blade, Fan
10Motor/Fan Assembly
11Bracket, Motor
12WP489069 Whirlpool Compactor Screw
13Cover, Wiring (Almond)
13Cover, wiring (White)
13Cover, wiring (Black)
16Nut, 6-32 (2)
18WP488234 Whirlpool Air Conditioner Screw
19Damper
