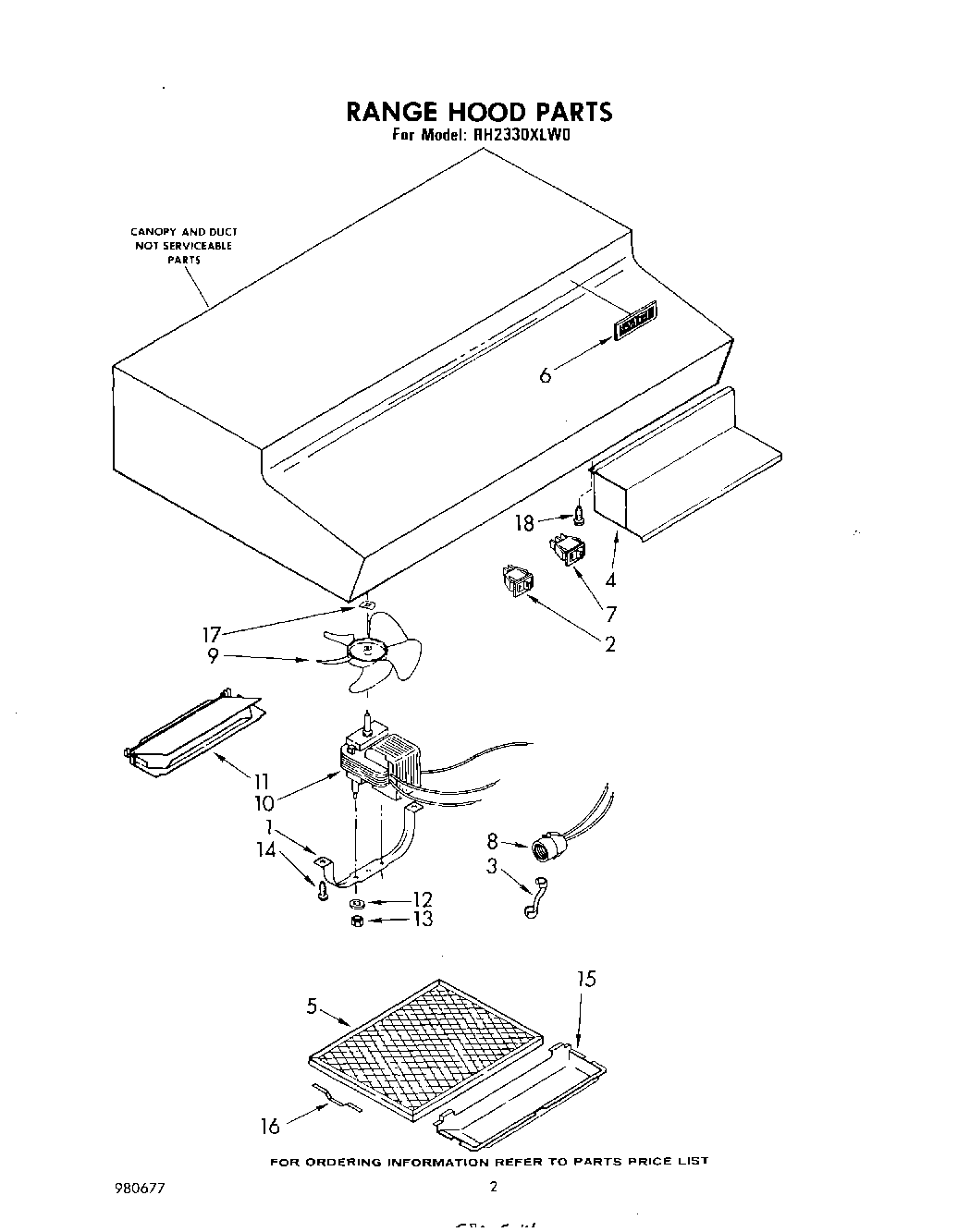

RH2330XLW0 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Order Blank, Filter
	Instructions, Installation & Operating
1	Bracket, Motor
2	W10673703 Whirlpool Rocker Switch
3	Bushing
4	Cover, wiring (Golden Harvest)
4	Cover, wiring (New Avocado)
4	Cover, wiring (Coffee)
4	Cover, Wiring (Almond)
4	Cover, Wiring (White)
4	Cover, Wiring (Toast)
4	Cover, Wiring (Platinum)
5	Filter, Grease
6	Nameplate
7	Switch, Fan
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Damper Assembly
12	Washer, No. 8 (2)
13	WP486255 Whirlpool Air Conditioner Nut
14	Screw, 8 x 1/4 (2)
15	Light Lens
16	Spring, Filter
17	Retainer (1)
18	WP489069 Whirlpool Compactor Screw
