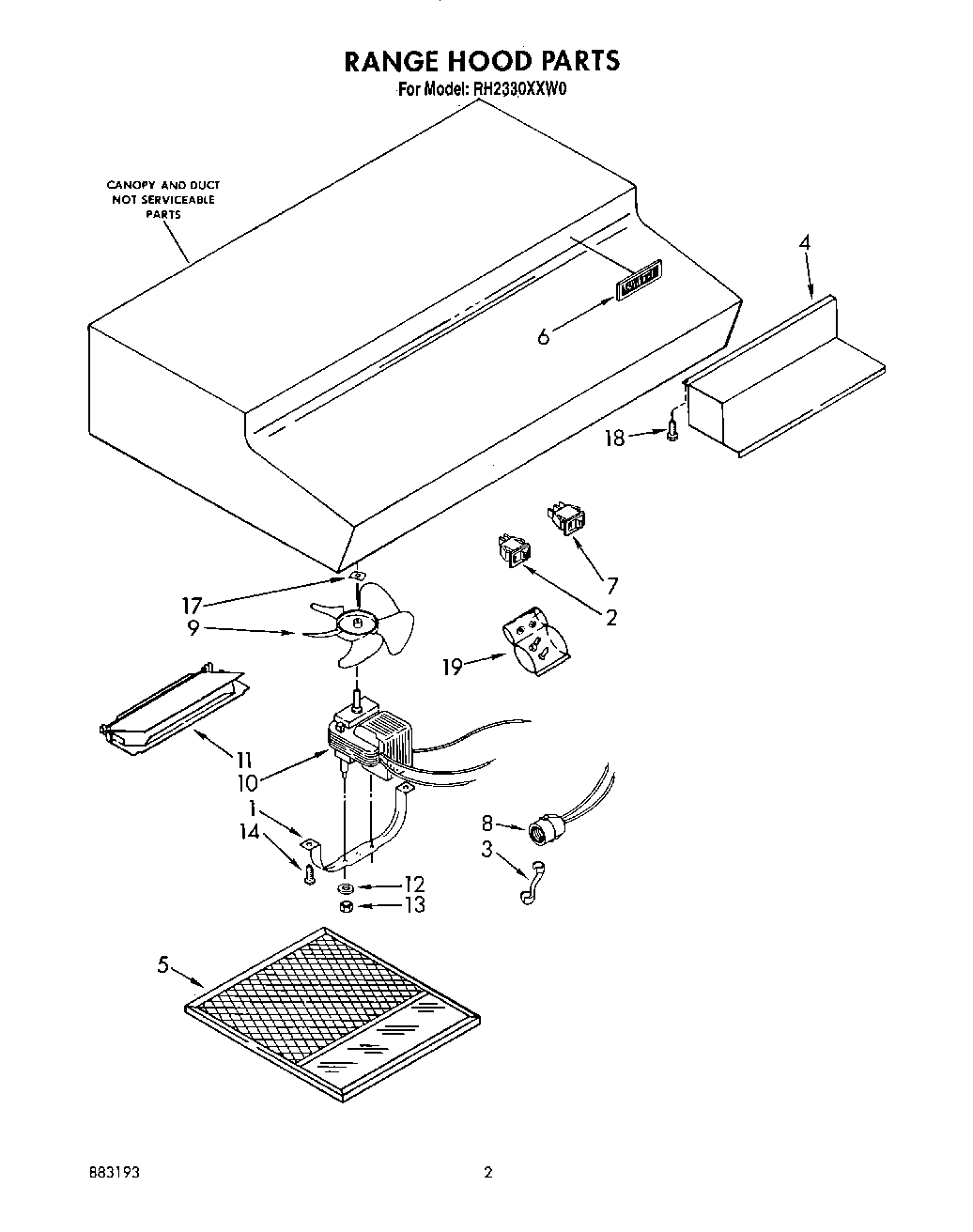

RH2330XXN0 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Instructions, Installation & Operating
	Wiring Diagram
	Order Blank, Filter
1	Bracket, Motor
2	Switch, Light (White Model)
3	Bushing, Strain Relief
4	Cover, wiring (White)
4	Cover, Wiring (Stainless Steel)
4	Cover, Wiring (Almond)
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (White)
6	Nameplate (Black)
7	Switch, Fan
7	W10673703 Whirlpool Rocker Switch
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Damper Assembly
12	Washer, No. 8 (2)
13	WP488130 Whirlpool Air Conditioner Nut
14	Screw, 8 x 1/4 (2)
17	Retainer, 3/16
18	WP489069 Whirlpool Compactor Screw
19	Installation, Hardware
