RH2330XXW0 02 – SECTION

Products

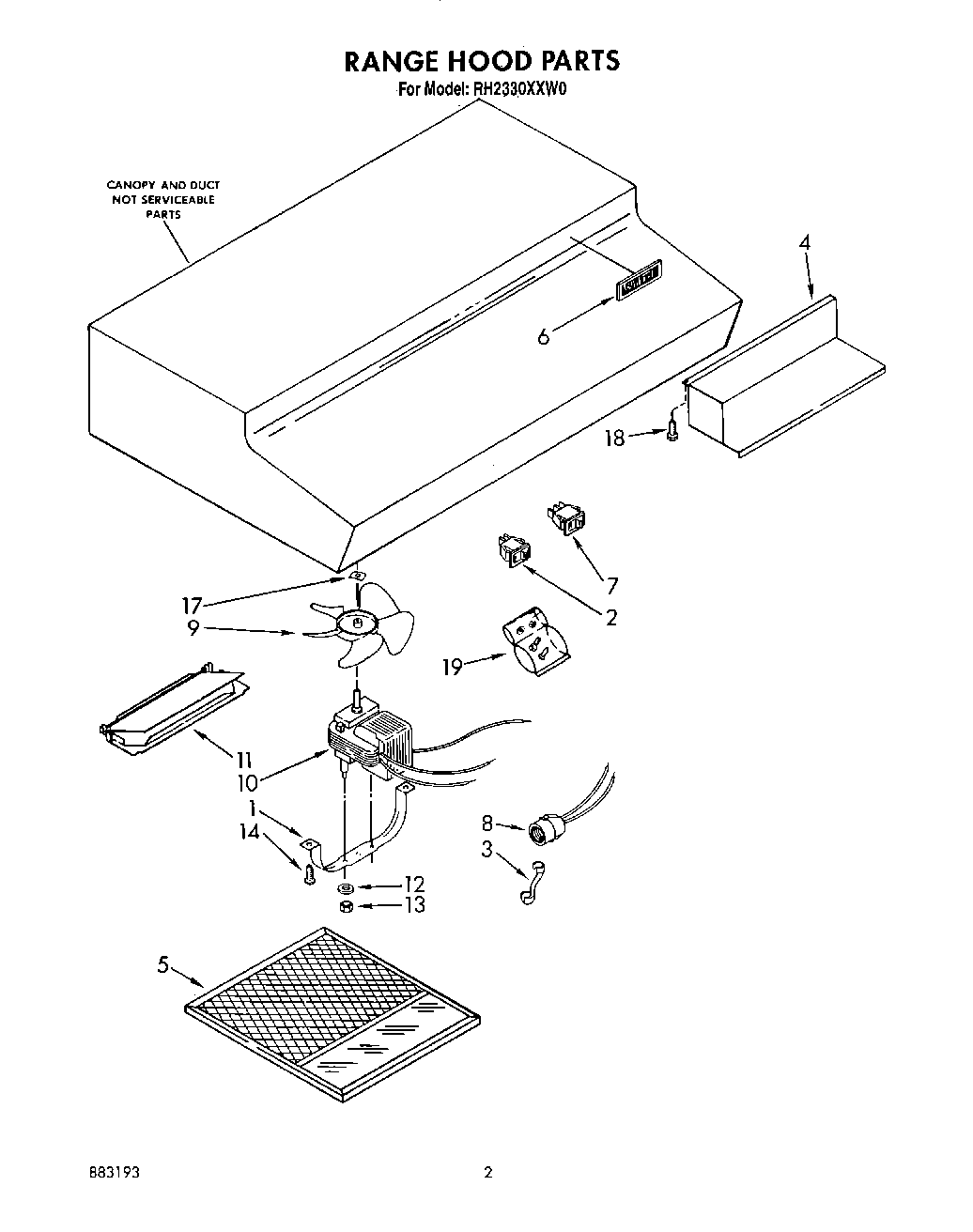

PositionProduct
List, Repair Parts
Instructions, Installation & Operating
Wiring Diagram
Order Blank, Filter
1Bracket, Motor
2Switch, Light (White Model)
3Bushing, Strain Relief
4Cover, wiring (White)
4Cover, Wiring (Stainless Steel)
4Cover, Wiring (Almond)
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate (White)
6Nameplate (Black)
7Switch, Fan
7W10673703 Whirlpool Rocker Switch
8Receptacle, Light
9Blade, Fan
10Motor, 2-Speed
11Damper Assembly
12Washer, No. 8 (2)
13WP488130 Whirlpool Air Conditioner Nut
14Screw, 8 x 1/4 (2)
17Retainer, 3/16
18WP489069 Whirlpool Compactor Screw
19Installation, Hardware
