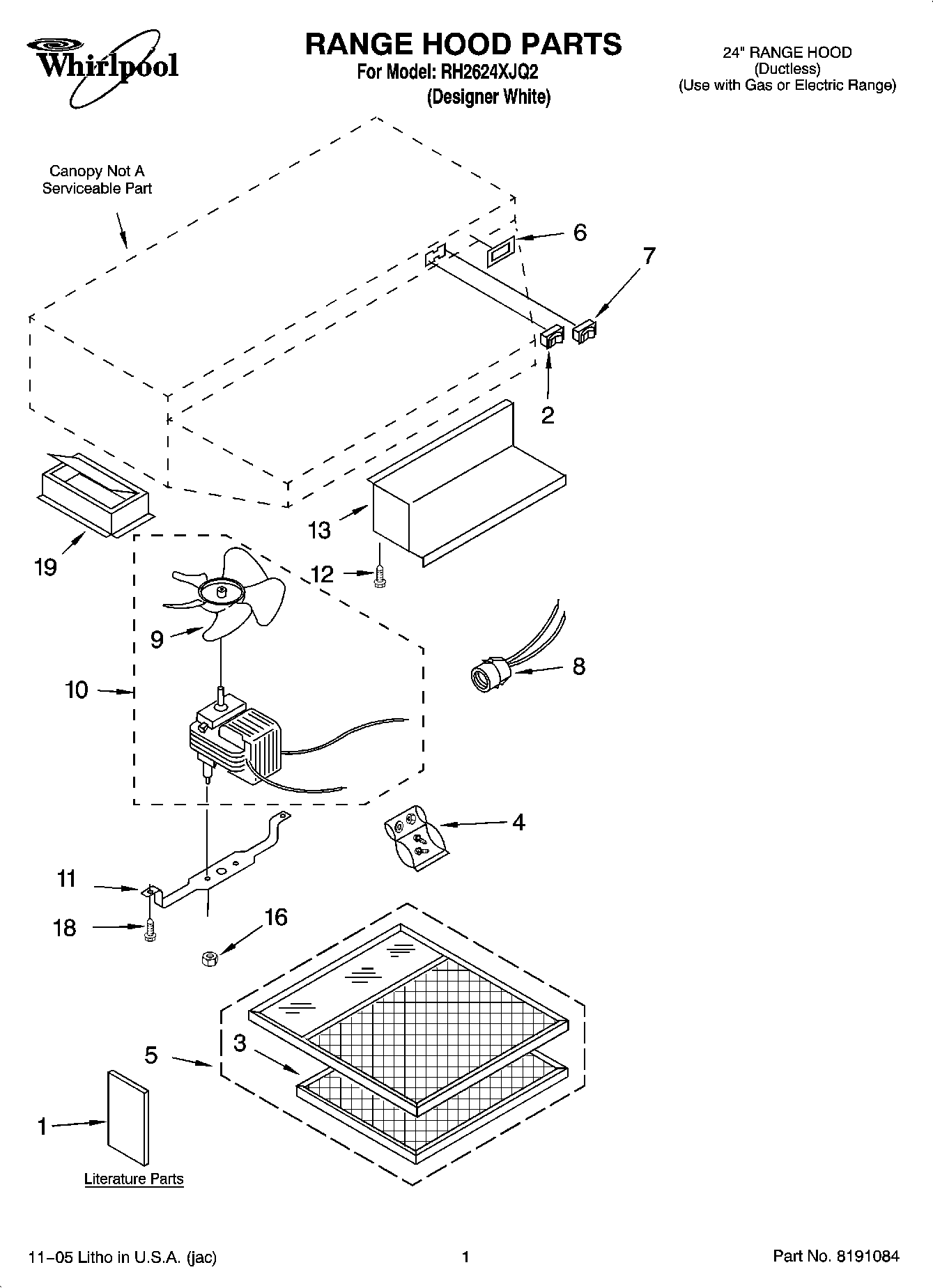

RH2624XJQ2 01 – RANGE HOOD PARTS

Products

Position	Product
1	Wiring Diagram
1	Instructions, Installation
2	Switch, Light (White)
3	Pad, Charcoal (Replacement, Package Of 3)
4	Installation, Hardware
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (White)
7	Switch, Fan (White)
8	Receptacle, Light
9	Blade, Fan
10	Motor, Blade Assy
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, wiring (White)
16	Nut, 6-32 (2)
18	WP488234 Whirlpool Air Conditioner Screw
19	Damper Assembly
