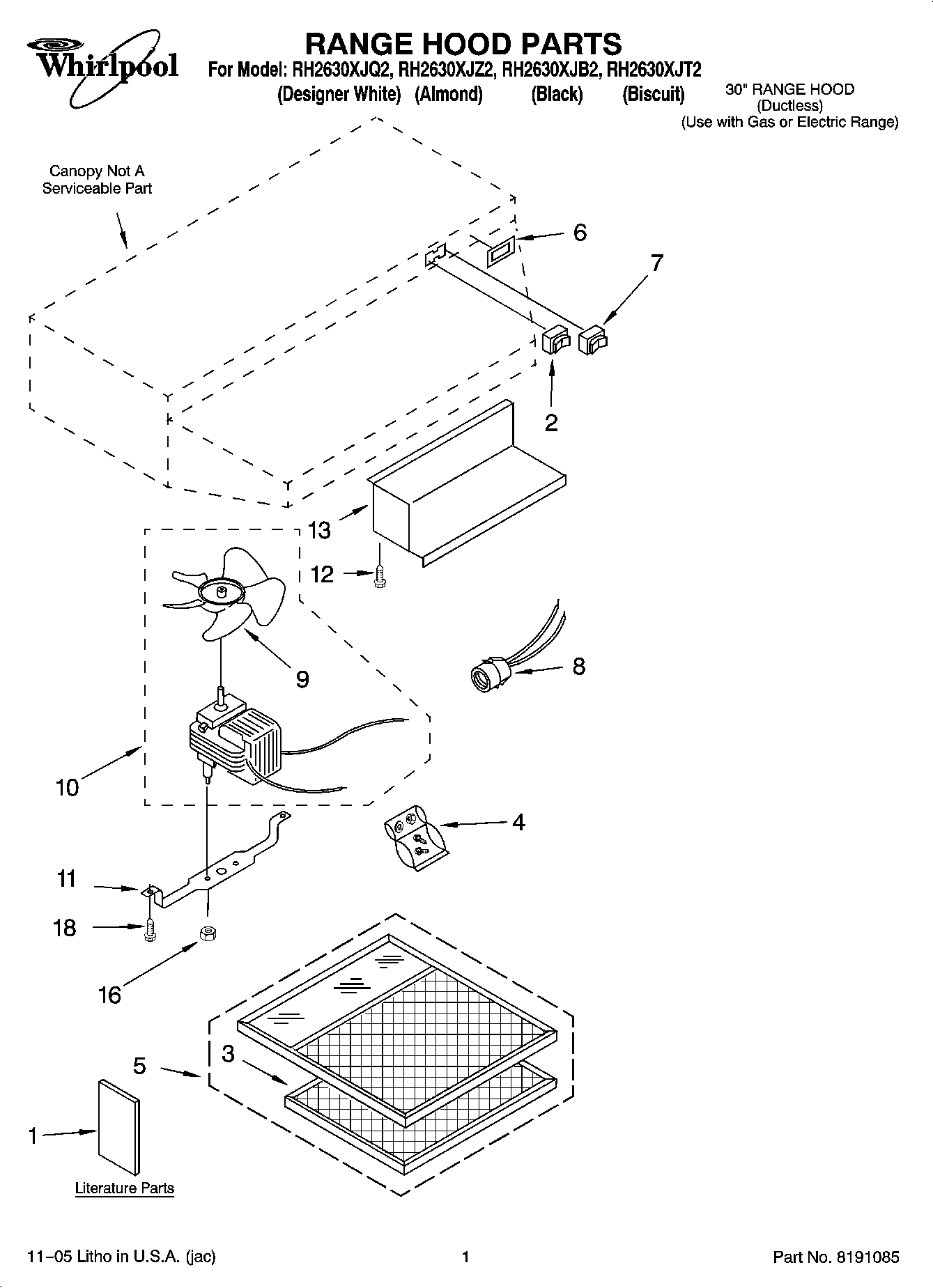

RH2630XJB2 01 – RANGE HOOD PARTSadmin2025-04-26T08:52:30+00:00RH2630XJB2 01 – RANGE HOOD PARTS
Products
| Position | Product |
|---|
| 1 | Instructions, Installation |
| 1 | Wiring Diagram |
| 2 | Switch, Light (White) |
| 2 | Switch, Light (Almond) |
| 2 | Switch, Light (Biscuit) |
| 2 | Switch, Light (Black) |
| 3 | Pad, Charcoal (Replacement, Package Of 3) |
| 4 | Installation, Hardware |
| 5 | WP8190232 Whirlpool Refrigerator Light Lens and Filter |
| 6 | Nameplate (Black) |
| 6 | Nameplate (Biscuit) |
| 6 | Nameplate (Almond) |
| 6 | Nameplate (White) |
| 7 | Switch, Fan (Black) |
| 7 | Switch, Fan (Biscuit) |
| 7 | Switch, Fan (White) |
| 7 | Switch, Fan (Almond) |
| 8 | Receptacle, Light |
| 9 | Blade, Fan |
| 10 | Motor, Blade Assy |
| 11 | Bracket, Motor |
| 12 | WP489069 Whirlpool Compactor Screw |
| 13 | Cover, Wiring (Almond) |
| 13 | Cover, wiring (Black) |
| 13 | Cover, wiring (White) |
| 16 | Nut, 6-32 (2) |
| 18 | WP488234 Whirlpool Air Conditioner Screw |
