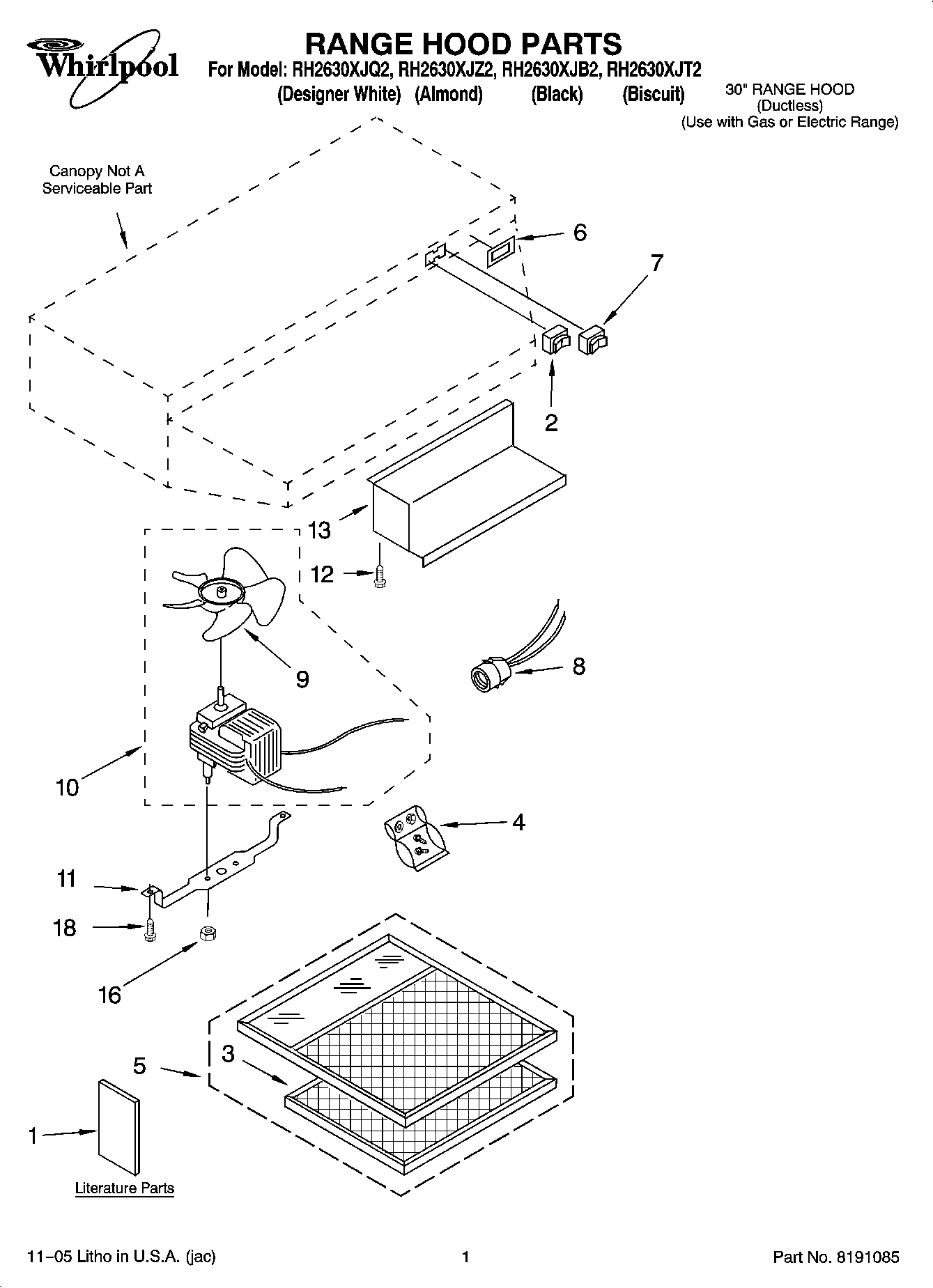

RH2630XJT2 01 – RANGE HOOD PARTS

Products

Position	Product
1	Instructions, Installation
1	Wiring Diagram
2	Switch, Light (White)
2	Switch, Light (Almond)
2	Switch, Light (Biscuit)
2	Switch, Light (Black)
3	Pad, Charcoal (Replacement, Package Of 3)
4	Installation, Hardware
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Black)
6	Nameplate (Biscuit)
6	Nameplate (Almond)
6	Nameplate (White)
7	Switch, Fan (Black)
7	Switch, Fan (Biscuit)
7	Switch, Fan (White)
7	Switch, Fan (Almond)
8	Receptacle, Light
9	Blade, Fan
10	Motor, Blade Assy
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, Wiring (Almond)
13	Cover, wiring (Black)
13	Cover, wiring (White)
16	Nut, 6-32 (2)
18	WP488234 Whirlpool Air Conditioner Screw
