RH2630XLW0 02 – SECTION

Products

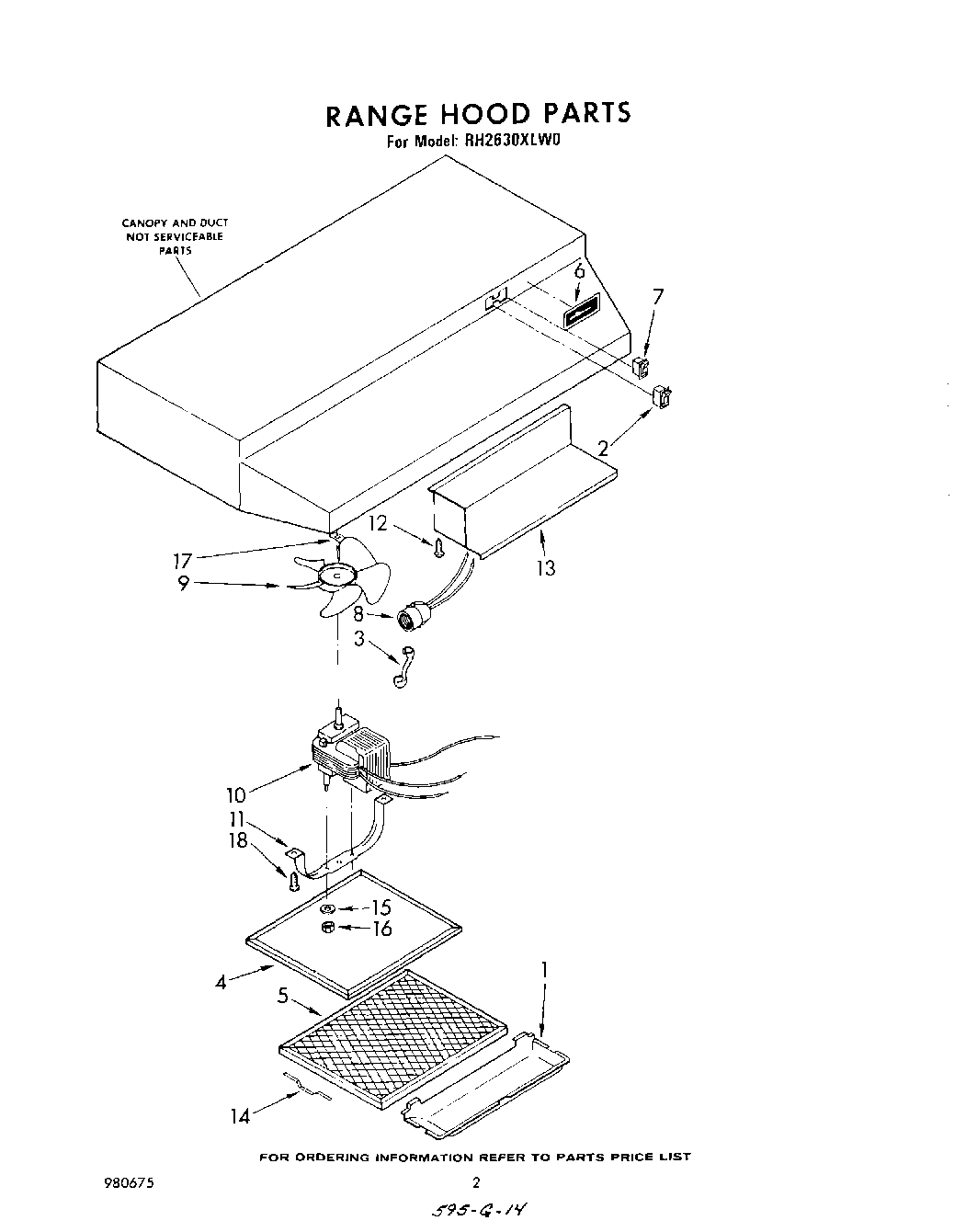

PositionProduct
Order Blank, Filter
List, Repair Parts
Installation & Operating Instructions
1Light Lens
2W10673703 Whirlpool Rocker Switch
3Bushing
4Filter, Charcoal
5Filter, Grease
6Nameplate
7Switch, Fan
8Receptacle, Light
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP489069 Whirlpool Compactor Screw
13Cover, wiring (Coffee)
13Cover, Wiring (White)
13Cover, wiring (New Avocado)
13Cover, Wiring (Platinum)
13Cover, wiring (Golden Harvest)
13Cover, Wiring (Toast)
14Spring, Filter
15Washer, No. 8 (2)
16WP486255 Whirlpool Air Conditioner Nut
17Retainer (1)
18Screw, 8 x 1/4 (2)
