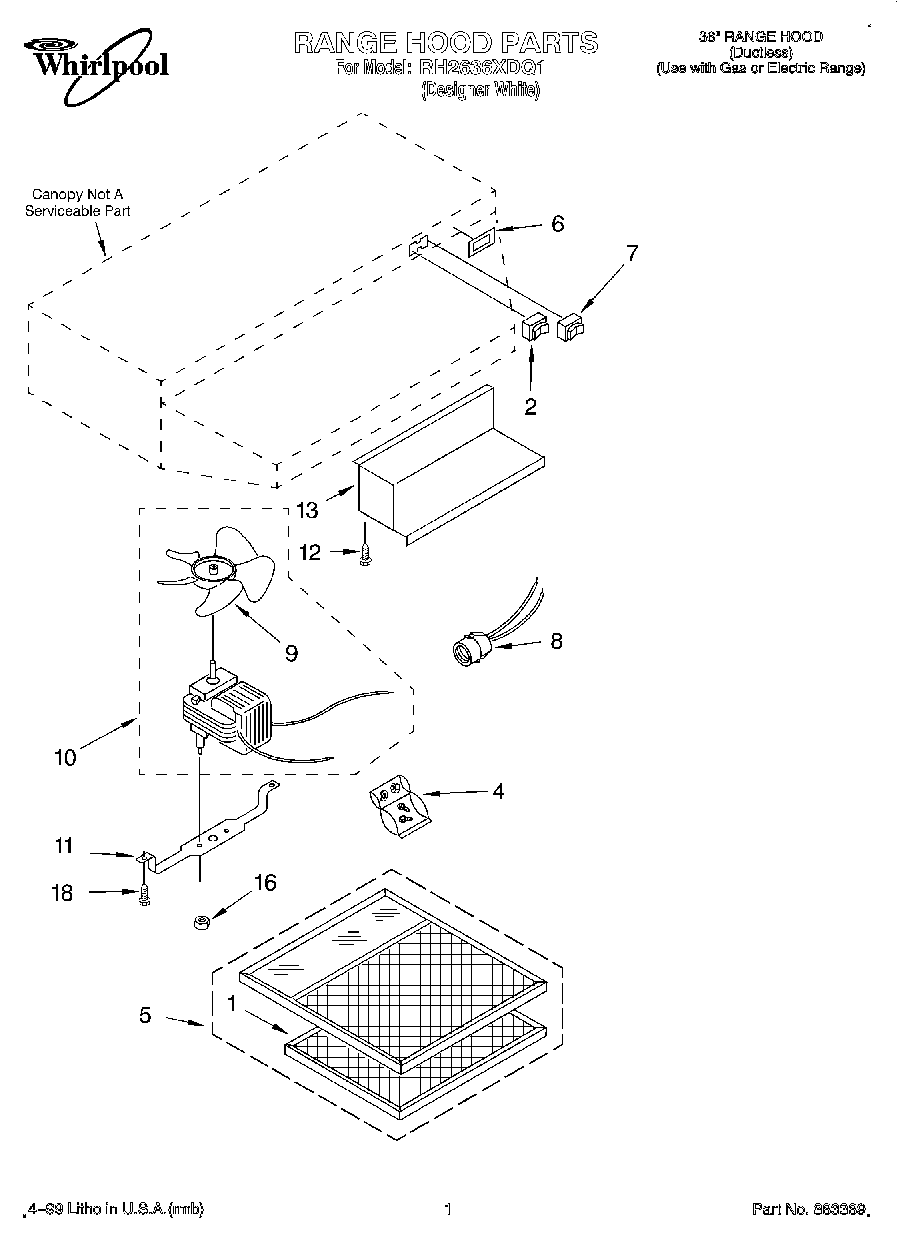

RH2636XDQ1 01 – SECTION

Products

Position	Product
	Installation & Operating Instructions
	Order Blank, Filter
	Wiring Diagram
1	Pad, Charcoal (Replacement, Package Of 3)
2	Switch, Light (White)
4	Installation, Hardware
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (White)
7	W10673703 Whirlpool Rocker Switch
8	Receptacle, Light
9	Blade, Fan
10	Motor, Blade Assy
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, wiring (White)
16	Nut, 6-32 (2)
18	WP488234 Whirlpool Air Conditioner Screw
