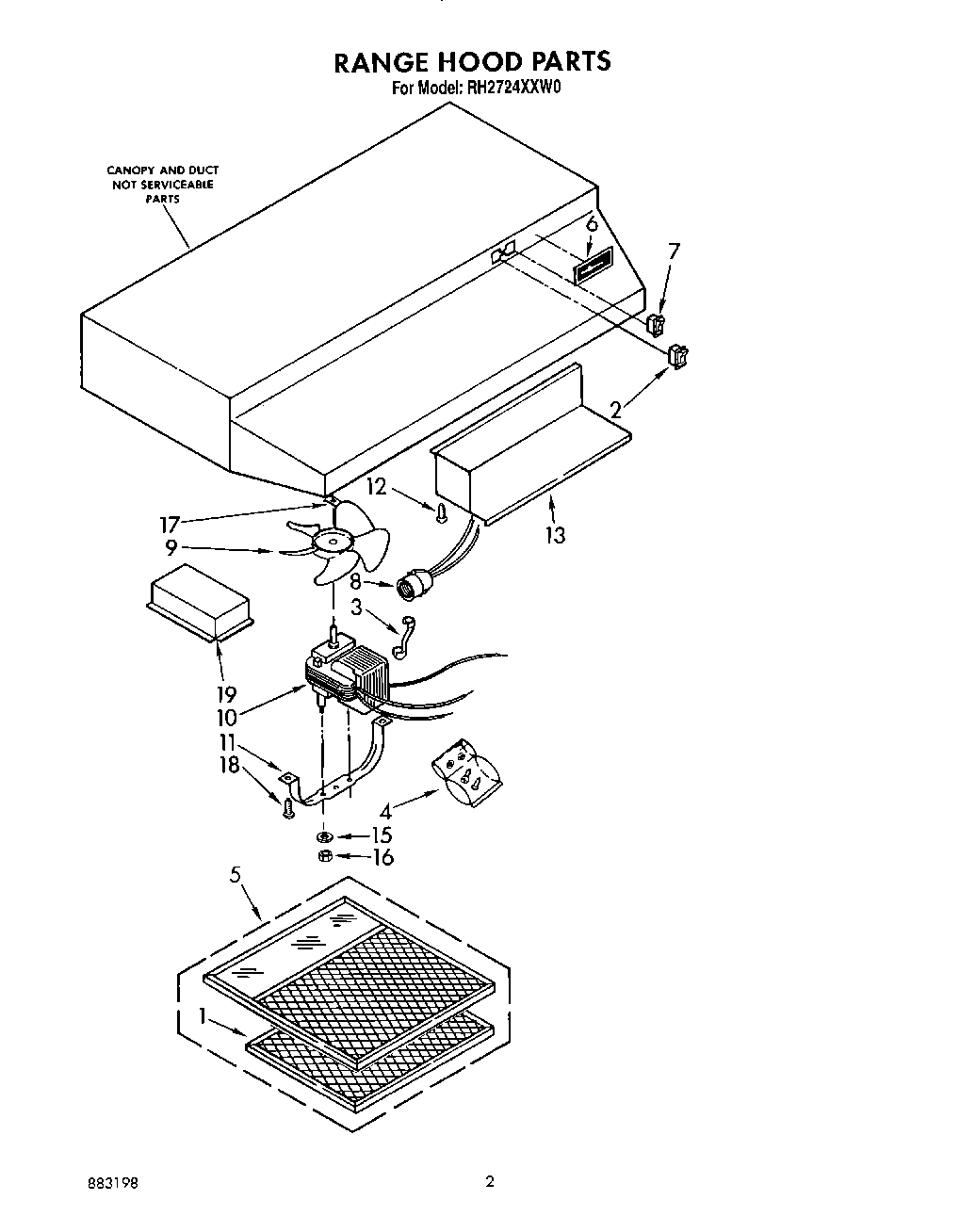

RH2724XXN0 02 – SECTION

Products

PositionProduct
List, Repair Parts
Wiring Diagram
Order Blank, Filter
Installation & Operating Instructions
1Pad, Charcoal (Replacement, Package Of 3)
2Switch, Light (White Model)
3Bushing
4Installation, Hardware
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate
6Nameplate (White)
7W10673703 Whirlpool Rocker Switch
7Switch, Fan
8Receptacle, Light
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP489069 Whirlpool Compactor Screw
13Cover, Wiring (Almond)
13Cover, wiring (White)
13Cover, Wiring (Stainless Steel)
15Washer, No. 8 (2)
16WP486255 Whirlpool Air Conditioner Nut
17Retainer (1)
18Screw, 8 x 1/4 (2)
19Damper Assembly
