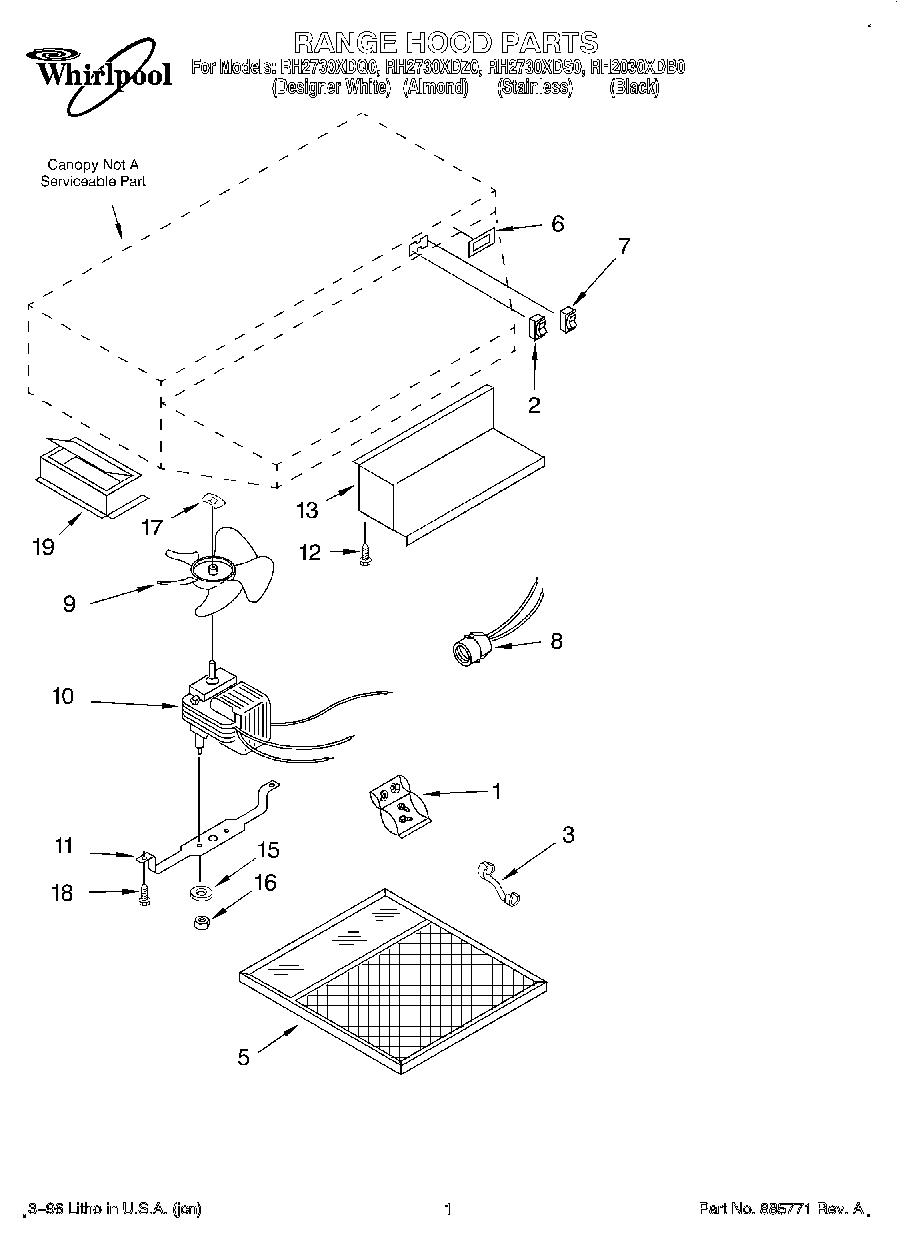

RH2730XDQ0 01 – SECTION

Products

Position	Product
	Installation & Operating Instructions
	Order Blank, Filter
1	Installation, Hardware
2	Switch, Light (White Model)
2	Switch, Light (Almond Model)
3	Bushing
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Black Model)
6	Nameplate (Stainless Model)
6	Nameplate (Almond Model)
6	Nameplate (White)
7	Switch, Fan
7	Switch, Fan (Almond Model)
7	W10673703 Whirlpool Rocker Switch
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, Wiring (Stainless Steel)
13	Cover, Wiring (Almond)
13	Cover, wiring (White)
15	Washer, No. 8 (2)
16	WP486255 Whirlpool Air Conditioner Nut
17	Retainer (1)
18	Screw, 8 x 1/4 (2)
19	Damper Assembly
