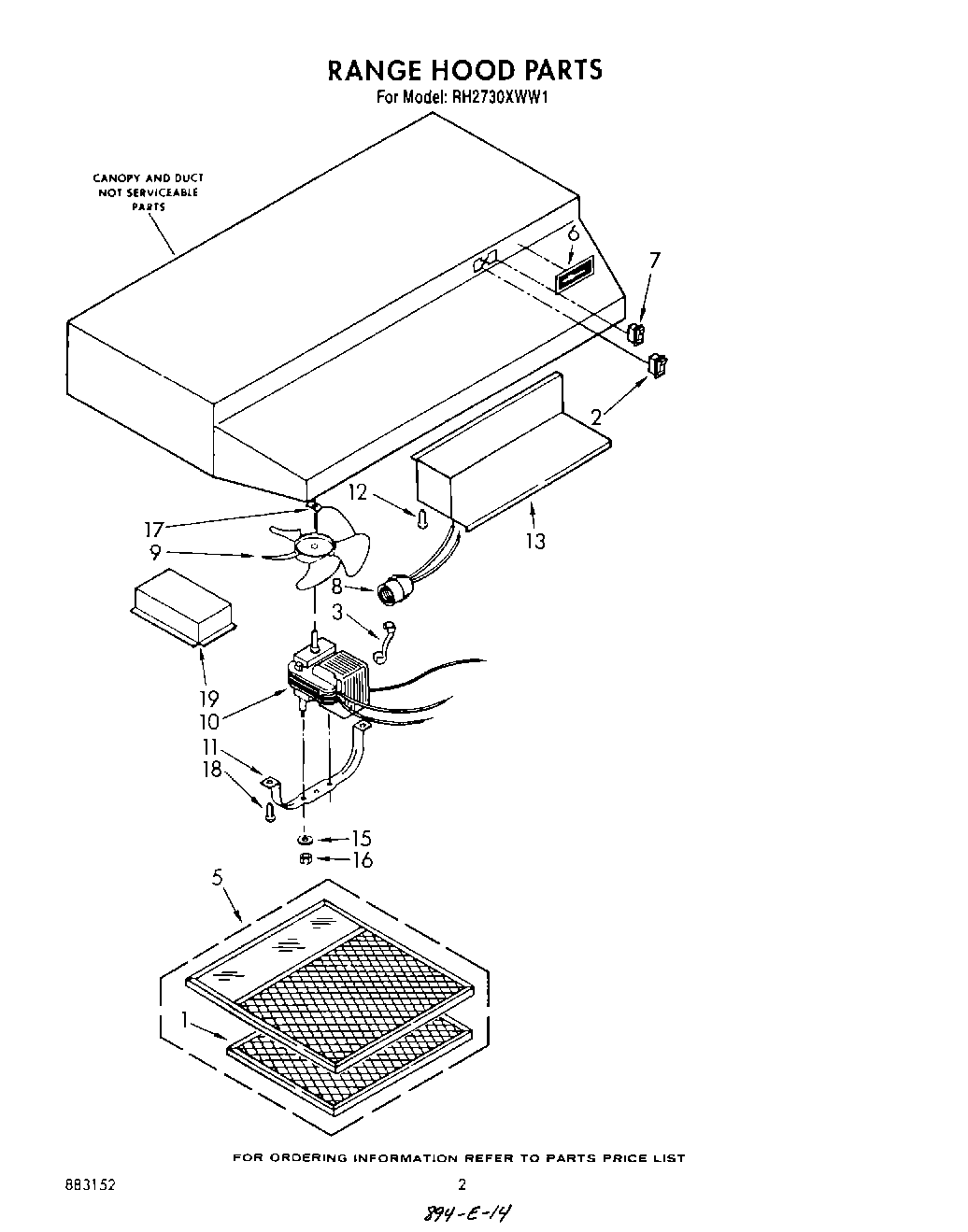

RH2730XWN1 02 – SECTION

Products

Position	Product
	List, Repair Parts
	Installation & Operating Instructions
	Order Blank, Filter
1	Pad, Charcoal (Replacement, Package Of 3)
2	W10673703 Whirlpool Rocker Switch
3	Bushing
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate
7	Switch, Fan
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, Wiring (Almond)
13	Cover, wiring (White)
13	Cover, Wiring (Stainless Steel)
15	Washer, No. 8 (2)
16	WP486255 Whirlpool Air Conditioner Nut
17	Retainer (1)
18	Screw, 8 x 1/4 (2)
19	Damper Assembly
