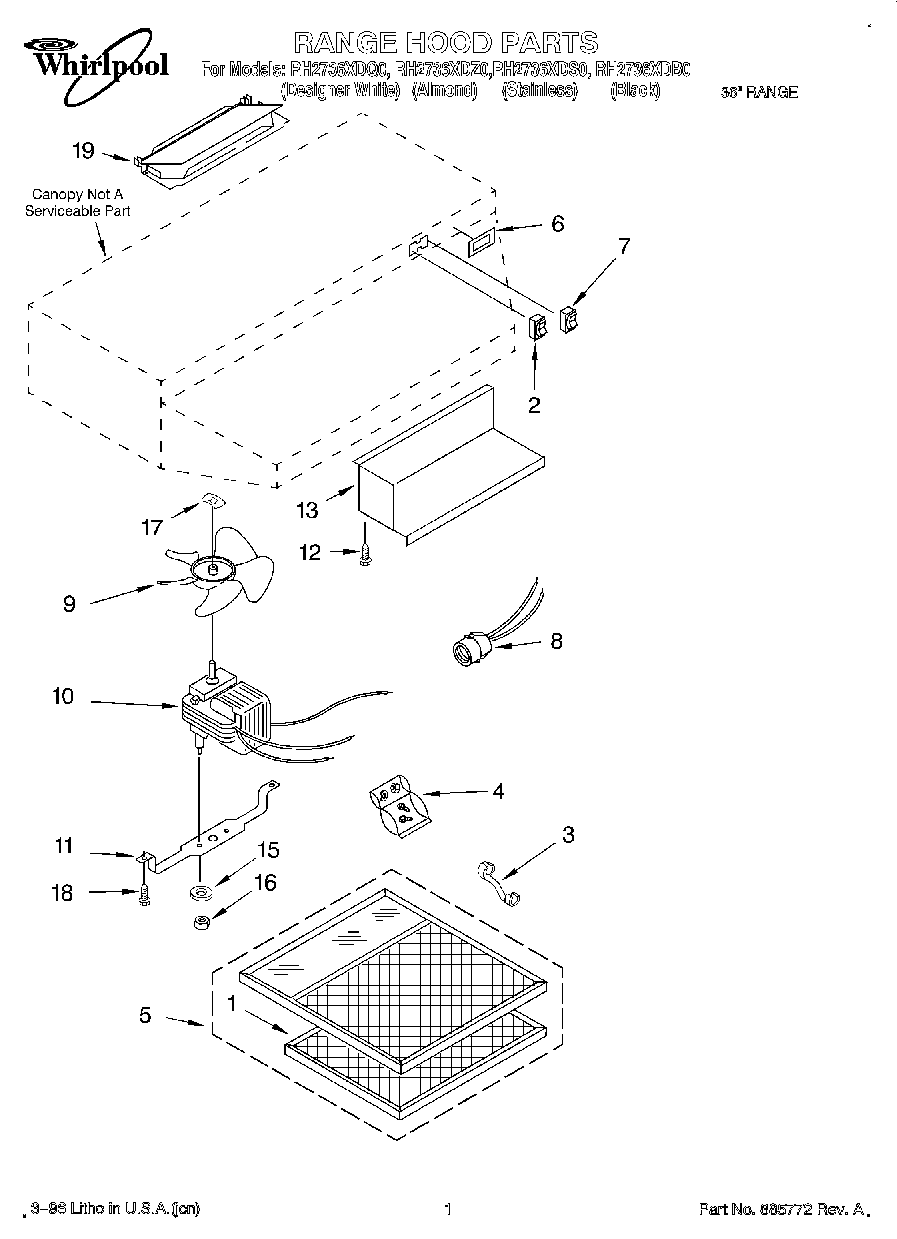

RH2736XDB0 01 – SECTION

Products

Position	Product
	Installation & Operating Instructions
	Wiring Diagram
	Order Blank, Filter
1	Pad, Charcoal (Replacement, Package Of 3)
2	Switch, Light (White)
2	Switch, Light (Almond Model)
2	W10673703 Whirlpool Rocker Switch
3	Bushing
4	Installation, Hardware
5	WP8190232 Whirlpool Refrigerator Light Lens and Filter
6	Nameplate (Black Model)
6	Nameplate (Stainless Model)
6	Nameplate (Almond Model)
6	Nameplate (White)
7	Switch, Fan
7	Switch, Fan (Almond Model)
8	Receptacle, Light
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP489069 Whirlpool Compactor Screw
13	Cover, wiring (White)
13	Cover, Wiring (Almond)
13	Cover, Wiring (Stainless Steel)
15	Washer
16	WP486255 Whirlpool Air Conditioner Nut
17	Retainer (1)
18	Screw, 8 x 1/4 (2)
19	Damper
