RH2736XDZ1 01 – SECTION

RH2736XDZ1 01 – SECTION

Written by

in

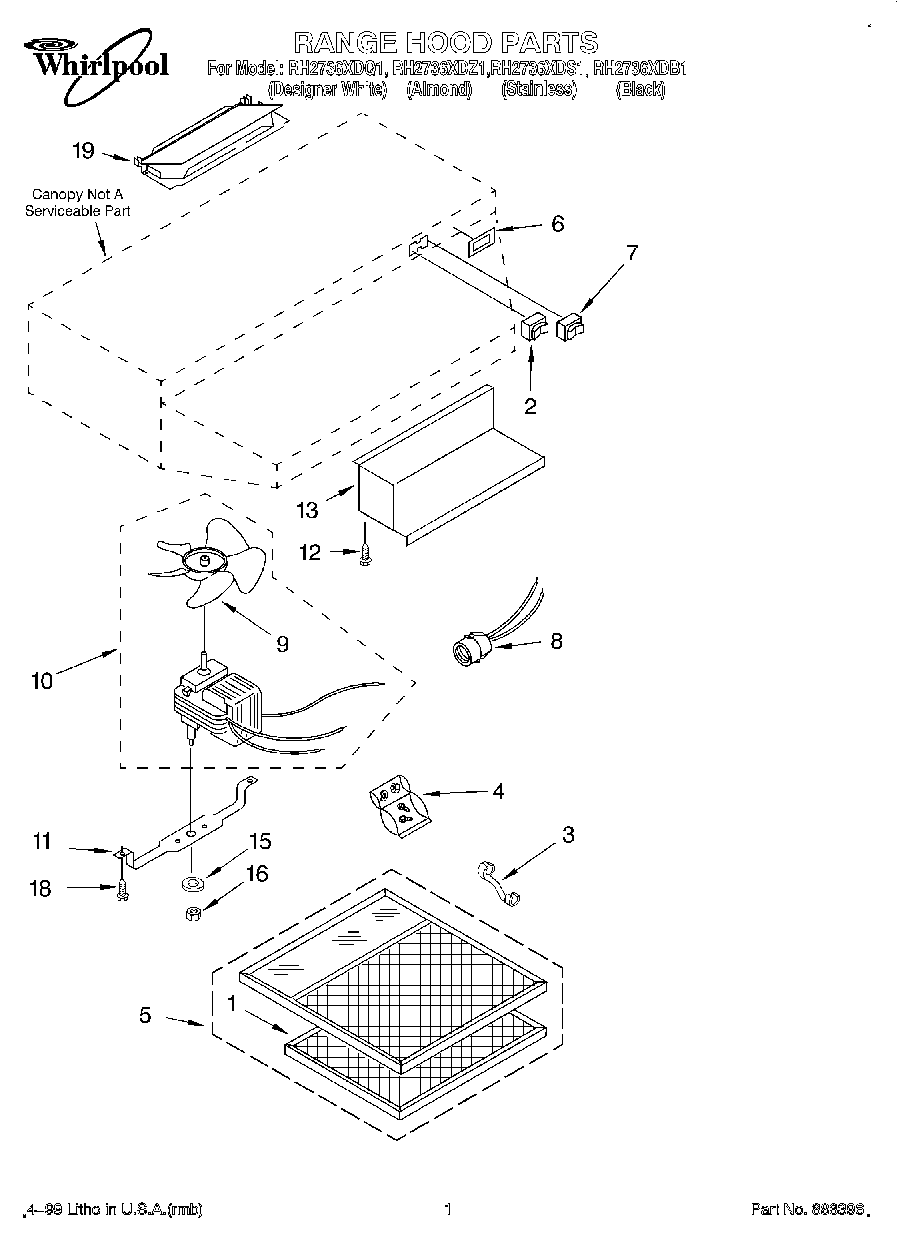

RH2736XDZ1 01 – SECTION

Products

PositionProduct
Installation & Operating Instructions
Order Blank, Filter
Wiring Diagram
1Pad, Charcoal (Replacement, Package Of 3)
2W10673703 Whirlpool Rocker Switch
2Switch, Light (White)
2Switch, Light (Almond Model)
3Bushing
4Installation, Hardware
5WP8190232 Whirlpool Refrigerator Light Lens and Filter
6Nameplate (Black Model)
6Nameplate (Stainless Model)
6Nameplate (Almond Model)
6Nameplate (White)
7Switch, Fan
7Switch, Fan (Almond Model)
8Receptacle, Light
9Blade, Fan
10Motor/Fan Assembly
11Bracket, Motor
12WP489069 Whirlpool Compactor Screw
13Cover, wiring (White)
13Cover, Wiring (Almond)
13Cover, Wiring (Stainless Steel)
15Washer
16WP486255 Whirlpool Air Conditioner Nut
18Screw, 8 x 1/4 (2)
19Damper
