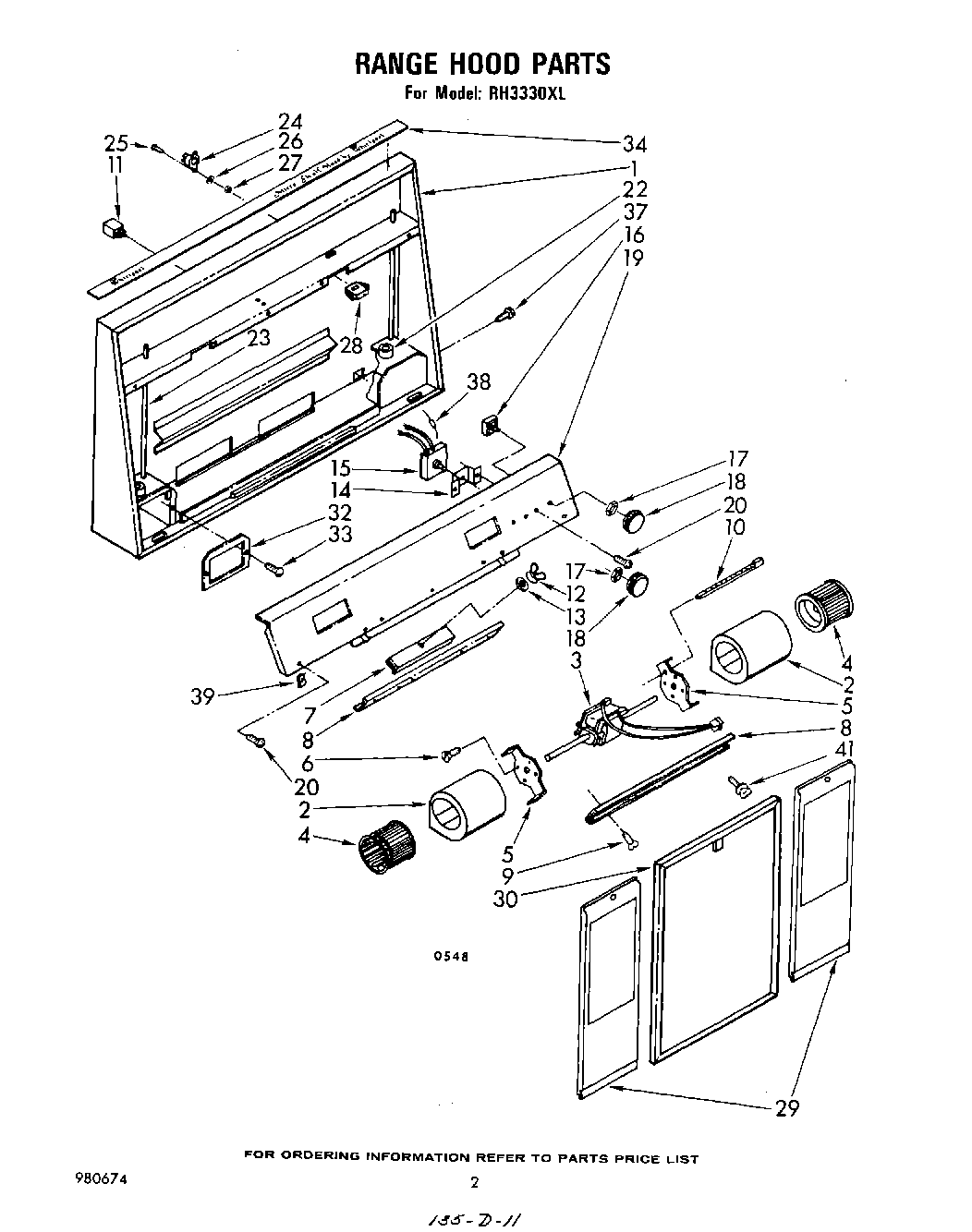

| 1 | Main Body (Not a Serviceable Part) |
| 2 | Wrapper (2) |
| 3 | Motor |
| 4 | Blower Wheel (2) |
| 5 | Bracket, Motor (2) |
| 6 | WP489128 Whirlpool Refrigerator Screw |
| 7 | Bracket, Blower Mounting |
| 8 | Channel, Blower (2) |
| 10 | WPW10339879 Whirlpool Wire Tie |
| 11 | Outlet, 120V |
| 12 | W10080180 Whirlpool Nut |
| 13 | Washer |
| 14 | Bracket, Switch |
| 15 | Switch, Fan Motor |
| 16 | Switch, Light |
| 17 | Nut, 15/32-32 |
| 18 | Knob (2) |
| 19 | Front Panel (Includes Illus 39) |
| 20 | Screw, 8 x 1/4 (7) |
| 22 | Receptacle, Light |
| 23 | Tubing, Aluminum (2) |
| 24 | Switch, Thermal |
| 25 | Screw, 6-32 x 1/4 (2) |
| 26 | Washer (2) |
| 27 | Nut, 6-32 (2) |
| 28 | Receptacle, Motor Wire |
| 29 | Frame, Glass (2) |
| 30 | Filter, Aluminum |
| 32 | Cover, Wiring Box (2) |
| 33 | Screw, 8 x 1/2 (4) |
| 34 | Nameplate |
| 37 | Screw, 10-32 x 3/8 |
| 38 | Diode, Wire |
| 39 | Nut, 6-32 (2) |
| 41 | Order Blank, Filter |
| 41 | Screw, Thumb 6-32 (2) |
| 41 | Instructions, Installation |
| 41 | Paint, Cord Brown Spray (13 Oz.) |
| 41 | Ductless Kit Model RCH3660 |
| 41 | List, Repair Parts |
