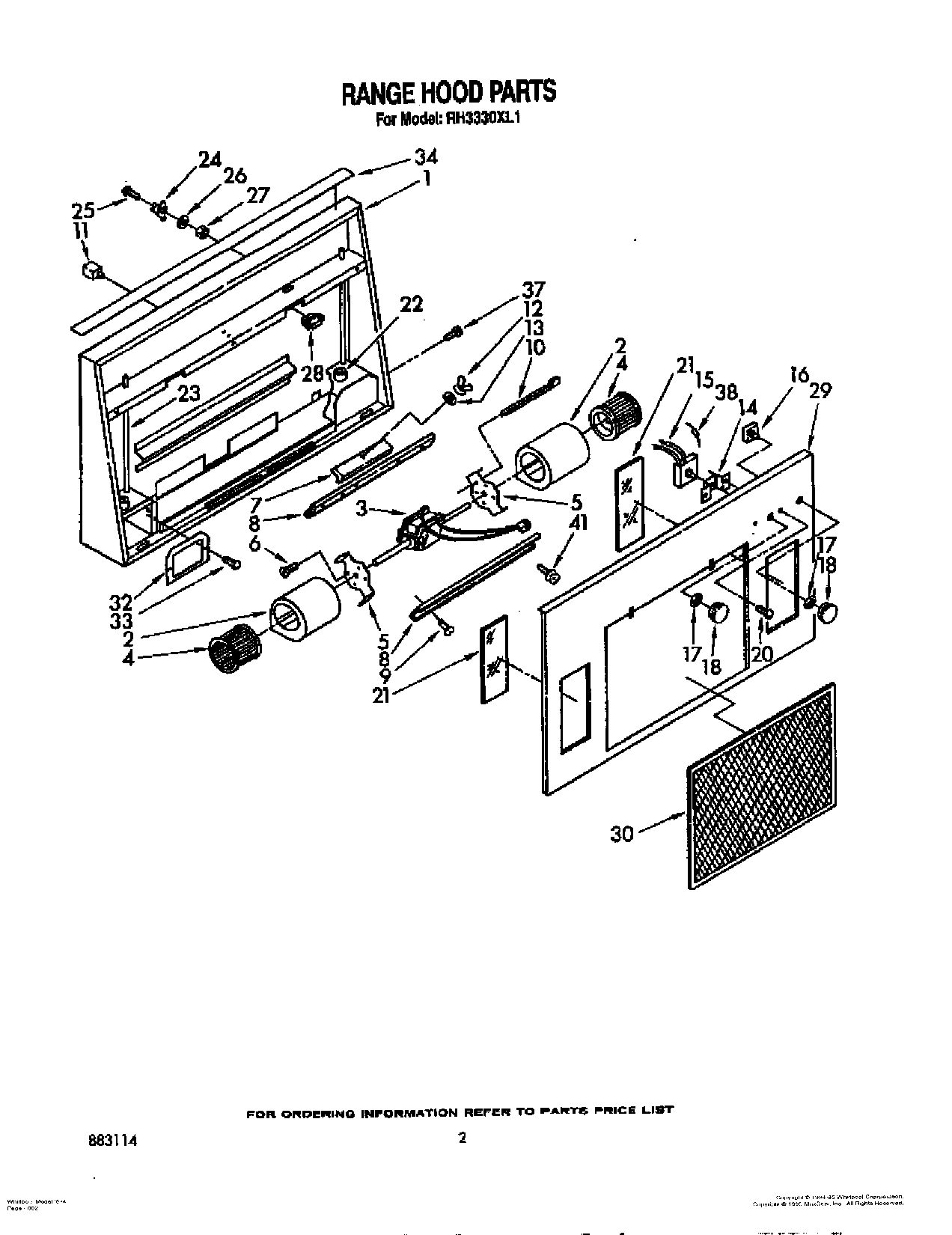

RH3330XL1 02 – RANGE HOOD PARTS

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
1	Main Body (Not a Serviceable Part)
2	Wrapper (2)
3	Motor
4	Blower Wheel (2)
5	Bracket, Motor (2)
6	WP489128 Whirlpool Refrigerator Screw
7	Bracket, Blower Mounting
8	Channel, Blower (2)
10	WPW10339879 Whirlpool Wire Tie
11	Outlet, 120V
12	W10080180 Whirlpool Nut
13	Washer
14	Bracket, Switch
15	Switch, Fan Motor
16	Switch, Rotary (3 – Speed Fan)
17	Nut, 15/32-32
18	Knob (2)
20	Screw, 8 x 1/4 (7)
21	Cover, Light
22	Receptacle, Light
23	Tubing, Aluminum (2)
24	Switch, Thermal
25	Screw, 6-32 x 1/4 (2)
26	Washer (2)
27	Nut, 6-32 (2)
28	Receptacle, Motor Wire
29	Panel, Front
30	Filter, Aluminum
32	Cover, Wiring Box (2)
33	Screw, 8 x 1/2 (4)
34	Nameplate
37	Screw, 10-32 x 3/8
38	Diode, Wire
41	Paint, Cord Brown Spray (13 Oz.)
41	Ductless Kit Model RCH3660
41	Screw, Thumb 6-32 (2)
41	Order Blank, Filter
