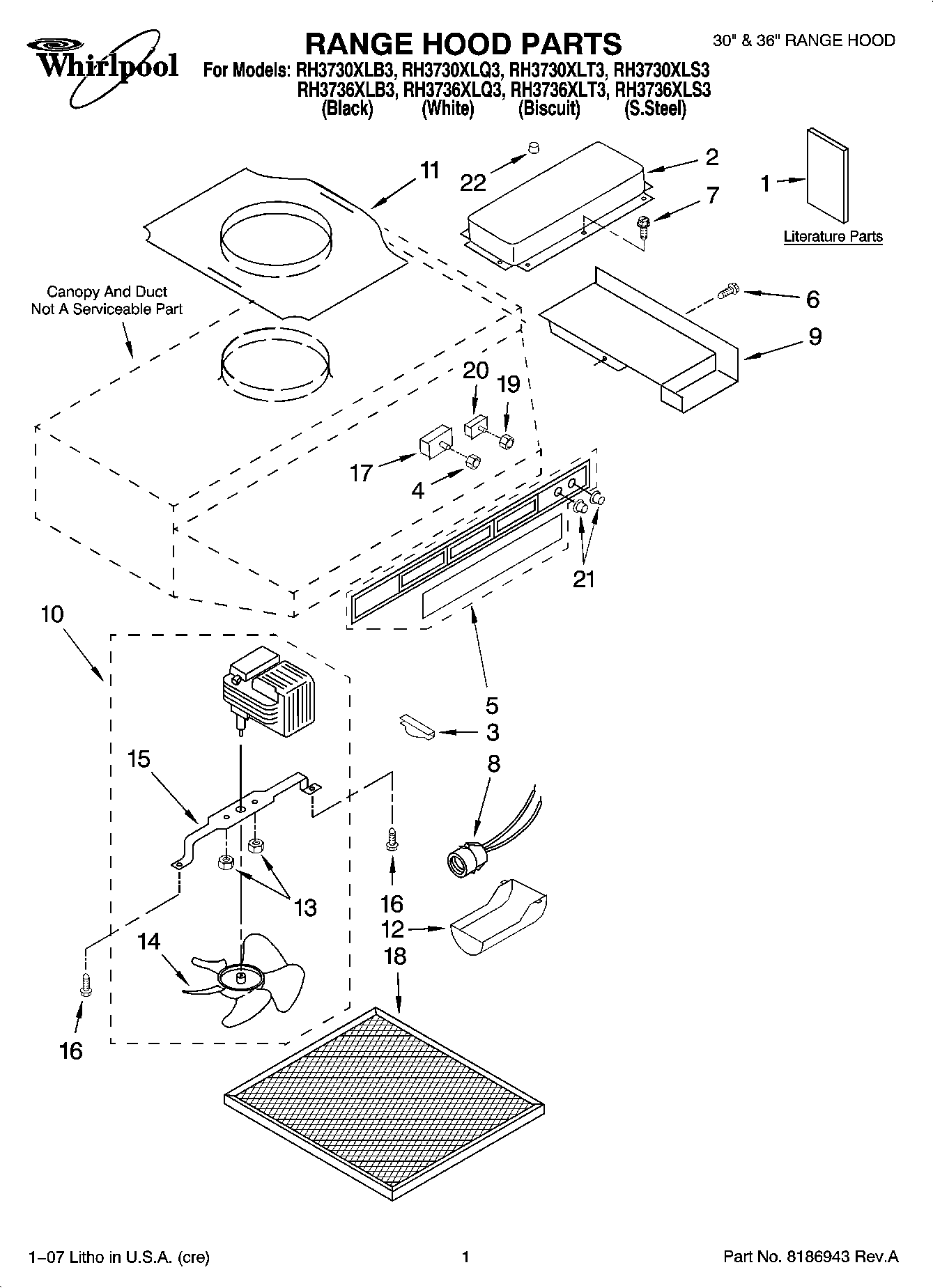

RH3730XLT3 01 – RANGE HOOD PARTS

Products

PositionProduct
1Guide, Use & Care
2Damper
3Support/Retainer (Filter)
4Nut 3/8-32
5Nameplate (White)
5Nameplate (Black)
6Screw
7WP7101P246-60 Whirlpool Screw
8Receptacle, Light Bulb not incl-75W
9Cover, Wiring
10Motor/Fan Assembly
11Plate, Duct
12WP8186930 Whirlpool Light Lens Assembly
13NUT
14Blade, Fan
15Bracket, Motor
16Screw
17Switch, Fan
18FILTER
19Nut 15/32-32
20Switch, Light
21Knob (2) (White)
21WP8190792 Whirlpool Control Knob
21Knob (2) (Biscuit)
22Diode Assembly
22Bumper, Damper
22Harness, Wire (Incl 8, 17 & 20)
22Screw
224378581 Whirlpool Microwave Range Vent Hood Charcoal Filter
22Following Parts Not Illustrated
