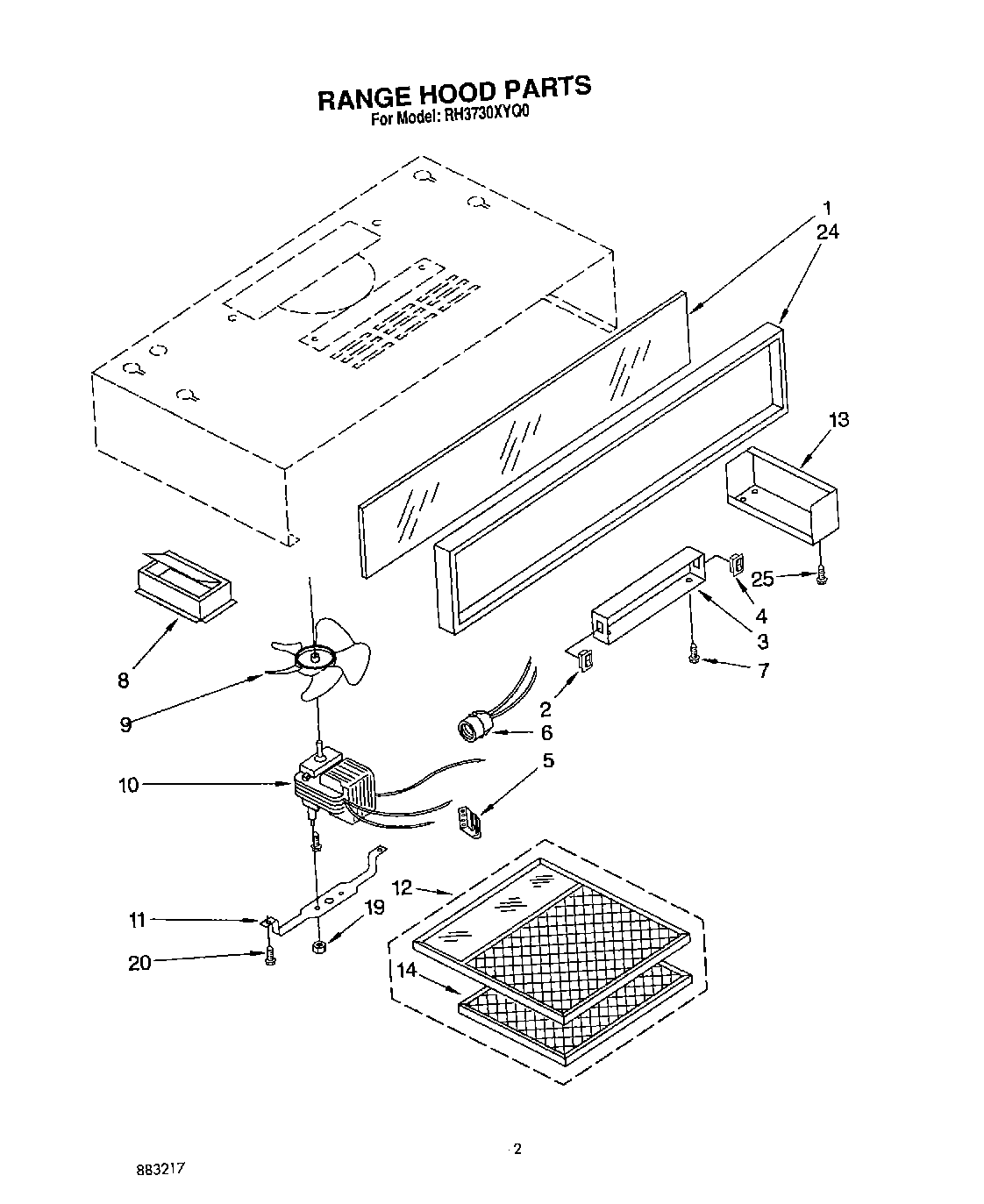

RH3730XYB0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions Installation
	Wiring Diagram
	Order Blank, Filter
1	Name Plate (White)
1	Name Plate (Black)
2	Switch, Rocker (2 – Speed Fan) (Black)
2	Switch, Light (White)
3	Cover, Switch (White)
3	Cover, Switch (Black)
3	Cover, Switch (Almond)
4	W10673703 Whirlpool Rocker Switch
5	Receptacle, Motor Wire
6	Receptacle, Light
7	WP486579 Whirlpool Air Conditioner Screw
8	Damper Assembly
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP8190232 Whirlpool Refrigerator Light Lens and Filter
13	Box, Wiring (White)
13	Box, Wiring (Almond)
13	Box, Wiring (Black)
14	Pad, Charcoal (Replacement, Package Of 3)
19	WP488130 Whirlpool Air Conditioner Nut
20	Screw, 8 x 1/2 (4)
24	Trim, Decorator (Almond)
24	Trim, Decorator (White)
24	Trim, Decorator (Black)
25	WP489069 Whirlpool Compactor Screw
