RH3730XYQ0 02 – SECTION

RH3730XYQ0 02 – SECTION

Written by

in

RH3730XYQ0 02 – SECTION

Products

PositionProduct

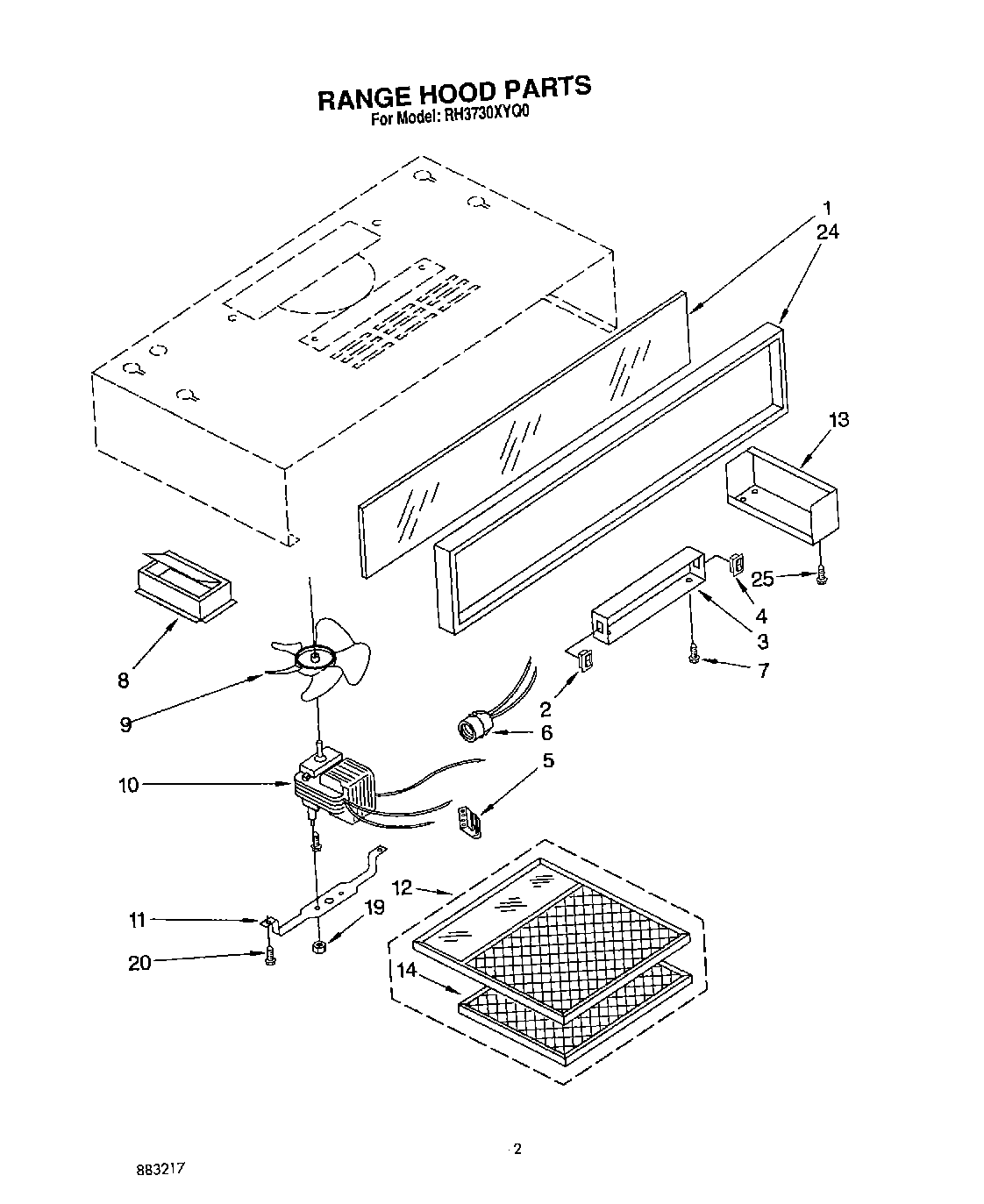

Repair Parts List
Instructions Installation
Wiring Diagram
Order Blank, Filter
1Name Plate (White)
1Name Plate (Black)
2Switch, Rocker (2 – Speed Fan) (Black)
2Switch, Light (White)
3Cover, Switch (White)
3Cover, Switch (Black)
3Cover, Switch (Almond)
4W10673703 Whirlpool Rocker Switch
5Receptacle, Motor Wire
6Receptacle, Light
7WP486579 Whirlpool Air Conditioner Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Box, Wiring (White)
13Box, Wiring (Almond)
13Box, Wiring (Black)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
24Trim, Decorator (Almond)
24Trim, Decorator (White)
24Trim, Decorator (Black)
25WP489069 Whirlpool Compactor Screw
