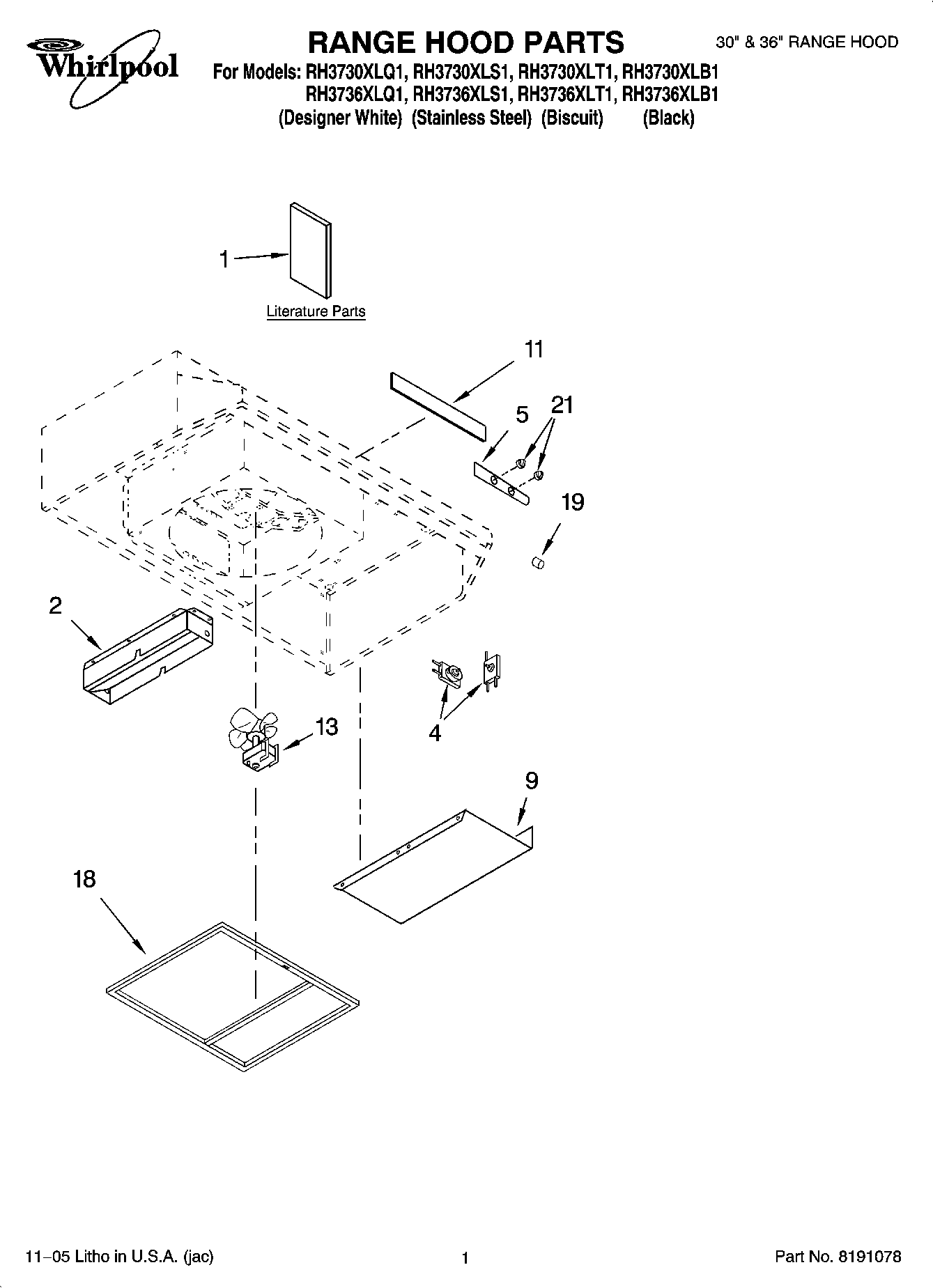

RH3736XLT1 01 – RANGE HOOD PARTS

Products

Position	Product
1	Guide, Use & Care
2	Damper
4	Harness, Wire (Includes Switchs)
5	Nameplate (White)
5	Nameplate (Black)
5	Nameplate (Biscuit)
9	Cover, Wiring (White)
9	Cover, Wiring (Black)
9	Cover, Wiring (Biscuit)
11	Baffle (Biscuit)
11	Baffle (Black)
11	Baffle (White)
13	Motor/Fan Blade
18	Filter
19	Socket, Lamp
21	Knob (White)
21	Knob (Black)
21	Knob (Biscuit)
