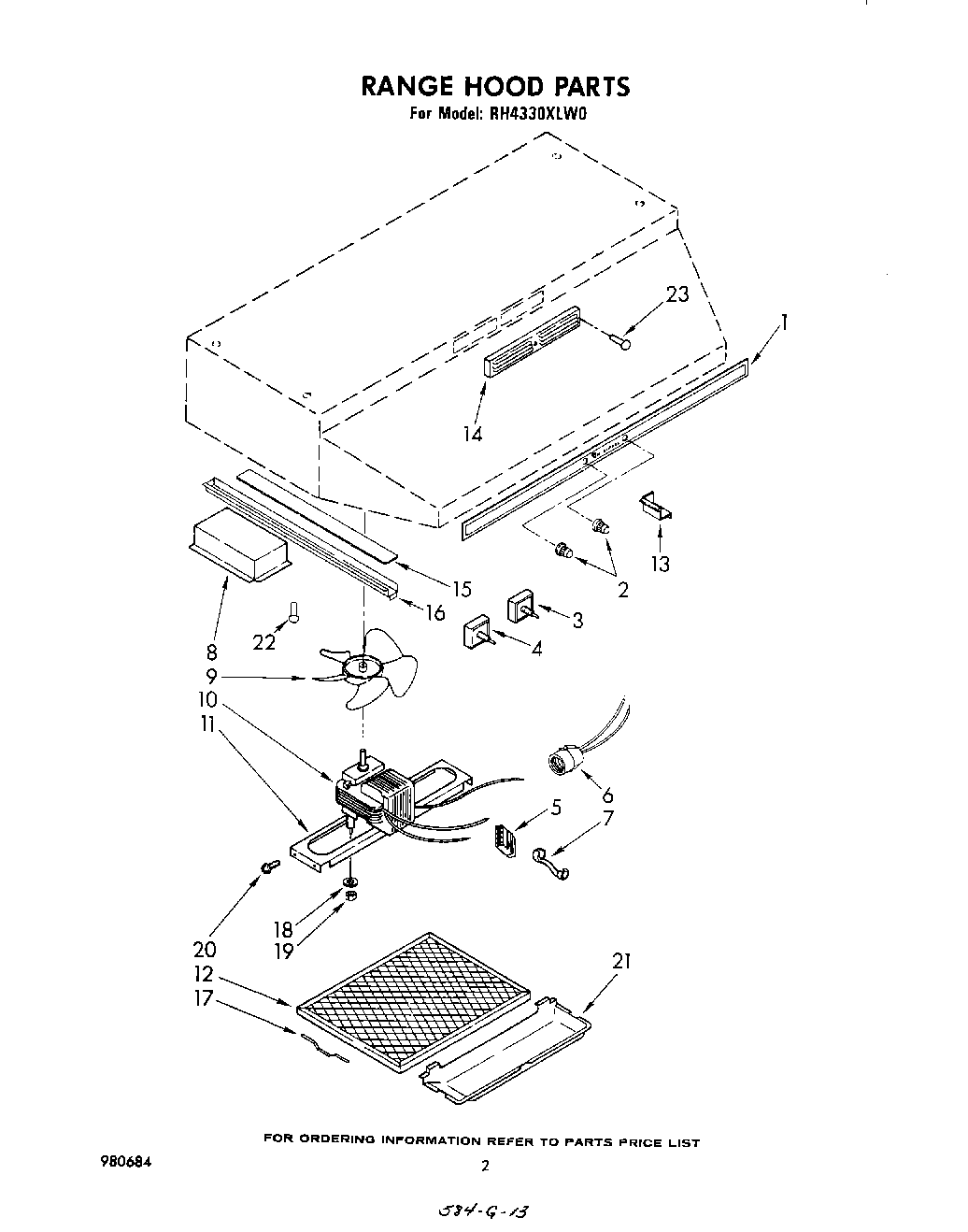

RH4330XLW0 02 – SECTION

RH4330XLW0 02 – SECTION

Written by

in

RH4330XLW0 02 – SECTION

Products

PositionProduct
Instructions, Installation & Operating
Repair Parts List
Order Blank, Filter
1Nameplate
2Knob, Control (2)
3Switch, Rotary (3 – Speed Fan)
4Switch, Rotary (Light)
5Receptacle, Motor Wire
6Receptacle, Light
7Bushing
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12Filter, Aluminum
13Box, Wiring (Almond)
13Box, Wiring (Stainless Steel)
13Box, Wiring (Toast)
13Box, Wiring (Platinum)
13Box, Wiring (Golden Harvest)
13Box, Wiring (New Avocado)
13Box, Wiring (Coffee)
13Box, Wiring (White)
14Vent, Louvered (Golden Harvest)
14Vent, Louvered (Platinum)
14Vent, Louvered (Toast)
14Vent, Louvered (Stainless Steel)
14Vent, Louvered (New Avocado)
14Vent, Louvered (Coffee)
14Vent, Louvered (Almond)
14Vent, Louvered (White)
15Plate, Cover
16Channel, Wire
17Spring, Filter
18Washer, No. 8 (2)
19WP486255 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
21Lens, Light
22Rivet, Pop (8)
23Rivet, Black (2)
23Duct Kit (Model RCH4660)
