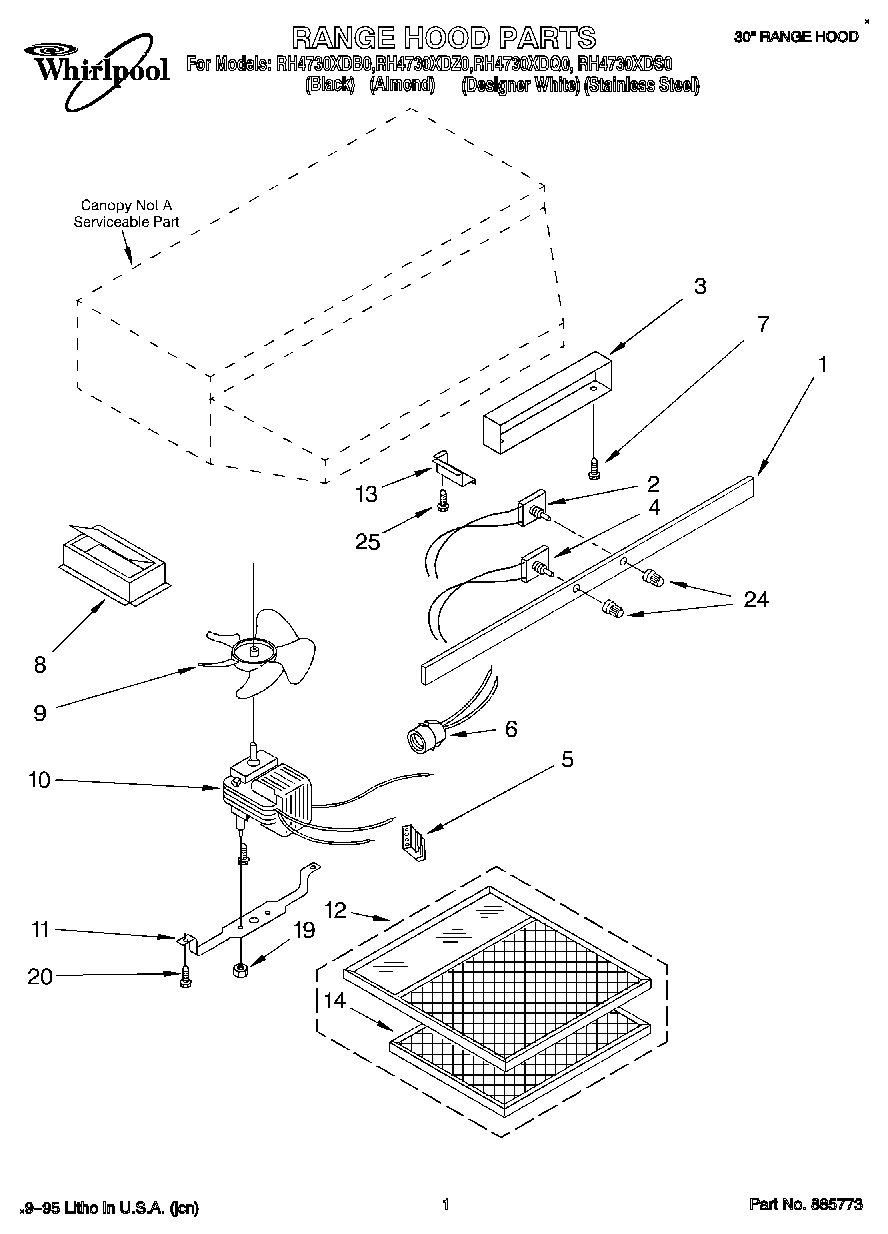

RH4730XDB0 01 – SECTION

Products

Position	Product
	Wiring Diagram
	Instruction Installation
	Order Blank, Filter
1	Name Plate
1	Name Plate (Almond Model)
1	Name Plate (Black Model)
1	Name Plate (Stainless Model)
2	Switch, Rotary (3 – Speed Fan)
3	Cover, (Stainless Microcomputer)
3	Cover, Switch (Almond)
3	Cover, Switch (White)
3	Cover, Switch (Black)
4	Switch, Rotary (Light)
5	Receptacle, Motor Wire
6	Receptacle, Light
7	WP486579 Whirlpool Air Conditioner Screw
8	Damper Assembly
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP8190232 Whirlpool Refrigerator Light Lens and Filter
13	Cover, Wiring (Stainless Steel)
13	Cover, Wiring (Almond)
13	Cover, wiring (White)
13	Cover, wiring (Black)
14	Pad, Charcoal (Replacement, Package Of 3)
19	WP488130 Whirlpool Air Conditioner Nut
20	Screw, 8 x 1/2 (4)
24	Knob, Control (2) (Stainless Model)
24	Knob, Control (2) (Black Model)
24	Knob, Control (2)
24	Knob, Control (2) (Almond Model)
25	WP489069 Whirlpool Compactor Screw
