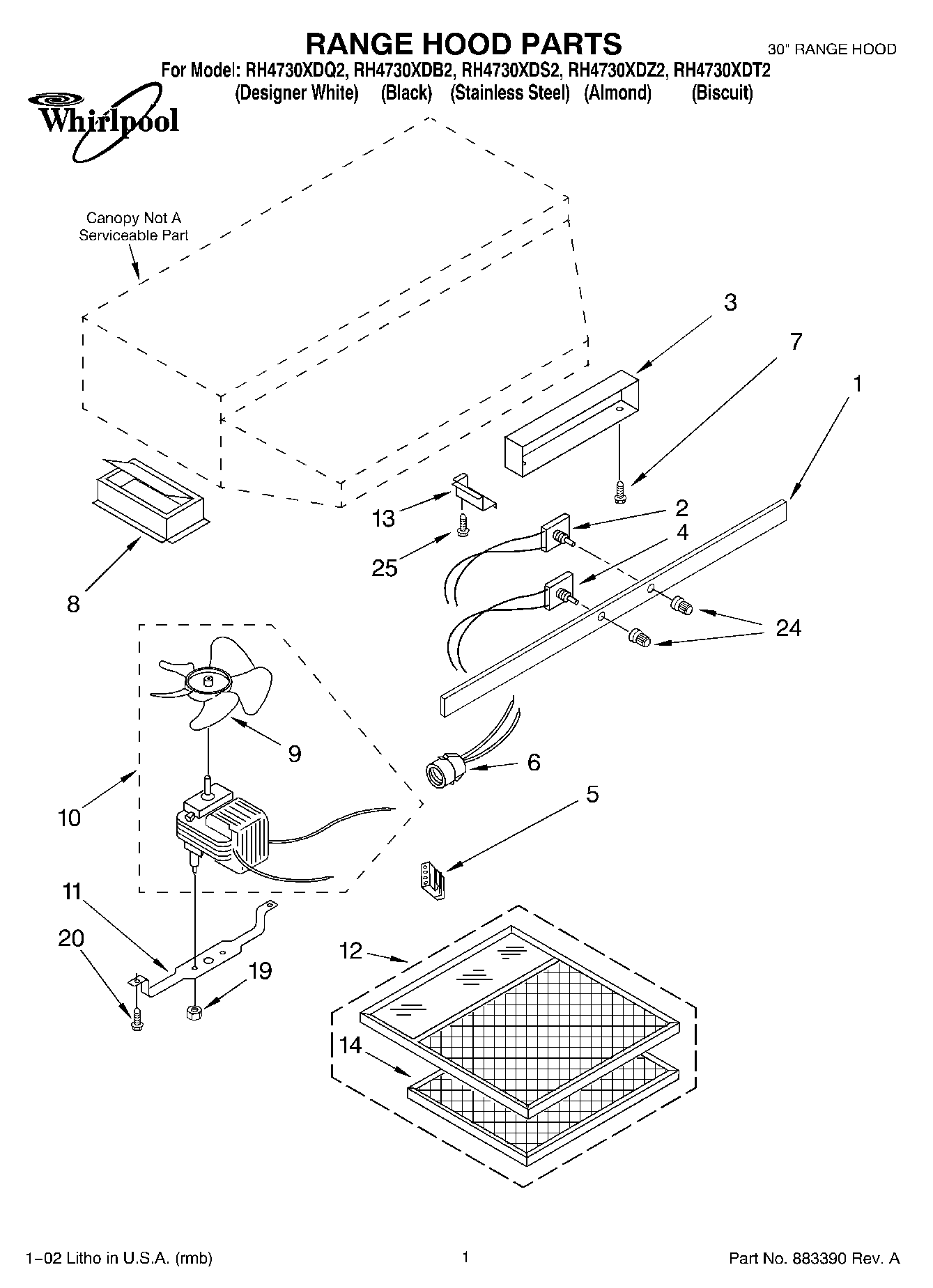

RH4730XDT2 01 – SECTION

Products

Position	Product
	Instruction Installation
	Order Blank, Filter
	Wiring Diagram
1	Name Plate (Stainless Model)
1	Name Plate (Black Model)
1	Name Plate (Almond Model)
1	Name Plate
1	Name Plate (Biscuit)
2	Switch, Rotary (Light)
3	Cover, (Stainless Microcomputer)
3	Cover, Switch (Black)
3	Cover, Switch (Almond)
3	Cover, Switch (White)
3	Cover, Switch (Biscuit)
4	Switch, Rotary (3 – Speed Fan)
5	Receptacle, Motor Wire
6	Receptacle, Light
7	WP486579 Whirlpool Air Conditioner Screw
8	Damper Assembly
9	Blade, Fan
10	Motor/Blade Assy
11	Bracket, Motor
12	WP8190232 Whirlpool Refrigerator Light Lens and Filter
13	Cover, wiring (White)
13	Cover, Wiring (Almond)
13	Cover, Wiring (Stainless Steel)
13	Cover, wiring (Black)
14	Pad, Charcoal (Replacement, Package Of 3)
19	WP488130 Whirlpool Air Conditioner Nut
20	60001022 Whirlpool Oven Screw
24	Knob, Control (2) (Almond Model)
24	Knob, Control (2) (Black Model)
24	Knob, Control (2) (Stainless Model)
24	Knob (2) (Biscuit)
24	Knob, Control (2)
25	WP489069 Whirlpool Compactor Screw
