PositionProduct

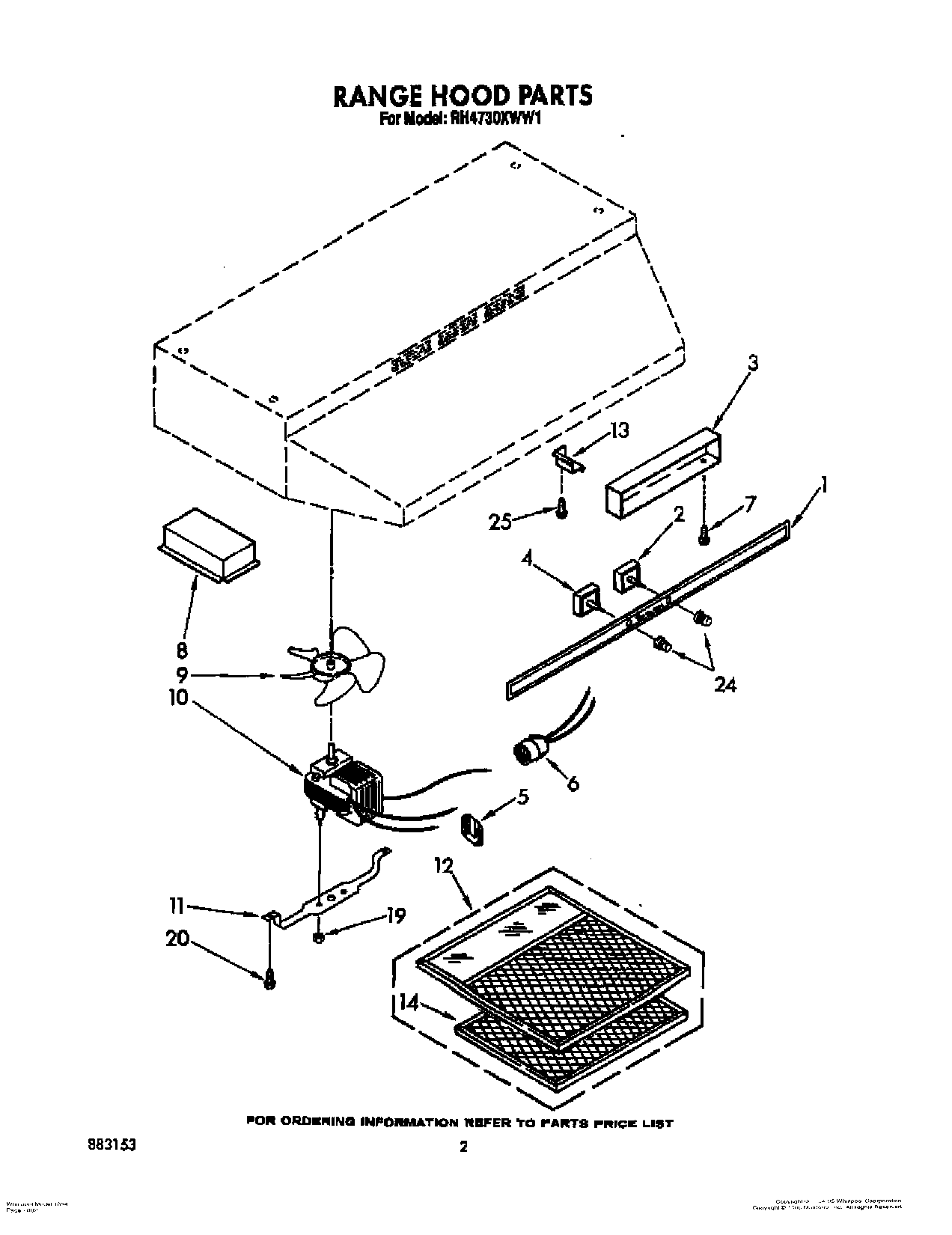

Repair Parts List
Wiring Diagram
Order Blank, Filter
Instructions, Installation
1Nameplate
2Switch, Rotary (3 – Speed Fan)
3Cover, (Stainless Microcomputer)
3Cover, Switch (Black)
3Cover, Switch (Almond)
3Cover, Switch (White)
4Switch, Rotary (Light)
5Receptacle, Motor Wire
6Receptacle, Light
7WP486579 Whirlpool Air Conditioner Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, wiring (White)
13Cover, wiring (Black)
13Cover, Wiring (Almond)
13Cover, Wiring (Stainless Steel)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
24Knob, Control (2)
25WP489069 Whirlpool Compactor Screw
