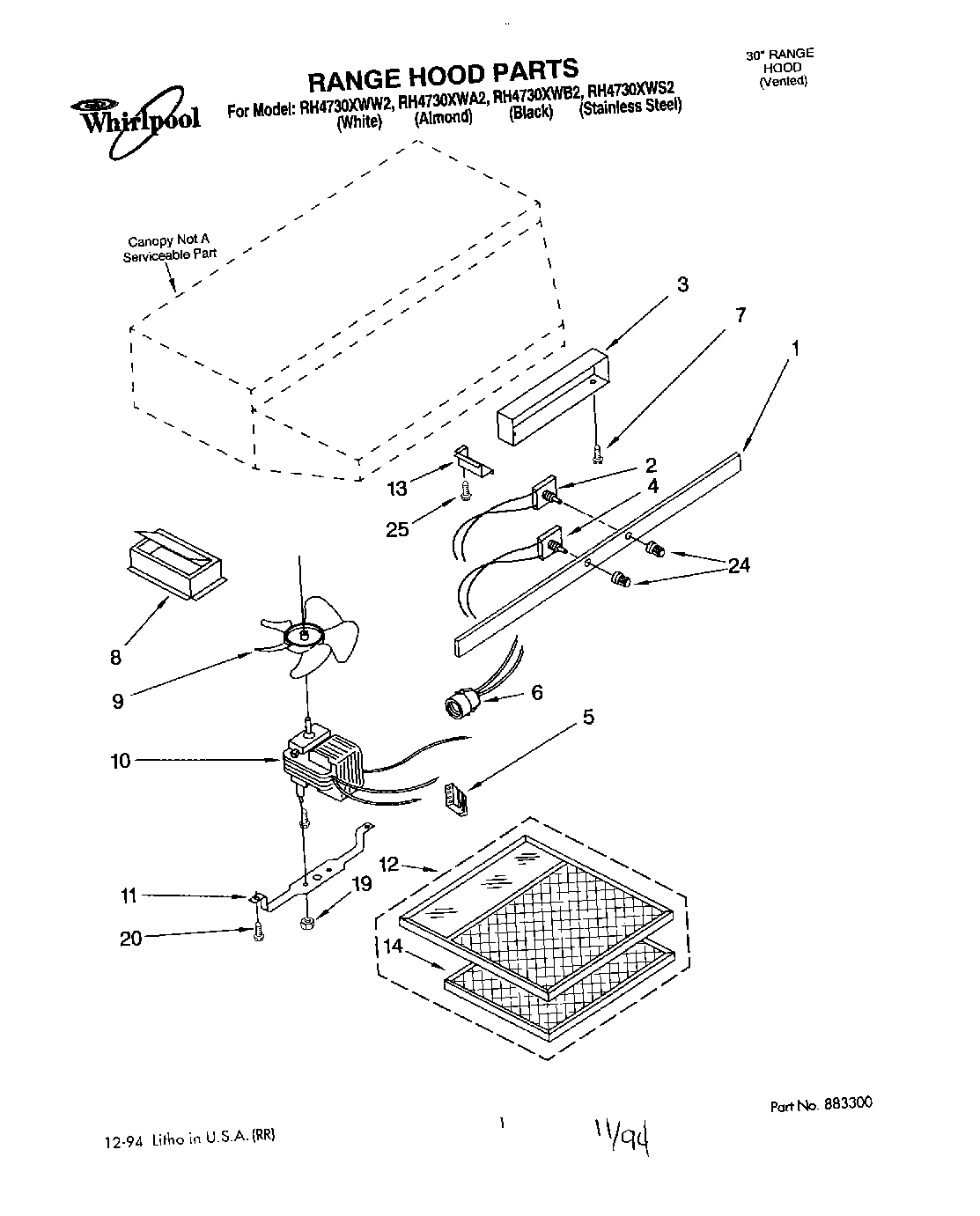

RH4730XWW2 01 – SECTION

RH4730XWW2 01 – SECTION

Written by

in

RH4730XWW2 01 – SECTION

Products

PositionProduct
Instructions, Installation
Order Blank, Filter
Wiring Diagram
1Name Plate
2Switch, Rotary (3 – Speed Fan)
3Cover, Switch (White)
3Cover, (Stainless Microcomputer)
3Cover, Switch (Black)
3Cover, Switch (Almond)
4Switch, Rotary (Light)
5Receptacle, Motor Wire
6Receptacle, Light
7WP486579 Whirlpool Air Conditioner Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, Wiring (Stainless Steel)
13Cover, wiring (White)
13Cover, Wiring (Almond)
13Cover, wiring (Black)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
24Knob, Control (2) (Black Model)
25WP489069 Whirlpool Compactor Screw
