| Wiring Diagram |
| Instruction Installation |
| Order Blank, Filter |

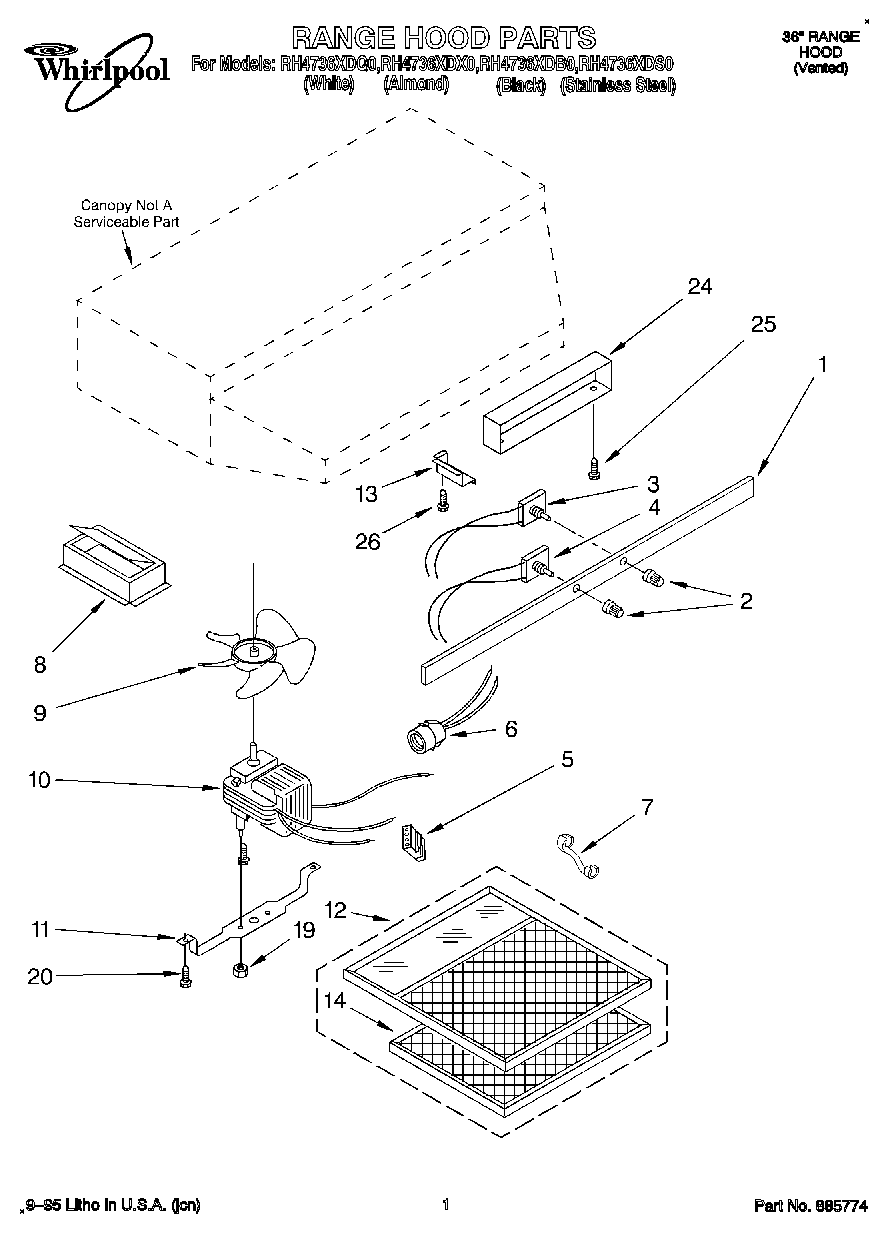

| 1 | Nameplate (Almond) |
| 1 | Nameplate (Black Model) |
| 1 | Nameplate (Stainless Model) |
| 1 | Nameplate (White) |
| 2 | Knob, Control (2) (Almond Model) |
| 2 | Knob, Control (2) |
| 2 | Knob, Control (2) (Black Model) |
| 2 | Knob, Control (2) (Stainless Model) |
| 3 | Switch, Rotary (3 - Speed Fan) |
| 4 | Switch, Rotary (Light) |
| 5 | Receptacle, Motor Wire |
| 6 | Receptacle, Light |
| 7 | Bushing |
| 8 | Damper Assembly |
| 9 | Blade, Fan |
| 10 | Motor, 2-Speed |
| 11 | Bracket, Motor |
| 12 | WP8190232 Whirlpool Refrigerator Light Lens and Filter |
| 13 | Cover, Wiring (Stainless Steel) |
| 13 | Cover, wiring (White) |
| 13 | Cover, wiring (Black) |
| 13 | Cover, Wiring (Almond) |
| 14 | Pad, Charcoal (Replacement, Package Of 3) |
| 19 | WP488130 Whirlpool Air Conditioner Nut |
| 20 | Screw, 8 x 1/2 (4) |
| 24 | Cover, (Stainless Microcomputer) |
| 24 | Cover, Switch (Black) |
| 24 | Cover, Switch (Almond) |
| 24 | Cover, Switch (White) |
| 25 | WP486579 Whirlpool Air Conditioner Screw |
| 26 | WP489069 Whirlpool Compactor Screw |
