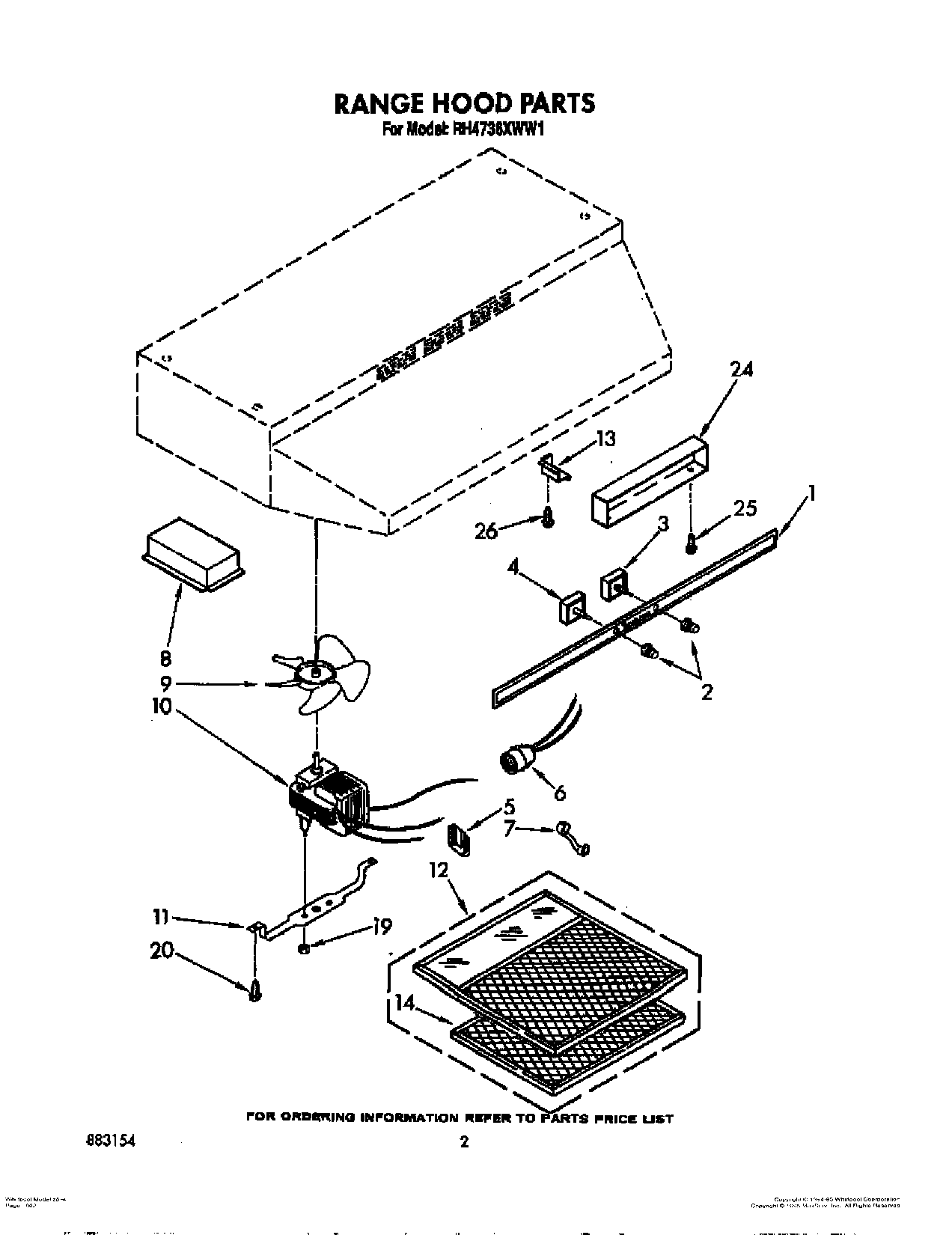

RH4736XWB1 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Wiring Diagram
	Order Blank, Filter
1	Nameplate
2	Knob, Control (2)
3	Switch, Rotary (3 – Speed Fan)
4	Switch, Rotary (Light)
5	Receptacle, Motor Wire
6	Receptacle, Light
7	Bushing
8	Damper Assembly
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP8190232 Whirlpool Refrigerator Light Lens and Filter
13	Cover, Wiring (Almond)
13	Cover, wiring (White)
13	Cover, wiring (Black)
13	Cover, Wiring (Stainless Steel)
14	Pad, Charcoal (Replacement, Package Of 3)
19	WP488130 Whirlpool Air Conditioner Nut
20	Screw, 8 x 1/2 (4)
24	Cover, (Stainless Microcomputer)
24	Cover, Switch (Black)
24	Cover, Switch (Almond)
24	Cover, Switch (White)
25	WP486579 Whirlpool Air Conditioner Screw
26	WP489069 Whirlpool Compactor Screw
