RH4736XWB2 01 – SECTION

RH4736XWB2 01 – SECTION

Written by

in

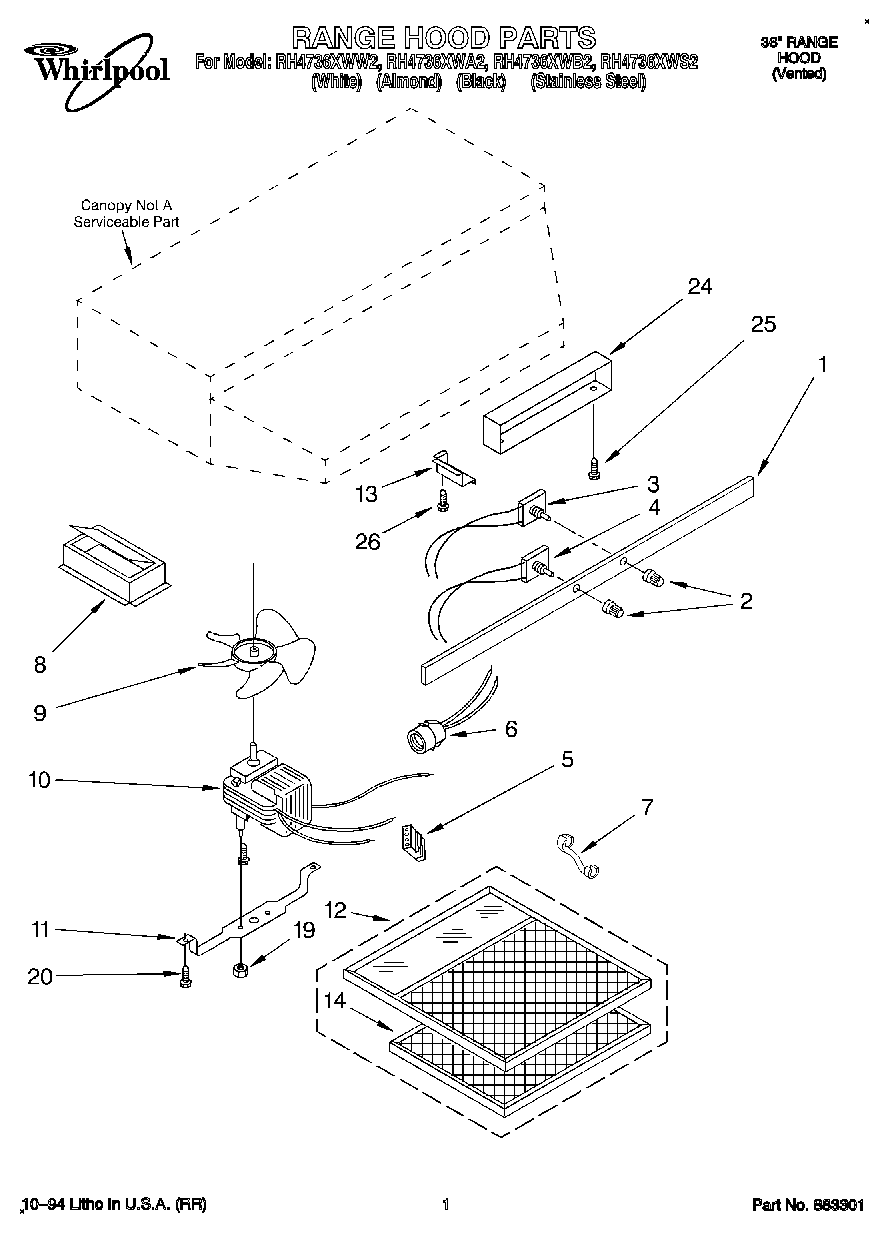

RH4736XWB2 01 – SECTION

Products

PositionProduct
Wiring Diagram
Instructions, Installation
Order Blank, Filter
1Nameplate
2Knob, Control (2) (Black Model)
3Switch, Rotary (3 – Speed Fan)
4Switch, Rotary (Light)
5Receptacle, Motor Wire
6Receptacle, Light
7Bushing
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, wiring (Black)
13Cover, Wiring (Stainless Steel)
13Cover, wiring (White)
13Cover, Wiring (Almond)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
24Cover, (Stainless Microcomputer)
24Cover, Switch (Black)
24Cover, Switch (Almond)
24Cover, Switch (White)
25WP486579 Whirlpool Air Conditioner Screw
26WP489069 Whirlpool Compactor Screw
