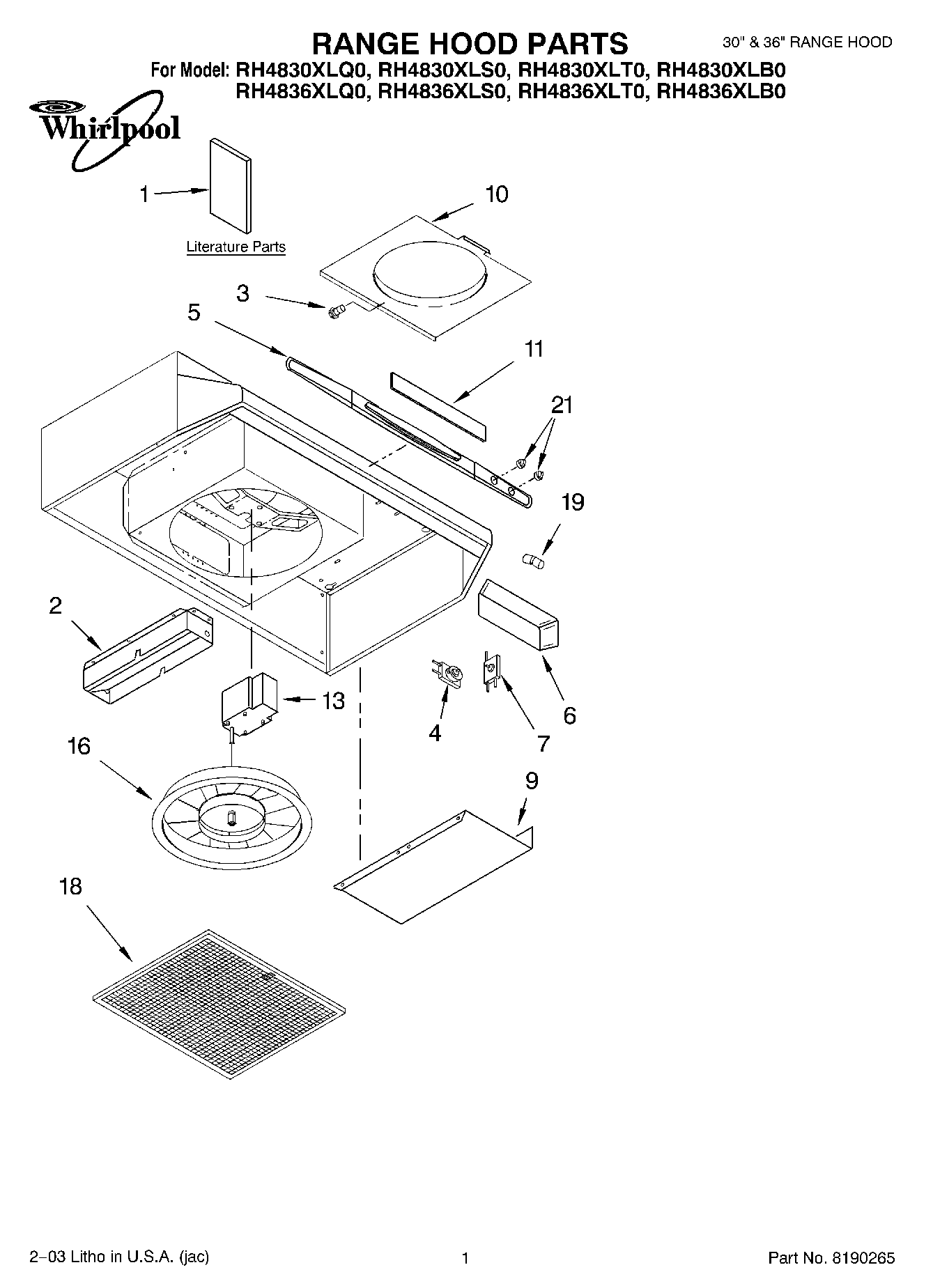

RH4830XLT0 01 – RANGE HOOD PARTSadmin2025-04-26T08:52:57+00:00RH4830XLT0 01 – RANGE HOOD PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Use & Care) |
| 2 | Damper |
| 3 | WP3177991 Whirlpool Screw |
| 4 | Switch, Fan |
| 5 | Grille, Vent (Biscuit) |
| 5 | Grille, Vent (White) |
| 5 | Grille, Vent (Black) |
| 6 | WP8190212 Whirlpool Light Lens |
| 7 | Switch, Light |
| 9 | Cover, Wiring |
| 10 | Plate, Duct |
| 11 | Baffle (Biscuit) |
| 11 | Baffle (White) |
| 11 | Baffle (Black) |
| 13 | Motor |
| 16 | WP8191110 Whirlpool Fan Blade |
| 18 | 4396387 Whirlpool Range Microwave Vent Hood Grease Filter |
| 19 | Socket, Lamp (2) |
| 21 | Knob (Biscuit) |
| 21 | Knob (White) |
| 21 | Knob (Black) |
| 21 | Knob Miscellaneous (Pin, Hitch) |
| 21 | Knob Miscellaneous (Filter, Non-Ducted) |
