RH4930XDB2 01 – SECTION

RH4930XDB2 01 – SECTION

Written by

in

RH4930XDB2 01 – SECTION

Products

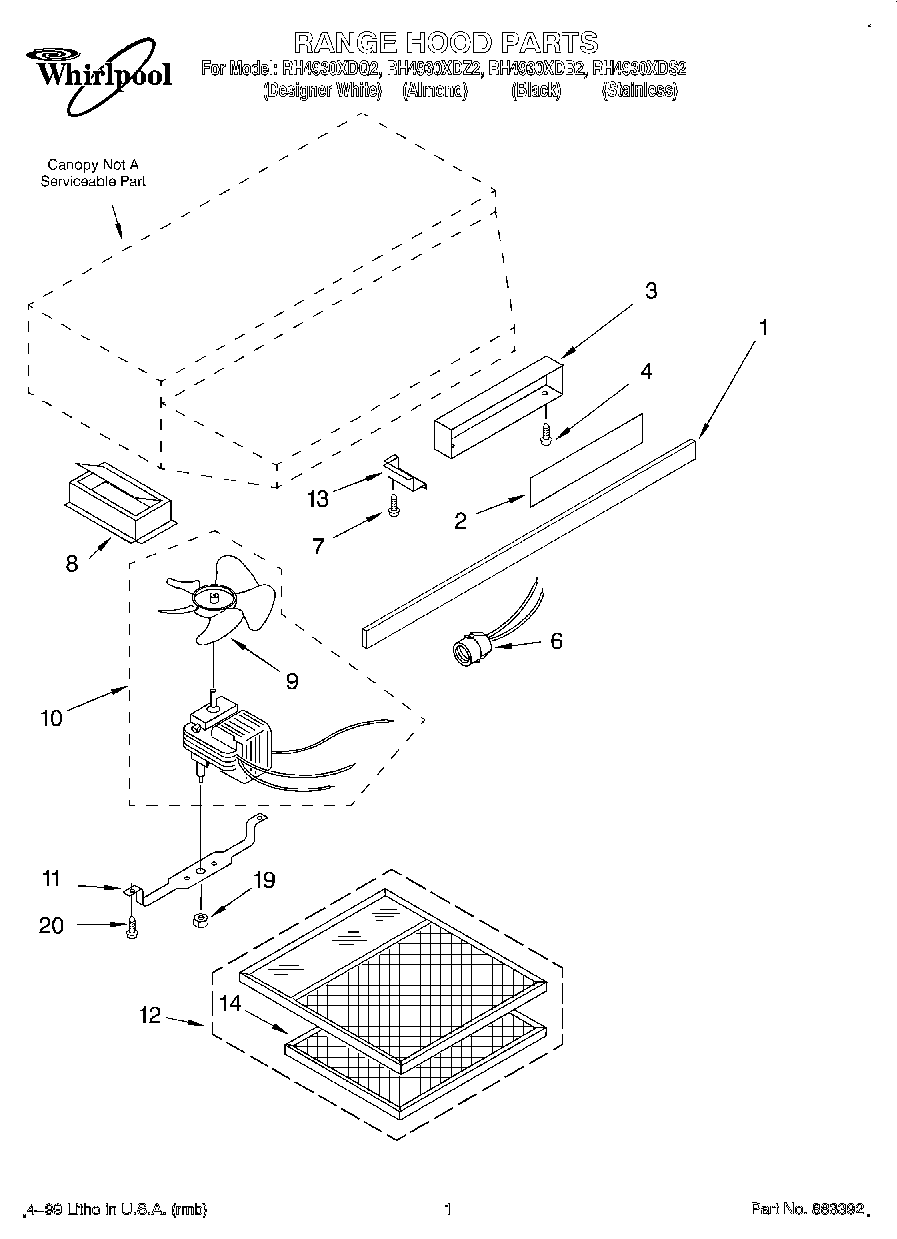

PositionProduct
Instructions, Installation Operating
Order Blank, Filter
Wiring Diagram
1Switch Membrane (Black Model)
1Switch Membrane (Stainless Model)
1Switch Membrane (Almond Model)
1Switch Membrane (White Model)
2Microcomputer
3Cover, Switch (White)
4WP486579 Whirlpool Air Conditioner Screw
6Receptacle, Light
7WP489069 Whirlpool Compactor Screw
8Damper Assembly
9Blade, Fan
10Motor/Blade Assy.
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, wiring (White)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
