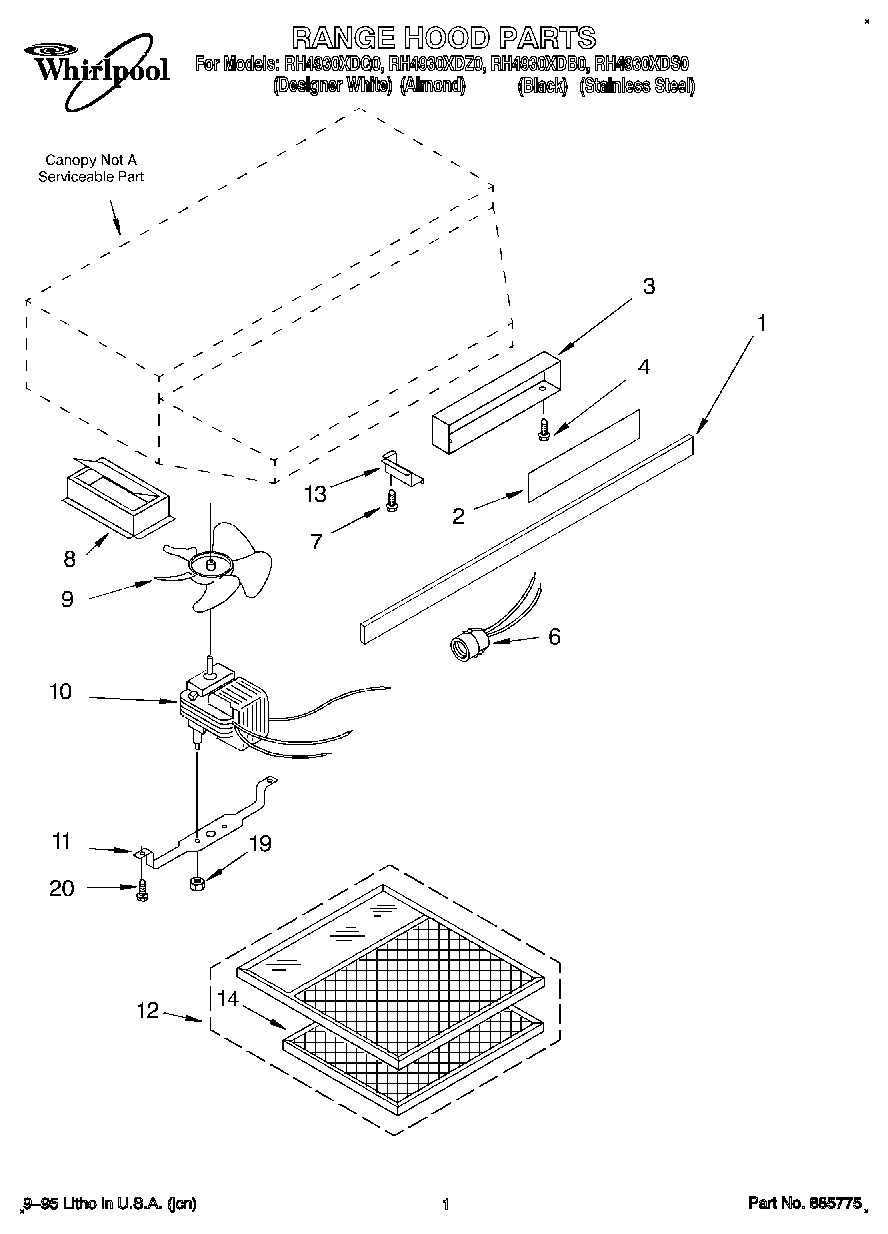

RH4930XDS0 01 – SECTION

Products

PositionProduct
Instructions, Installation Operating
Order Blank, Filter
1Switch Membrane (Stainless Model)
1Switch Membrane (Black Model)
1Switch Membrane (Almond Model)
1Switch Membrane (White Model)
2Microcomputer
3Cover, Switch (White)
4WP486579 Whirlpool Air Conditioner Screw
5Receptacle, Motor Wire
6Receptacle, Light
7WP489069 Whirlpool Compactor Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, wiring (White)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
