| Instructions, Installation & Operating |
| Repair Parts List |
| Order Blank, Filter |

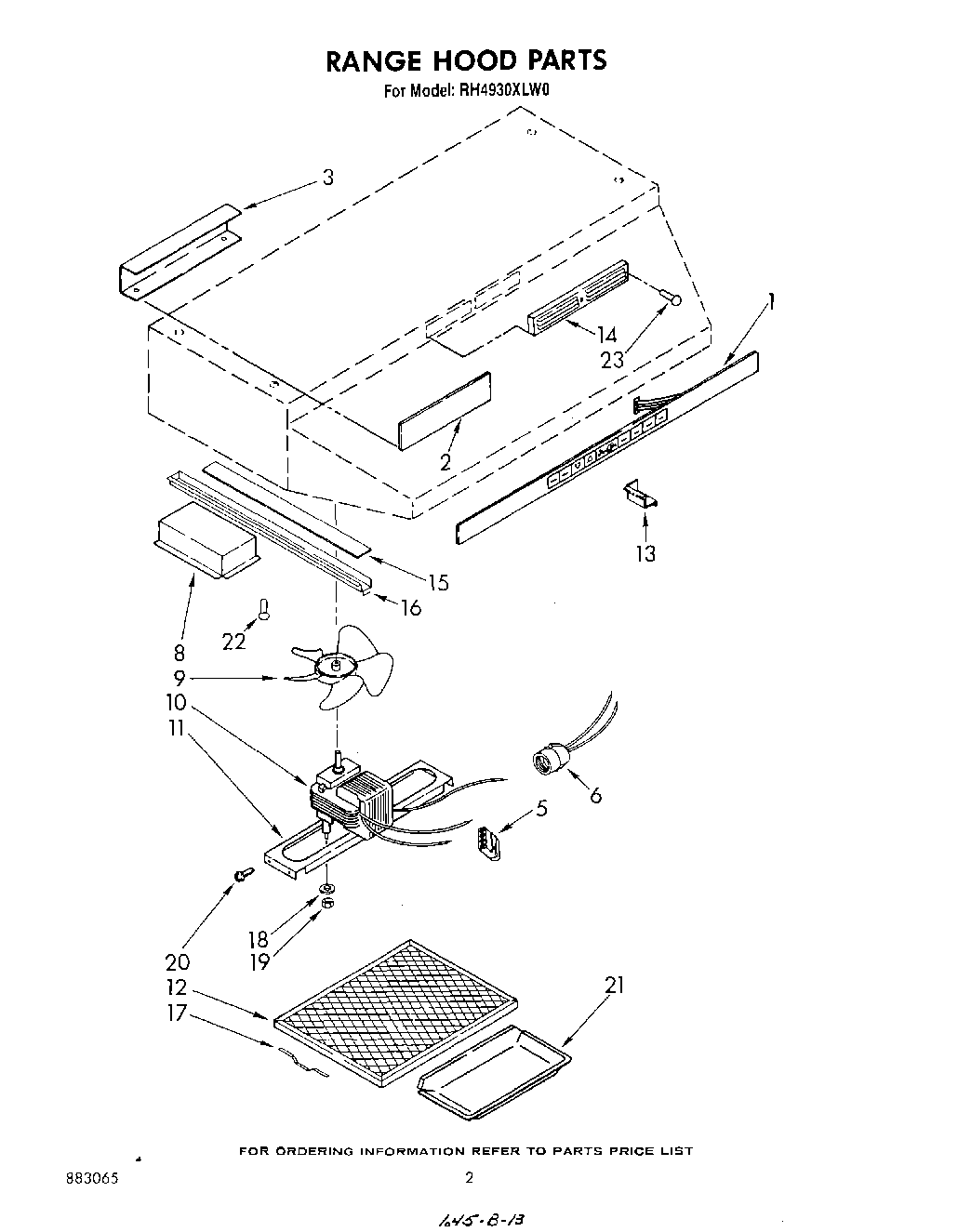

| 1 | Switch, Membrane |
| 2 | Microcomputer |
| 3 | Cover, Microcomputer |
| 5 | Receptacle, Motor Wire |
| 6 | Receptacle, Light |
| 8 | Damper Assembly |
| 9 | Blade, Fan |
| 10 | Motor, 2-Speed |
| 11 | Bracket, Motor |
| 12 | Filter, Aluminum |
| 13 | Box, Wiring (Platinum) |
| 13 | Box, Wiring (Toast) |
| 13 | Box, Wiring (Stainless Steel) |
| 13 | Box, Wiring (Almond) |
| 13 | Box, Wiring (Golden Harvest) |
| 13 | Box, Wiring (New Avocado) |
| 13 | Box, Wiring (Coffee) |
| 13 | Box, Wiring (White) |
| 14 | Vent, Louvered (Platinum) |
| 14 | Vent, Louvered (Toast) |
| 14 | Vent, Louvered (Stainless Steel) |
| 14 | Vent, Louvered (Golden Harvest) |
| 14 | Vent, Louvered (New Avocado) |
| 14 | Vent, Louvered (Coffee) |
| 14 | Vent, Louvered (White) |
| 14 | Vent, Louvered (Almond) |
| 15 | Plate, Cover |
| 16 | Channel, Wire |
| 17 | Spring, Filter |
| 18 | Washer, No. 8 (2) |
| 19 | WP486255 Whirlpool Air Conditioner Nut |
| 20 | Screw, 8 x 1/2 (4) |
| 21 | Lens, Light |
| 22 | Rivet, Pop (8) |
| 23 | Duct Kit (Model RCH4660) |
| 23 | Rivet, Black (2) |
