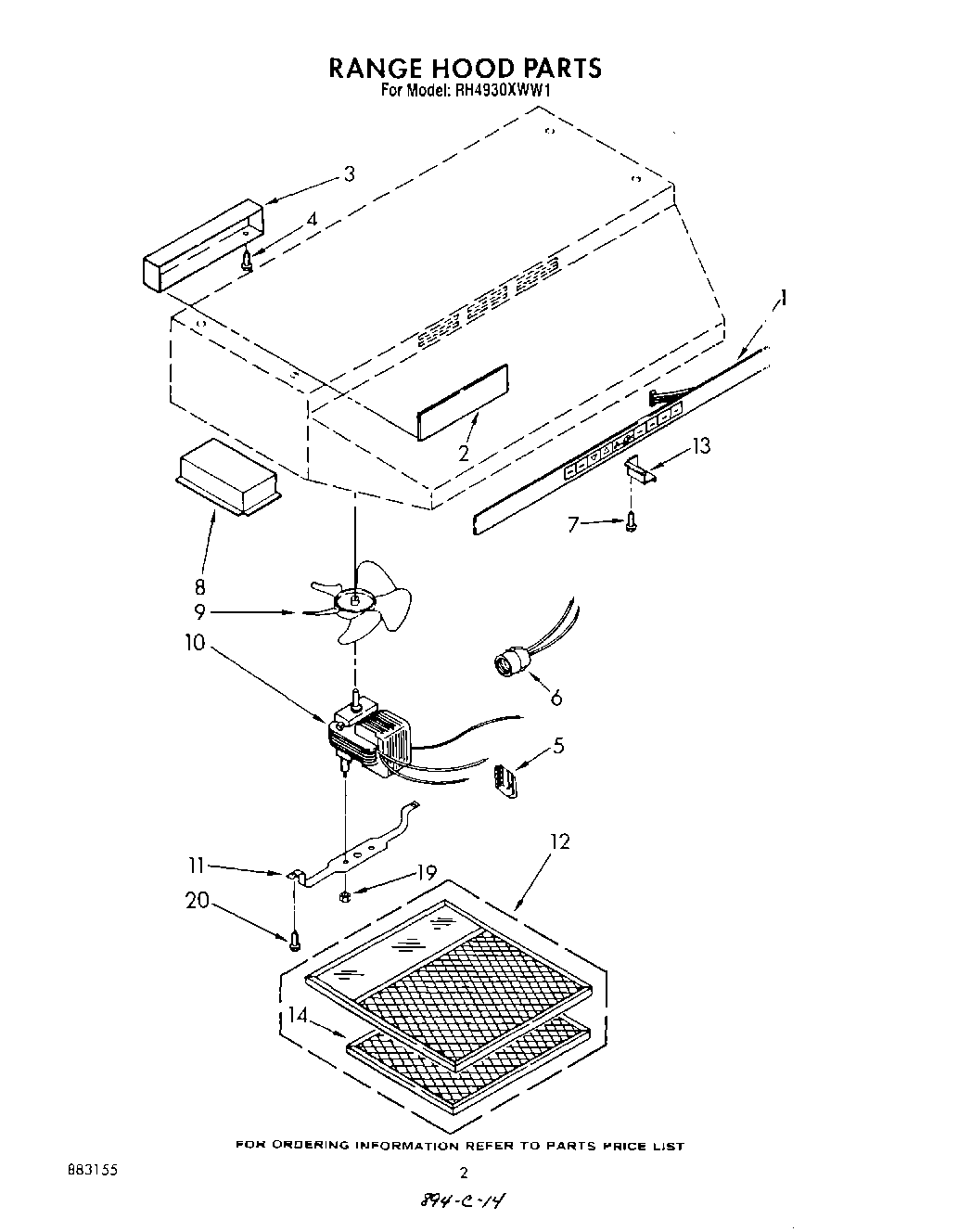

RH4930XWW1 02 – SECTION

RH4930XWW1 02 – SECTION

Written by

in

RH4930XWW1 02 – SECTION

Products

PositionProduct
Repair Parts List
Instructions Installation
Order Blank, Filter
1Switch, Membrane
2Microcomputer
3Cover, (Stainless Microcomputer)
3Cover, Switch (Almond)
3Cover, Switch (White)
4WP486579 Whirlpool Air Conditioner Screw
5Receptacle, Motor Wire
6Receptacle, Light
7WP489069 Whirlpool Compactor Screw
8Damper Assembly
9Blade, Fan
10Motor, 2-Speed
11Bracket, Motor
12WP8190232 Whirlpool Refrigerator Light Lens and Filter
13Cover, wiring (White)
13Cover, Wiring (Almond)
13Cover, Wiring (Stainless Steel)
14Pad, Charcoal (Replacement, Package Of 3)
19WP488130 Whirlpool Air Conditioner Nut
20Screw, 8 x 1/2 (4)
