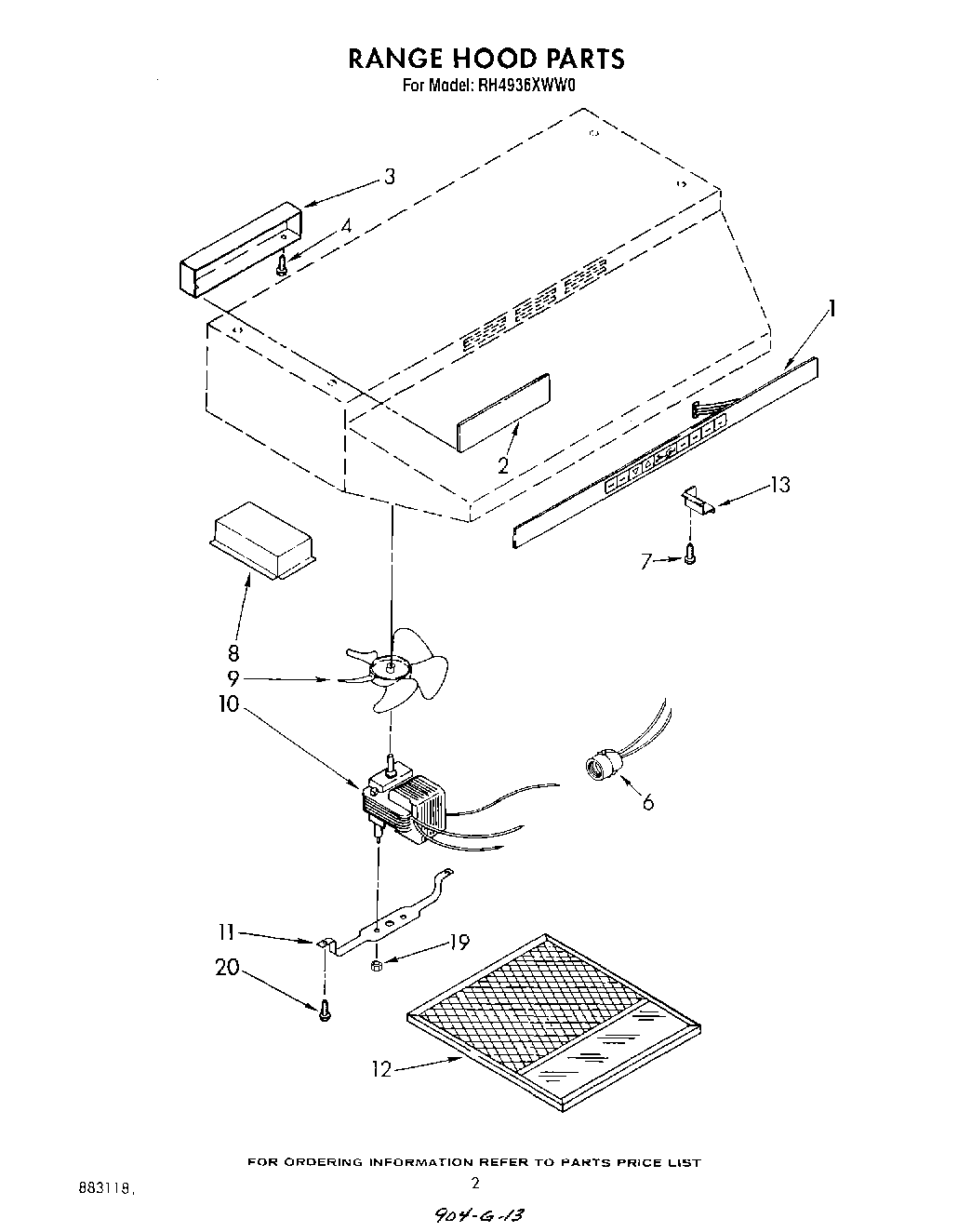

RH4936XWN0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation & Operating
	Order Blank, Filter
1	Switch Membrane
2	Microcomputer
3	Cover, (Stainless Microcomputer)
3	Cover, Switch (Almond)
3	Cover, Switch (White)
4	WP486579 Whirlpool Air Conditioner Screw
6	Receptacle, Light
7	WP489069 Whirlpool Compactor Screw
8	Damper Assembly
9	Blade, Fan
10	Motor, 2-Speed
11	Bracket, Motor
12	WP8190232 Whirlpool Refrigerator Light Lens and Filter
13	Cover, Wiring (Almond)
13	Cover, Wiring (Stainless Steel)
13	Cover, wiring (White)
19	WP488130 Whirlpool Air Conditioner Nut
20	Screw, 8 x 1/2 (4)
